DEMO9S08EL32AUTO
正常供应 -
S08EL/SL Demonstration Board.
- DEMO9S08EL32 Board
- DEMO9S08EL32 User Manual and Quick Start Guide
- S08/HC08 Support CD
- USB Cable
- CodeWarrior TM for S08
Demonstration board for the S08EL/SL device for Automotive applications

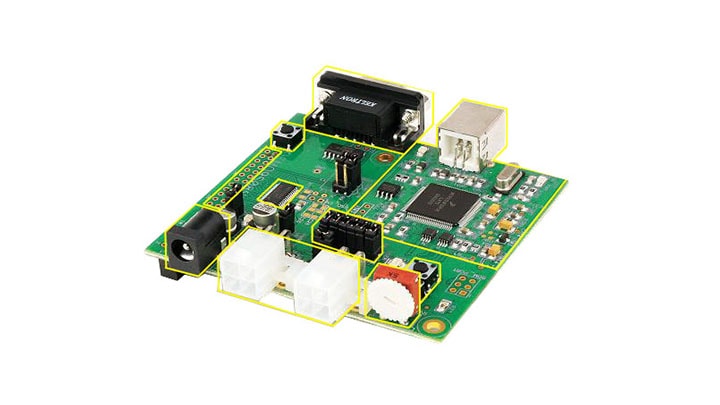

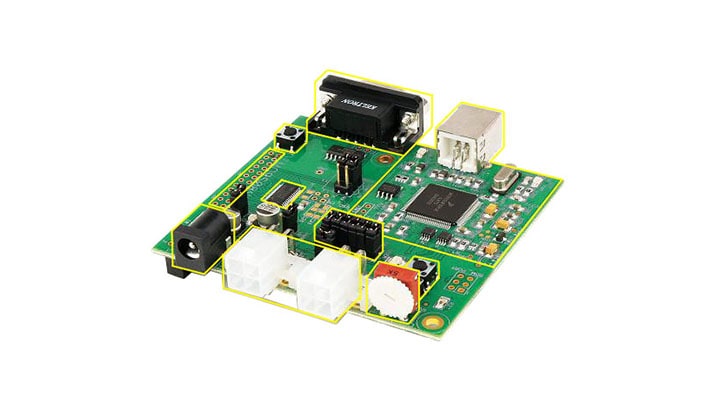

The DEMO9S08EL32 is a demonstration board for the 9S08EL and 9S08SL family of microcontrollers. Application development is quick and easy with the integrated USB-BDM, sample software tools, and examples. An optional BDM_PORT port is also provided to allow use of a BDM_PORT cable. Two, 40 pin connectors provide access to all I/O signals on the target MCU.
产品详情
特征
Microcontroller
- 32K Bytes Flash
- 1K Bytes RAM
- 512K Bytes EEPROM
- Internal Oscillator
MC9S08EL32, 28 TSSOP
User Components Provided
- 3 Push Switches; 2 User, 1 Reset
- 7 LED Indicators; 2 User, VDD, USB Power, USB Power Out
- 5K ohm POTs with LP Filter
- Light Sensor with LP Filter and Op Amp
Connectivity
- BDM_PORT header for BDM cable support (not installed)
- MCU_PORT socket headers for access to MCU I/O signals
- Optional Power from USB-BDM or MCU_PORT connector
- LIN PHY with 2, 4-pos Molex connectors
- Integrated P&E USB-BDM
- Power Input Selection Jumpers
- Power input from USB-BDM
- Power input from onboard regulator
- Power input from Connector J1
- Optional Power output through Connector J1
Power Management
- On-board +5 V regulator
Jumpers
- PWR_SEL
- VX_EN
- USER_EN
- COM_SEL
Connectors
- 40-pin MCU I/O Connector
- 2.0 mm Barrel Connector
- BDM_PORT (not installed)
- USB Connector
- DB9 Connector
