8位通用AW60/48/32/16 MCU

S08AW
正常供应

MC9S08AW60、MC9S08AW48、MC9S08AW32和MC9S08AW16是低成本、高性能HCS08系列8位微控制器(MCU)的成员。这个系列中的所有MCU都采用增强型S08内核，并具有各种模块、存储器大小、存储器和封装类型。MC9S08AW微控制器用于工业控制和汽车两个行业。

产品详情

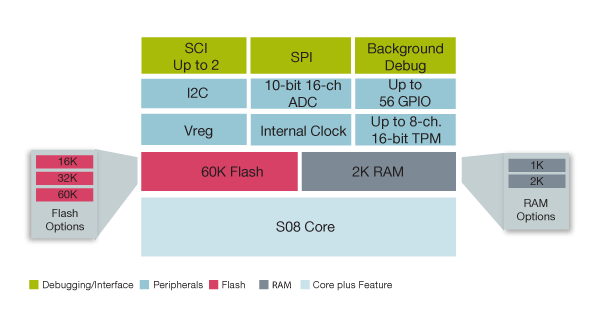

框图

S08AW Microcontroller Block Diagram

S08AW Microcontroller Block Diagram
获取框图PDF

特征

8位HCS08 CPU内核

  • 8位HCS08 CPU内核
    • 20 MHz总线频率时，可在2.7V的低压下实现50 ns最小指令周期时间
  • 优化过的C语言架构，带乘法和除法指令
  • 电源模式可选择
    • 支持多达32个中断/复位源，可以提高软件的灵活性，实现更大的优化。
    • (可选)使用内部定时器从停止2或停止3模式自动唤醒，通常只需要300 nA的额外电流

片上调试接口

  • 单线后台调试模式
  • 片上跟踪缓冲器，带有9个灵活的触发模式和多个硬件断点
  • 非侵入式仿真

集成第三代闪存

  • 应用中可重编程
  • 自定时，快速编程
    • 可以在20 μs内设定8个位
    • 快速闪存页面擦除
      • 20 ms (512字节)
  • 最低10K次写入/擦除操作，一般为100K次
  • 数据可以保存最少15年，一般为100年
  • 内部产生编程/擦除电压
  • 精细闪存操作精度 — 512B闪存擦除/1B闪存程序
  • 灵活的块保护和增强的安全性
  • 单电源编程/擦除
  • 在整个工作电压和温度范围内均可进行读取/编程/擦除操作

内部时钟发生器

  • 可编程锁频环(FLL)产生8 MHz至40 MHz的频率(总线频率高达20 MHz)
  • 后置FLL分频器实现总线频率8分频
  • 可微调，带温度和电压补偿
  • 提供多种时钟源选择和应用中时钟切换
    • 32 kHz至16 MHz外部晶振/谐振器参考源
    • 内部时钟发生器
    • 外部时钟

10位模数转换器(ADC)

  • 16通道ADC
  • 10位单次转换时间仅为2.5µs

带8个可编程通道的定时器

  • 2通道和6通道16位定时器系统
  • 每个通道可设置用于
    • 捕捉输入、比较输出或缓冲脉宽调制器 (PWM)
    • PWM可以边沿或中心对齐
  • 16位自由运行或向上/向下计数(CPWM)

功能全面的串行通信

  • 两个异步SCI
    • 灵活的基于13位模块的波特率发生器
    • 双缓冲的接收和发送
    • 兼容LIN
  • 同步SPI
    • 最高5 Mbps
  • I²C总线
    • 多主设备运行
    • 256个时钟选项

系统保护

  • 可选择低电压检测/复位
  • 增强型低电压报警
  • COP看门狗定时器

56个输入/输出(I/O)线路

  • 可设置上拉电阻
  • 高电流驱动器
  • 8个键盘中断
  • 控制上升/下降时间，最大限度地减少噪声

产品长期供货计划
