带敏捷I/O功能的22位SPI I/O扩展器

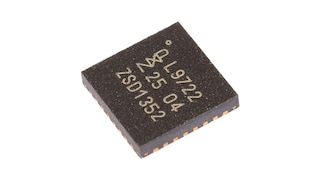

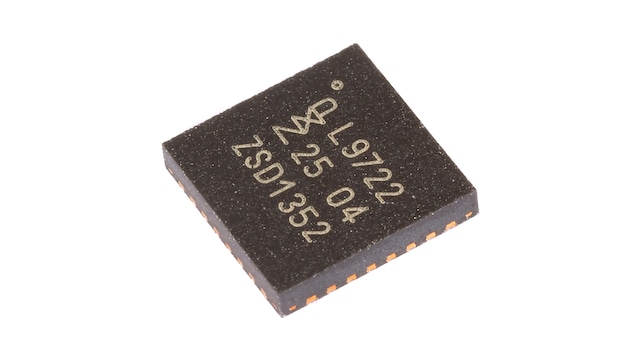

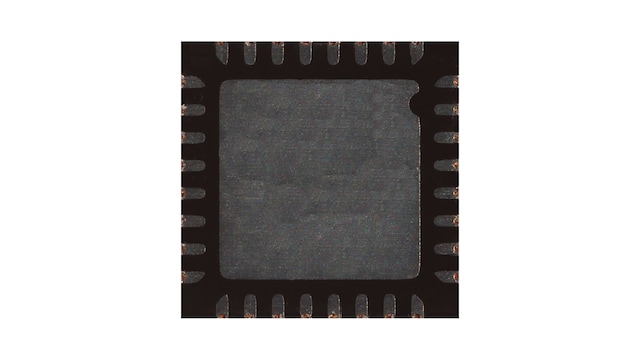

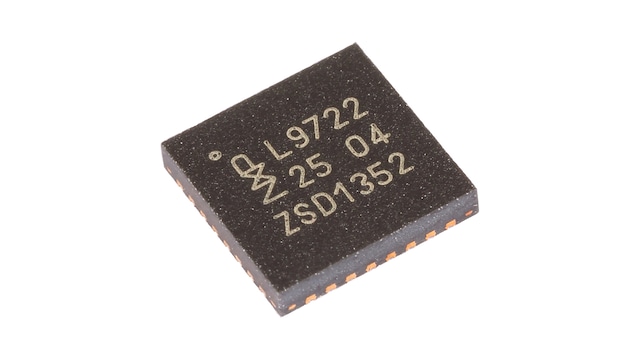

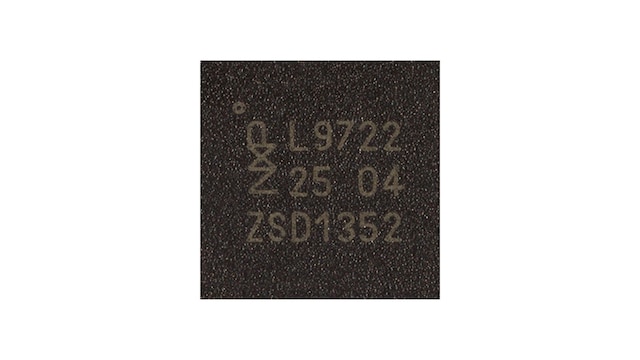

PCAL9722
正常供应

滚动图片以放大

PCAL9722是一款具有SPI接口的超低压22位I/O扩展器和转换器，适用于要求将输入和输出扩展到现有微处理器并缩短设计周期的各种应用。集成敏捷I/O功能，进一步实现灵活且可配置的设计，包括推挽或开漏输出、中断状态寄存器、4种不同的输出驱动强度、上拉和下拉电阻的使能和电阻选择器以及中断屏蔽选项。

框图

PCAL9722

PCAL9722 Block Diagram
获取框图PDF

特性

高通道数扩展

  • 首款采用SPI的22位通用IO

高度可配置的敏捷I/O功能

  • 推挽或开漏输出
  • 中断状态寄存器
  • 4种不同的输出驱动强度
  • 上拉和下拉电阻的使能和电阻选择器
  • 中断屏蔽选项

稳健的特性

  • 施密特触发动作允许缓慢的输入转换和更好的切换噪声抗性
  • 5.5V容限电压的I/O端口和SPI总线引脚
  • SPI输入端提供噪音滤波器
  • 闭锁性能超过JESD 78 Class II规定的100mA
  • ESD保护超过JESD 22

购买/参数

2 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

预算报价（不含税）

状态

Number of bits

输入电压[最小到最大]（V）

接口

Operating Temperature (Min-Max) (℃)

封装类型

Output Mode

Max Sink Current per bit (mA)

Source Current per bit (mA)

Interrupt

Reset input pin

Frequency (Max) (kHz)

PCAL9722HN
数据手册
1K @ CNY4.16

正常供应

22

1.1 to 5.5

SPI

-40 to 85

HVQFN32

open-drain, totem pole

25

10

Y

Y

5000

PCAL9722HN/Q900
数据手册
1K @ CNY4.95

正常供应

22

1.1 to 5.5

SPI

-40 to 125

HVQFN32

open-drain, totem pole

25

10

Y

Y

5000
