带有中断的8位I2C总线和SMBus低功率I/O端口

PCA9534 正常供应

PCA9534是一款16引脚CMOS器件，为I²C总线/SMBus应用提供8位通用并行输入/输出(GPIO)扩展且开发用于增强NXP Semiconductors系列的I²C总线I/O扩展器。改进内容包括更高的驱动能力、5 V I/O容限、更低的供电电流、独立的I/O配置、400 kHz时钟频率和更小的封装。ACPI电源开关、传感器、按钮、LED、风扇等需要额外的I/O时，I/O扩展器提供简易的解决方案。

PCA9534由8位配置寄存器（输入或输出选择）、8位输入寄存器、8位输出寄存器和8位极性反转寄存器（高电平有效或低电平有效操作）组成。系统主器件可通过写入I/O配置位将I/O用作输入或输出。每个输入或输出的数据保留在对应的输入或输出寄存器中。通过极性反转寄存器可反转输入端口寄存器的极性。系统主器件可读取所有寄存器。虽然引脚对引脚和I²C总线地址都兼容PCF8574系列，但是因增强功能而需要软件更改，这在应用注意事项AN469中讨论。

除取消I/O保持低电平时极大降低功耗的内部I/O上拉电阻外，PCA9534与PCA9554完全相同。

当任何输入状态与其对应的输入端口寄存器状态不同时，会激活PCA9534开漏中断输出并用于通知系统主器件输入状态已改变。上电复位会将寄存器设为其默认值并初始化器件状态机。

三个硬件引脚(A0、A1、A2)会改变固定I²C总线地址，因而允许最多八个器件共同一个I²C总线/SMBus。

查看产品图片

产品详情

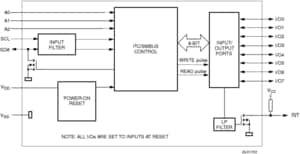

框图

Block diagram: PCA9534BS, PCA9534BS3, PCA9534D, PCA9534PW

获取框图PDF

特征

  • 8位I²C总线GPIO
  • 电源电压工作范围：2.3 V至5.5 V
  • I/O可耐受5 V电压
  • 极性反转寄存器
  • 低电平有效的中断输出
  • 低待机电流
  • SCL/SDA输入上有噪音滤波器
  • 上电时没有脉冲干扰
  • 内部上电复位
  • 默认为8个输入的8个I/O引脚
  • 时钟频率：0 Hz至400 kHz
  • ESD保护：按JESD22-A114超过2000 V HBM，按JESD22-A115超过200 V MM，按JESD22-C101超过1000 V CDM
  • 根据JEDEC标准JESD78完成超过100 mA的锁定测试
  • 提供四种不同封装：SO16、TSSOP16和HVQFN16（4 x 4 x 0.85 mm和3 x 3 x 0.85 mm版本）

购买/参数

4 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

No of bits

VDD [min]

VDD [max]

Over volt tolerant

No of supplies

Standby current [typ] (µA)

Max Sink Current per bit (mA)

Max Sink Current, per package (mA)

Source Current per bit (mA)

Interrupt output pin

Output mode

Input mode: invert option

I2C-bus (kHz)

Footprint body and leads

封装类型

Operating Temperature (°C)

No of Addresses

PCA9534BS
数据手册

8

2.3

5.5

Y

1

0.25

25

100

10

Y

Totem pole

Y

400

16.81

HVQFN16

-40~85

8

PCA9534BS3
数据手册

8

2.3

5.5

Y

1

0.25

25

100

10

Y

Totem pole

Y

400

9.61

HVQFN16

-40~85

8

PCA9534D
数据手册

8

2.3

5.5

Y

1

0.25

25

100

10

Y

Totem pole

Y

400

111.83

SO16

-40~85

8

PCA9534PW
数据手册

8

2.3

5.5

Y

1

0.25

25

100

10

Y

Totem pole

Y

400

33.66

TSSOP16

-40~85

8
