带LIN的基于HCS12的集成式继电器驱动微控制器(MCU)

MM912_634 正常供应

MM912G634(48kB)和MM912H634(64kB)是集成式单一封装解决方案，包含一个HCS12 MCU和一个SMARTMOS®模拟控制IC。模拟芯片通过芯片对芯片(D2D)接口进行控制，它集成了系统基础芯片和针对特定应用的功能，包括LIN收发器。

优势包括：

  • 在同一个封装解决方案中集成了MCU和模拟功能
  • 完整的LIN解决方案
  • 使用继电器和电流感测功能简化对大电流电机的控制
  • 占用更少的空间，提高了可靠性
  • 输出级有全面的保护
  • 经济型通用解决方案，仅需很少组件
  • 灵活的低功耗模式
  • 带电池反接保护的电压感测

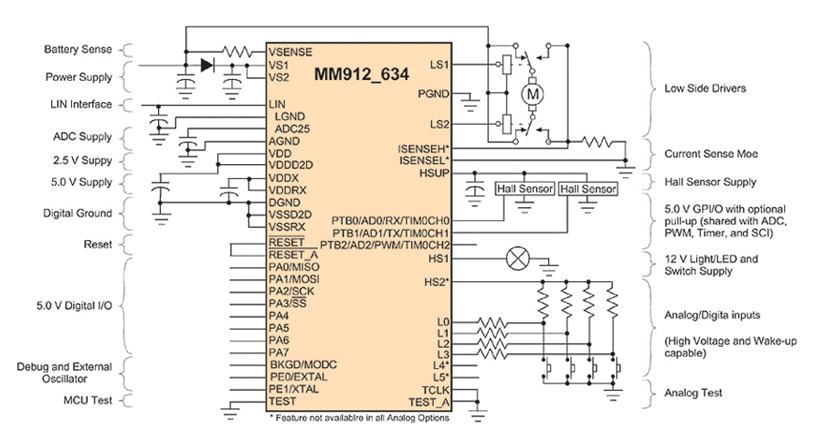

查看内部电路图

更多

查看产品图片

框图

HCS12

HCS12 Block Diagram
获取框图PDF

特性

CPU内核

  • 16位S12 CPU，64/48/32kB程序闪存
  • 4/2/0kB数据闪存
  • 6/2/2kB RAM
  • 后台调试(BDM)与调试模块(DBG)
  • 16位，4通道——定时器模块(TIM16B4C)
  • 芯片对芯片总线接口，提供透明的存储器映射

标准I/O

  • 6或10个数字MCU通用IO，与SPI共享
  • 10位，15通道——模数转换器(ADC)
  • 8位，双通道——脉宽调制模块(PWM)

针对特定应用的功能

  • 片上振荡器和两个独立的看门狗
  • 带集成SCI的LIN 2.1物理层接口
  • 6个高压/唤醒输入(L5…0)
  • 3个低压通用IO(PB2…0)
  • 低功耗模式，具备循环检测和强制唤醒功能
  • 两个受保护的低边输出，用于驱动电感负载
  • 两个受保护的高边输出
  • 霍尔传感器电源与集成稳压器
  • 带电池反接保护的电压感测模块
  • 芯片温度传感器
  • 增益可选的电流感测模块
