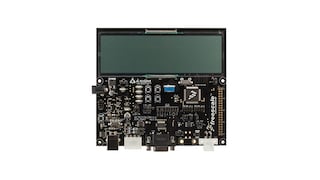

带CAN的S12HY可扩展高性价比仪表板解决方案微控制器(MCU)

S12HY 正常供应

S12HY系列CAN MCU集16位性能和许多定制功能如LCD驱动和步进电机驱动等于一身，适用于高性价比的仪表板应用，帮助您的设计适合新兴汽车市场。

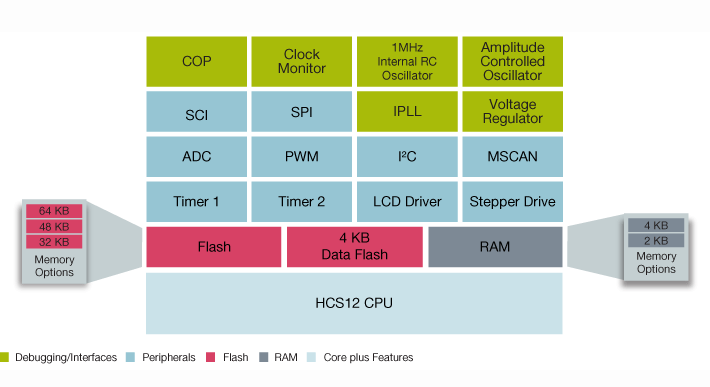

框图

S12HY Microcontroller Block Diagram

S12HY Microcontroller Block Diagram
获取框图PDF

特征

  • HCS12 CPU内核，32MHz总线频率
  • 带有ECC功能的64 KB片上闪存
  • 带有ECC的4 KB DataFlash®
  • 4 KB片上SRAM
  • LCD驱动器，最高可配置40 x 4段
  • 带有4个驱动器的步进电机控制器
  • 带有内部滤波器的锁相环(IPLL)倍频器
  • 4-16 MHz带振幅控制的皮尔斯振荡器
  • 1 MHz内置阻容(RC)振荡器
  • 两个支持输入/输出通道的定时器模块(TIM1和TIM2)，可提供一系列16位输入捕捉、输出比较、计数器和脉冲累加器功能
  • 带有8个8位通道的脉宽调制(PWM)模块
  • 8通道10位分辨率逐次接近模数转换器(ADC)
  • 串行外设接口(SPI)模块
  • 支持LIN 2.0、2.1和SAE J2602通信的串行通信接口(SCI)模块，
  • 一个内置集成电路(I²C)模块
  • 一个可多重扩展的控制器区域网络(MSCAN)模块(支持CAN协议2.0 A/B)
  • 片上稳压器(Vreg)调节输入电源和所有内部电压
  • 自主周期性中断(API)
  • 本产品包含在恩智浦产品长期供货计划中，自推出后至少保证15年供货
