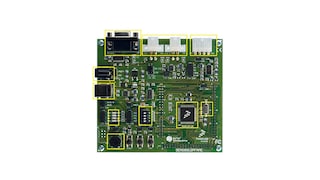

S12P汽车和工业微控制器(MCU)

S12P 正常供应

S12P系列CAN微控制器(MCU)以8位MCU的价格提供16位MCU的出色性能，适用于车身控制应用。

S12P系列填补了8位与16位汽车CAN MCU之间的空白，可用作恩智浦16位系列的入门产品。

S12P与S12XS系列兼容，这样客户可根据其应用选择更小规模的存储器和功能集。

该系列包括四种具有不同程序和数据闪存容量的器件，带有ECC、RAM、MSCAN模块，有48-80引脚封装可选。

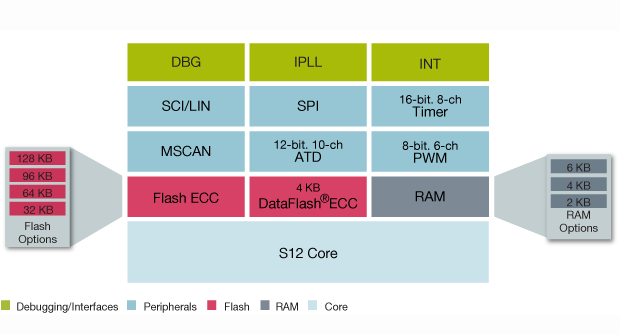

框图

S12P Microcontroller Block Diagram

S12P Microcontroller Block Diagram
获取框图PDF

特征

  • S12内核，32 MHz总线
  • 带有ECC功能的128 KB片上闪存
  • 高达6 KB RAM
  • 带有ECC的4 KB DataFlash®
  • 1个支持CAN协议2.0 A/B的MSCAN模块
  • 1个支持SCI的LIN通信
  • 串行外设接口(SPI)
  • 支持输入捕捉、输出比较、计数器和脉冲累加器功能的8通道16位定时器
  • 10通道12位分辨率逐次接近模数转换器(ADC)
  • 带有6个8 位通道的脉宽调制(PWM)模块
  • 带有内部滤波器的锁相环(IPLL)倍频器
  • 4-16 MHz带振幅控制的皮尔斯振荡器
  • 1 MHz内置阻容(RC)振荡器
  • 自主周期性中断(API)
  • 本产品包含在恩智浦产品长期供货计划中，自推出后至少保证15年供货

购买/参数

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
