S12Q汽车和工业微控制器(MCU)

S12Q
正常供应

MC9S12Q系列是一款汽车MCU，带有128 KB嵌入式闪存，可以为各种全新的成本敏感和空间受限制的应用带来16位标准S12内核的强大性能和灵活性。

该系列的所有成员都具有完整的16位数据通路吞吐能力。

由于包含PLL电路，因此可以根据运行要求调整功耗和性能。

除每个模块上提供的I/O端口外，还提供10个专用I/O端口位，具备从停止或等待模式唤醒的功能。

产品详情

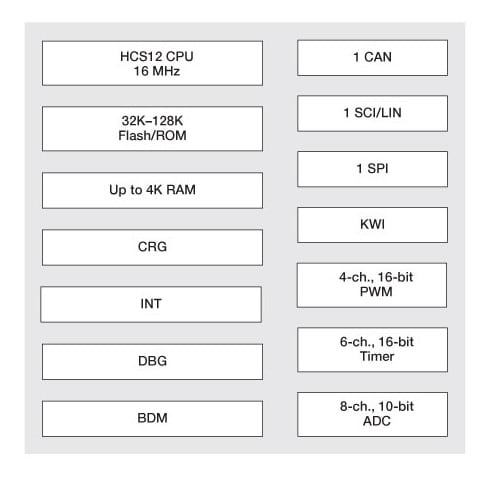

框图

S12Q Microcontroller Block Diagram

S12Q Microcontroller Block Diagram
获取框图PDF

特征

  • 16位中央处理器(CPU 12)
  • 高达128 KB闪存(或ROM)
  • 高达4 KB RAM
  • 1个异步串行通信接口(SCI)
  • 一个串行外设接口(SPI)
  • 一个6通道16位定时器模块(TIM)
  • 一个4通道8位脉宽调制器(PWM)
  • 一个8通道10位模数转换器(ADC)
