MCF5235评估板

M523xEVB 正常供应

滚动图片以放大

The ColdFire® M523xEVB evaluation board is intended to provide a mechanism for easy evaluation of the NXP® MCF523x family of ColdFire microprocessors and to facilitate hardware and software development. EVB可以用于测试程序、工具或电路，而无需自己开发一套完整的微处理器系统来进行这种测试。

该评估板的核心是MCF5235。MCF5235具备所有其他MCF523x系列成员的全部功能，因此可以使用MCF5235器件来进行充分模拟。

产品详情

支持的器件

处理器和微控制器

ColdFire® V2处理器

  • MCF523X: 集成式V2 ColdFire®微处理器

特征

微控制器支持

  • MCF5235微处理器(150 MHz最大内核频率)

开发端口

  • BDM调试开发连接器

存储器

  • 32 Mbyte SDRAM
  • 2 M byte external Page Mode Flash
  • 10/100以太网PHY和RJ45连接器
  • 两个CAN收发器和DB-9连接器
  • 两个串行端口和DB-9连接器
  • 通过4个60引脚的扩展连接器来提供所有内部模块信号连接器
  • 串行接口的分线接头(eTPU、I2C、QSPI、通用IO)
  • ADC接口
  • 芯片配置功能
  • 多个时钟选项
  • 调试监控器
  • 带电源接入装置的电源端口
  • Power Requirement: 6 to 14 V DC input
  • Power output: 5 V, 3.3 V, and 1.5 V regulated supplies

购买选项

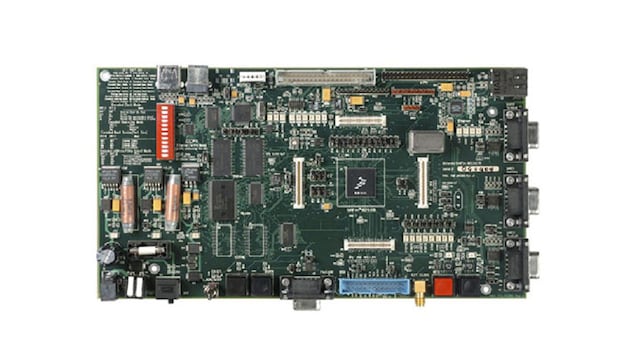

M523XEVBE-Image

点击展开

  • M523XEVBE
    正常供应

  • EVALUATION BOARD 523X.

  • 数量为 1
从分销商处购买
