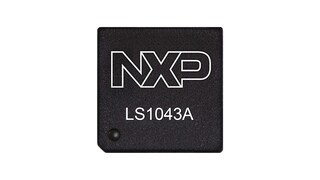

Layerscape® 1043A和1023A处理器

LS1043A
正常供应
恩智浦优先级支持 - 帮助您更快地进入市场

点击播放视频

LS1043A处理器是恩智浦推出的第一款面向嵌入式网络的四核64位Arm®处理器。LS1023A（双核版本）和LS1043A（四核版本）可通过支持无风扇设计的灵活I/O封装，提供超过10Gbps的性能。这款SoC是专为小规格网络、工业和汽车应用而打造的解决方案，针对经济型低端PCB优化了物料成本(BOM)，降低了电源成本，采用单时钟设计。

全新0.9V版LS1043A和LS1023A能够为无线LAN和以太网供电系统进一步降低能耗。全新的23x23封装方式，支持引脚兼容设计，可扩展至LS1046A（四核A72处理器）或LS1088A（十核A53处理器）。

LS1043A能够提升双核32位Arm产品的性能，并且延续了QorIQ系列一贯的I/O灵活性，集成了QUICC Engine®，继续提供对HDLC、TDM或Profibus的无缝支持。

Layerscape处理器是恩智浦EdgeVerse™边缘计算 平台的一部分。

框图

LS1043A BD

LS1043A Processors Block Diagram
获取框图PDF

特性

内核复合体

  • 四核（LS1043A）或双核（LS1023A）Arm® Cortex®-A53 64位内核
  • 1GHz至1.6GHz
  • 32/32 I/D缓存KB L1和1MB L2缓存

网络元件

  • 多达7个1xGbE或1x10GbE和5个1xGbE
  • 四通道SerDes，高达10GHz，控制器之间的多路复用，支持：
    • 3个第二代PCI Express® 接口
    • SATA 3.0接口
    • uQUICC Engine

加速器和存储器控制

  • DPAA解析、分类和分发引擎
  • 内置安全引擎
  • DDR 3L/4

基本外设和互连

  • 3个带PHY的USB 3.0接口
  • QuadSPI
  • IFC闪存
  • 四通道I²C
  • 信任区

其他特性

  • QorIQ平台可信架构
  • 面向硬件增强虚拟化的Arm SMMU
  • 面向超低功耗设计的0.9V选项
  • 23x23封装方式，支持引脚兼容性能扩展
