LX2160A, LX2120A, LX2080A

点击播放视频

LX2160A多核处理器是Layerscape系列中性能最高的成员，它结合了低功耗的FinFET工艺技术、16个Arm^® Cortex^®-A72内核以及针对L2/3包处理、安全分流、强大的流量管理和服务质量优化的数据通路加速。

这款先进的16核64位Arm处理器非常适合5G数据包处理、网络功能虚拟化（NFV）、白盒交换、高处理工业计算机、机器学习和智能网络接口卡等应用。高集成度带来了显著的性能优势，例如100GbE、硬件L2交换、具有100Gbps解压/压缩和50Gbps SEC的DPAA2，以及多个PCIe Gen3.0和SATA控制器。

对于边缘计算，该处理器具有强大的数据包分流功能和以太网控制器，可提供出色的计算性能。在一台设备中，您可以进行高端、高速通信，并使用低速外设（例如传感器），并具有处理所有接收到的信息并对其采取行动的计算能力。

Layerscape处理器是恩智浦EdgeVerse™边缘计算平台的一部分。

数据手册

参考手册

产品详情

框图

Layerscape LX2160A结构框图

获取框图PDF

特性

16个Cortex-A72 CPU内核，运行频率高达2.2GHz
18MB缓存/片上存储器
24个SerDes通道，运行频率高达25GHz
最多16个以太网端口
所支持的以太网速率包括每秒1、2.5、10、25、40、50和100GB。
114Gbps L2以太网交换机
多达24个PCIe Gen3通道，支持8倍宽的端口
50Gbps安全加速器
100Gbps数据压缩/解压缩引擎

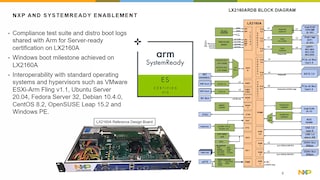

经过验证，符合Arm SystemReady ES 标准，可确保与标准操作系统和管理程序的互操作性。

Layerscape LX2系列对照表

	LX2160A	LX2120A	LX2080A
内核	16	12	8
L2缓存	8MB	6MB	8MB
SerDes	24
PCIe	多达6个Gen3
DDR	两个DDR4，3200MT/s，256GB容量
Plat缓存+PEB	10MB
WRIOP	16个同时存在的MAC；高达16x1GE、10x1/2.5/10GE、6x25GE或2x40/50/100GE的组合；L2交换高达114Gbps
SEC	高达50Gbps
DCE	高达100Gbps
封装	40x40mm，1517个引脚

购买/参数

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

设计资源

设计文件

收到完整的详细信息。 请参阅产品足迹及更多信息电子CAD文件.

硬件

快速参考恩智浦板类型.

1-5 / 6 硬件

评估板和开发板
QorIQ LX2160A开发板亮点

LX2160A-RDB
完整解决方案
BlueBox 3.0汽车高性能计算（AHPC）开发平台

BlueBox
开发硬件
Layerscape Access LA12xx Development System

LA1224-RDB
其他可用硬件. 查看我们的精选合作伙伴解决方案.
仿真器、探测器、编程器
面向CodeWarrior TAP的QorIQ LS处理器调试器接头

CWH-CTP-CTX10-YE
仿真器、探测器、编程器
CodeWarrior^® TAP

CW_TAP
评估板和开发板
QorIQ^® LS2088A参考设计板

LS2088A-RDB

展开

1-5 / 18 硬件

嵌入式板解决方案
miriac® MPX-LX2160A

NXP's flagship processor, the LX2160A, offers 16 Arm® Cortex®-A72 cores at 2.2GHz. In addition, the LX2160A offers 24 SerDes lanes and up to 128 GB DDR4 RAM driven by 2x ...

By MicroSys Electronics GmbH Gold 合作伙伴
嵌入式板解决方案
SolidWAN Single LX2160

SolidWAN Single LX2160A is complete hardware solution, based on NXP LX2160A processor populated on SolidRun COM LX2160A, addressing Enterprise and Edge Data Centers SD-WA...

By SolidRun Ltd Gold 合作伙伴
嵌入式板解决方案
miriac® AIP-LX2160A

High-performance embedded AI platform First application-ready building block based on the NXP® QorIQ® Layerscape® LX2160A processor Up to 5 parallel Hailo-8™ AI processor...

By MicroSys Electronics GmbH Gold 合作伙伴
嵌入式板解决方案
MPMC-932x 3U VPX Modular Computer System

The MPMC-932x rugged 3U 2-slot integrated subsystem provides high functional density in a small package. Typical MPMC-932x system applications include mission computing, ...

By Curtiss-Wright Defense Solutions Gold 合作伙伴
嵌入式板解决方案
5G CU/DU Board

5G Distributed CU/DU acceleration board

By Hangzhou Honglingtong Information Technology Co.Ltd. Gold 合作伙伴
嵌入式板解决方案
SolidWAN LX2162

SolidWAN LX2162A is complete hardware solution, based on NXP LX2162A processor populated on SolidRun SOM LX2162A, addressing Office/Branch SD-WAN solution with a wide arr...

By SolidRun Ltd Gold 合作伙伴
嵌入式板解决方案
V3-1708 3U VPX LX2160A Safety-Certifiable SBC

Available in a safety-certifiable variant, the V3-1708, this commercial off-the-shelf (COTS) 3U OpenVPX processor card is designed to reduce the time, cost, and risk asso...

By Curtiss-Wright Defense Solutions Gold 合作伙伴
嵌入式板解决方案
LX2 COM Express type 7

SolidRun’s CEx7 LX2160A Computer-on-Module based on the COM Express type 7 form factor was designed to provide a robust and modular networking computing platform. The CEx...

By SolidRun Ltd Gold 合作伙伴
嵌入式板解决方案
SolidWAN LX2160 Dual

SolidWAN Dual LX2160A is complete hardware solution, based on dual NXP LX2160A processor populated on dual SolidRun COM LX2160A, addressing Enterprise and Edge Data Cente...

By SolidRun Ltd Gold 合作伙伴
嵌入式板解决方案
TQMLX2160A

Embedded Cortex®-A72 module based on LX2160 with enhanced data and networking performance.

By TQ-Systems GmbH Platinum 合作伙伴
嵌入式板解决方案
VPX3-1708 3U VPX LX2160A SBC

The VPX3-1708 3U OpenVPX SBC features NXP's LX2160A Arm Cortex A72 16-core 64-bit processor for high-performance, SWaP-optimized processing with Trusted Computing capabil...

By Curtiss-Wright Defense Solutions Gold 合作伙伴
嵌入式板解决方案
5G Integrated BS Board

5G Integrated BS board, with 10G SFP+ connecting 5GC, with AD/DA on board, with CFR/DPD on board, with SMP connected to external PA/LNA.

By Hangzhou Honglingtong Information Technology Co.Ltd. Gold 合作伙伴
嵌入式板解决方案
MPMC-935x Rugged 3U 5-slot Modular Computer System

The MPMC-935x 3U VPX 5-slot systems are rugged processing systems that can be readily configured to meet the needs of any military or aerospace requirements, from lab to ...

By Curtiss-Wright Defense Solutions Gold 合作伙伴
模块
5G Baseband Unit

ADU2010 is a low-power 5G baseband unit based on NXP SoC, which supports the operator’s DL-prioritized frame structure and large uplink frame structure required for priva...

By Chengdu ArrayComm Wireless Technologies Co., Ltd. Gold 合作伙伴
模块
5G Distributed CU/DU

5G Distributed CU/DU, 1U height, standard 19'' width, with four 4*4 cells in maximum capacity.

By Hangzhou Honglingtong Information Technology Co.Ltd. Gold 合作伙伴
模块
Outdoor Integrated Base Station

The outdoor integrated base station is built based on LX2160A , LA1201 and FPGA.

By Chengdu ArrayComm Wireless Technologies Co., Ltd. Gold 合作伙伴
模块
5G Baseband PCIe Card

AVDU2010 is a 5G baseband PCIe card based on NXP SoC. By plugging the card into a COTS server, customers can instantly obtain the 5G baseband capability.

By Chengdu ArrayComm Wireless Technologies Co., Ltd. Gold 合作伙伴
模块
5G Integrated BS

5G Integrated BS, <17L, with one 4*4 cell , 4*10W for 3.5GHz, and 4*5W for 4.9GHz

By Hangzhou Honglingtong Information Technology Co.Ltd. Gold 合作伙伴
