面向Power Architecture®的S32 Design Studio

S32DS-PA

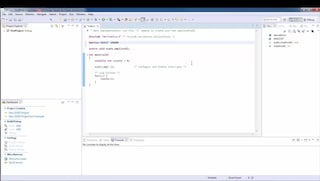

Write Your Own Program DEVKIT on the MPC5744P Low-Cost Development Board

点击播放视频

S32 Design Studio for Power Architecture®是一套附送的集成开发环境，面向汽车和基于Power Architecture的超可靠微控制器，为您的设计提供编辑、编译和调试功能。

S32DS for Power Architecture为设计人员提供了一个简单的开发工具，它基于包括Eclipse IDE、GNU编译器集合(GCC)和GNU调试器(GDB)在内的开源软件，没有代码大小的限制。

恩智浦软件与S32 Design Studio IDE一起提供全面的支持环境，可加快开发速度。

框图

S32 Design Studio for Power Architecure

S32 Design Studio for Power Architecure
获取框图PDF

特征

  • 带有GCC Compiler 4.9的恩智浦GNU工具链，适用于e200处理器
  • 包括NewLib、NewLib Nano、EWL和EWL Nano库
  • 集成的恩智浦工具：
    • FreeMASTER - 数据监测和可视化工具
    • MPC56xx和MPC57xx MCU的数学与电机控制库
    • Processor Expert (所选的MCU) – 引脚、时钟、外设和实时操作系统配置
  • 集成的恩智浦软件：
    • SDK支持选定的MCU - 包括生产质量、外设驱动和FreeRTOS
    • 创建SPT算法的图形工具
  • 外设寄存器视图和专用寄存器视图
  • 新项目向导创建裸机或SDK项目
  • 示例项目
  • 针对FreeRTOS、eCOS和OSEK的内核感知调试
  • 支持Green Hills和Diab编译器
  • 支持 iSystem、Lauterbach、P&E和PLS调试器 – 调试工具供应商提供的插件
  • 内置GDB调试器接口在Eclipse中使用或从命令行来驱动，支持P&E Multilink/Cyclone (带P&E GDB服务器)调试接口硬件
  • 支持汇编语言、C和C++
  • 支持将AUTOSAR MCAL配置导入到自定义SDK
  • Eclipse C/C++ 开发工具(CDT)框架
  • 支持来自Eclipse生态合作体系或合作伙伴的Eclipse插件
  • 支持的主机操作系统(OS)：
    • Microsoft Windows® 7/8/10 (32位和64位)
    • Ubuntu 16.04 (64位)
    • Debian 8 (64位)
    • CentOS 7 (64位)
  • S32DS扩展和更新工具，用于自动查找和按需安装软件包，增加对设备和软件的支持
