MPC5775B BMS和VCU参考设计

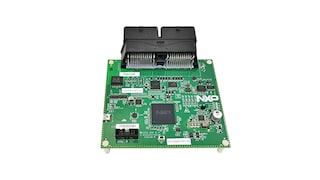

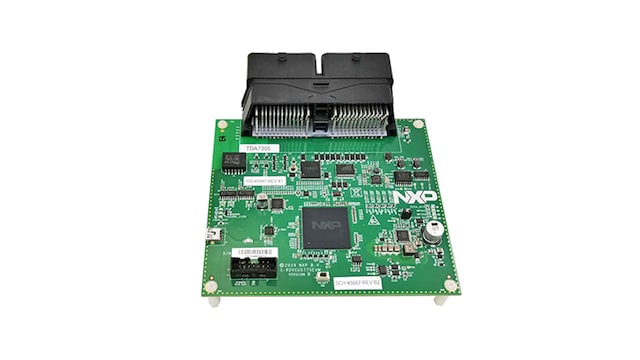

RDVCU5775EVM

滚动图片以放大

RDVCU5775EVM是一款开箱即用、概念经过验证和高性价比的参考设计，旨在集成电池管理系统(BMS)和汽车控制单元(VCU)高电压功能，并有动力系统直接连接到域控制器，支持ISO 26262 ASIL D级汽车应用。

RDVCU5775EVM基于32位Power Architecture® MPC5775B MCU、FS6523功能安全电源SBC和MC33664高速转换物理层(TPL)网络，支持MC3377x电池控制器EVB菊花链和CD1030 33通道多开关检测接口(MSDI)，电流可设置。

RDVCU5775EVM参考设计 – 简介

产品详情

框图

MPC5775B BMS和VCU参考设计 - 结构框图

MPC5775B BMS and VCU reference design - Block Diagram
获取框图PDF

Features

General

  • RDVCU5775EVM Features
  • target application
  • Combining BMS and VCU functions in one ECU
  • Supports dual TPL communication with daisy chain of BCC devices
  • Supports multiple input/output interfaces: MSDI, ADC, GPIO, LSD and HSD
  • Supports multiple communication interfaces: ETH, CAN(FD), LIN and UART
  • Provides two demo application projects for S32SDK and AUTOSAR MCAL
  • GUI tool is provided to easily monitor the system via CAN
  • Provide boot loader based on CAN protocol and UDS.
  • MPC5775B microcontroller (416 MAPBGA soldered)
  • MC33FS6523CAE System Basis Chip (SBC) for on-board power and a CAN physical layer
  • MC33664 Isolated Transceiver Supports Daisy Chaining of BCC Devices MC33771 Communication
  • 1 100BASE-T1 automotive Ethernet interface TJA1101
  • 3 CAN interfaces: two are supported by the TJA1052 and TJA1145 CAN FD transceivers and the other is supported by the SBC.
  • 1 LIN interface MC33662BLEF
  • PCA85063A Automotive Tiny Real Time Clock/Calendar with Alarm and I²C Bus
  • 1Mbit Automotive External EEPROM with SPI Interface
  • Standard 14-pin JTAG debug connector
  • 12 V external DC power supply required
  • Main power regulation status LED + 2 user LEDs connected to GPIO for testing
  • 电池管理系统(BMS)
  • 汽车控制单元 (VCU)
  • 汽车动力控制器
  • 混合动力和电动汽车动力

购买选项

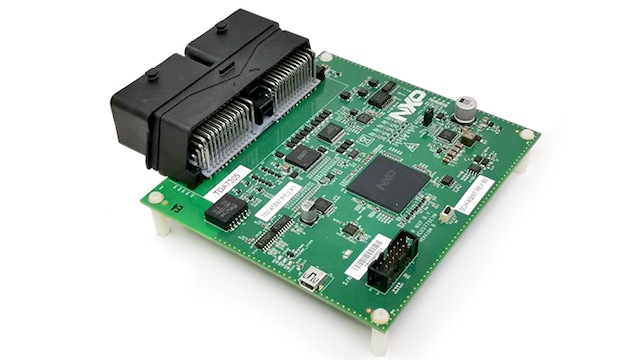

RDVCU5775EVM-Image

点击展开

  • RDVCU5775EVM
    正常供应

  • MPC5775B BMS and VCU Reference Design.

  • $420.00 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 4
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
