面向MPC5xxx MCU的通用定时器模块配置工具

GTM_CFG_TOOL
试生产

恩智浦通用定时器模块(GTM)配置工具可用来为含GTM IP的恩智浦MCU开发软件。借助恩智浦通用定时器模块(GTM)配置工具，用户可以通过基于Eclipse的GUI配置GTM，然后使用这些设置来自动生成GTM的初始化代码(在初始化时，CPU将运行该代码一次)。

GTM配置工具提供一个GUI，用于配置GTM中的各个寄存器集，其目的是支持专用定时器输入和输出信号，以帮助实现特定应用(例如动力总成4、5、6、8缸应用、变速箱和电机控制，包括角度时钟发生)。

让GTM配置工具帮助您节省时间，成为GTM IP领域的专家。

框图

选择框图:

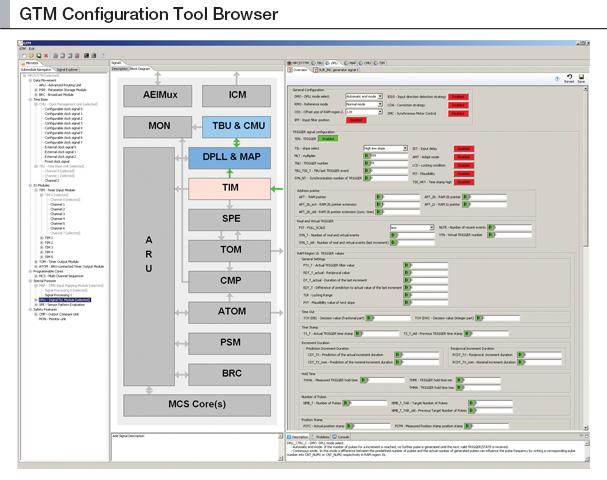

Generic Timer Module Configuration

Generic Timer Module Configuration Tool for MPC5xxx MCUs

Automotive General Block Diagram

Automotive General Block Diagram
获取框图PDF

功能

  • 直观、易用、基于Eclipse的图形用户界面(GUI)
  • 全面初始化GTM，提供示例
  • 内置一致性检查，以最大程度地减少错误设置
  • 自动软件生成，与HighTec®、Wind River®和Green Hills®编译器兼容
  • 联机文档和内置工具提示
  • 增强的寄存器查看器 — 按GTM子模块和通道浏览寄存器
  • 模块化代码生成 — 为任意或所有GTM子模块生成代码
  • 项目/信号导入和导出功能，适合分布式开发团队
  • 全面MCS内核初始化和代码映像下载

支持的器件

  • MPC5777M: 超可靠的MPC5777M MCU，适用于汽车和工业发动机管理

下载

快速参考恩智浦 软件类型.
筛选条件

1 下载

注意: 推荐在电脑端下载软件，体验更佳。

Y true 0 SSPGTM_CFG_TOOLzh 1 简介 Fact Sheet t523 1 zh 1 1 0 English The NXP generic timer module (GTM) configuration tool assists with the development of software for NXP MCUs that contain the GTM IP. This is done by allowing the user to configure the GTM through an Eclipse-based GUI and using the settings to automatically generate initialization code for the GTM, which is run once by the CPU on initialization. The GTM IP is a data flow-driven, large scalable timer with a modular design and a centralized routing unit. The GTM configuration tool provides a GUI to 1372192444864709026580 SSP 580.1 KB None None documents None 1372192444864709026580 /docs/en/fact-sheet/GTMCFGTOOLFS.pdf 580058 /docs/en/fact-sheet/GTMCFGTOOLFS.pdf GTMCFGTOOLFS N N 2013-06-26 Generic Timer Module Congifuration Tool - Fact Sheet /docs/en/fact-sheet/GTMCFGTOOLFS.pdf /docs/en/fact-sheet/GTMCFGTOOLFS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 pdf N en Jun 25, 2013 Fact Sheet t523 简介 Fact Sheet N N Generic Timer Module Congifuration Tool - Fact Sheet false zh zh false 0 GTM_CFG_TOOL downloads zh-Hans true 1 Y SSP 简介 1 /docs/en/fact-sheet/GTMCFGTOOLFS.pdf 2013-06-26 1372192444864709026580 SSP 1 Jun 25, 2013 Fact Sheet 简介 The NXP generic timer module (GTM) configuration tool assists with the development of software for NXP MCUs that contain the GTM IP. This is done by allowing the user to configure the GTM through an Eclipse-based GUI and using the settings to automatically generate initialization code for the GTM, which is run once by the CPU on initialization. The GTM IP is a data flow-driven, large scalable timer with a modular design and a centralized routing unit. The GTM configuration tool provides a GUI to None /docs/en/fact-sheet/GTMCFGTOOLFS.pdf English 580058 None Fact Sheet 2022-12-07 N /docs/en/fact-sheet/GTMCFGTOOLFS.pdf Generic Timer Module Congifuration Tool - Fact Sheet /docs/en/fact-sheet/GTMCFGTOOLFS.pdf documents 736675474163315314 Fact Sheet N Y en None N t523 pdf 0 N N Generic Timer Module Congifuration Tool - Fact Sheet 580.1 KB GTMCFGTOOLFS N 1372192444864709026580 true Y Softwares
