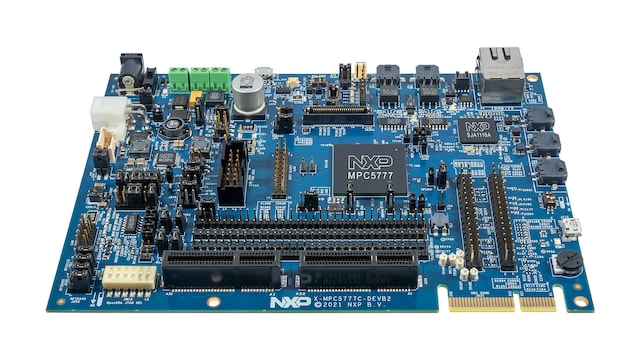

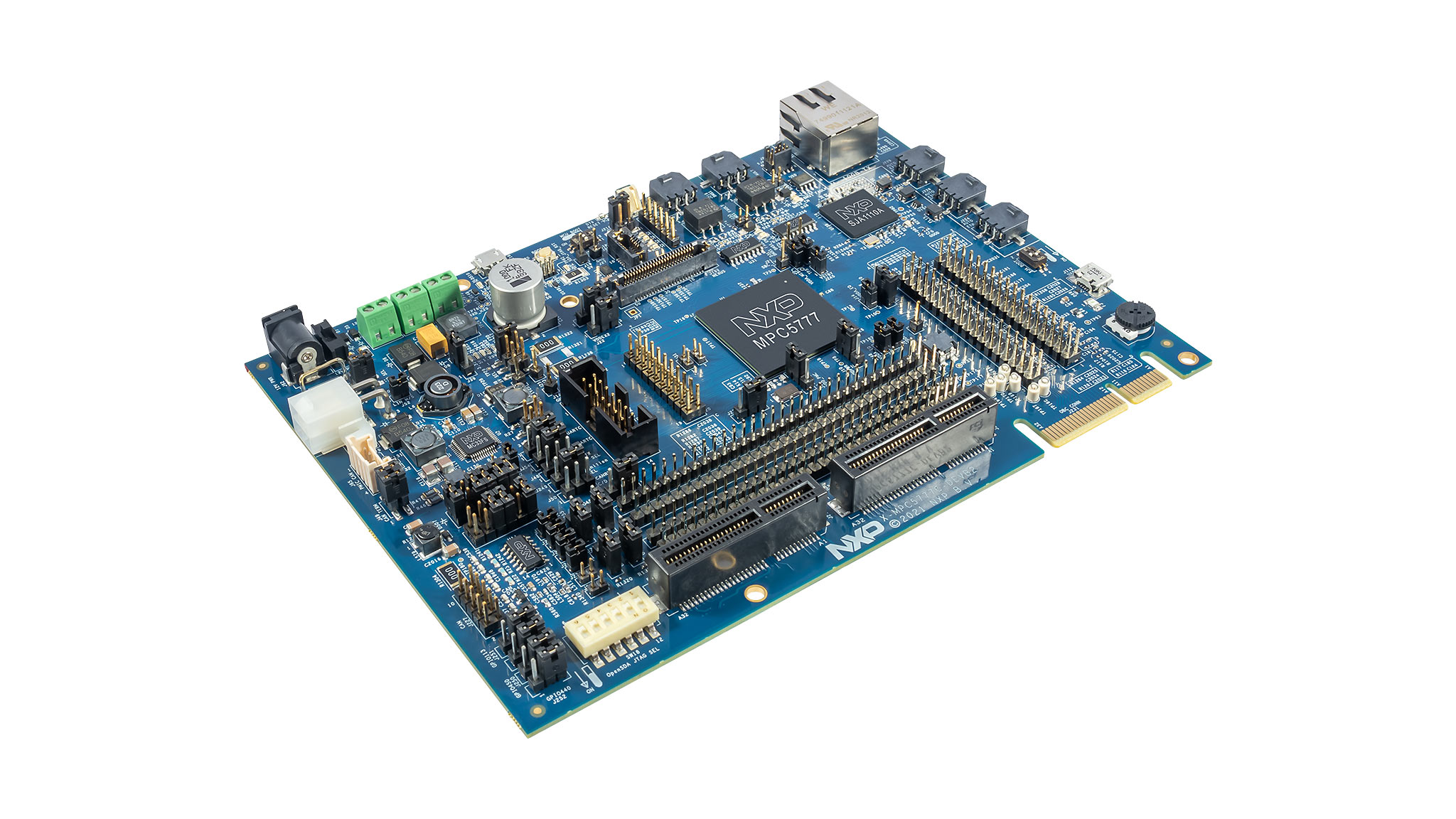

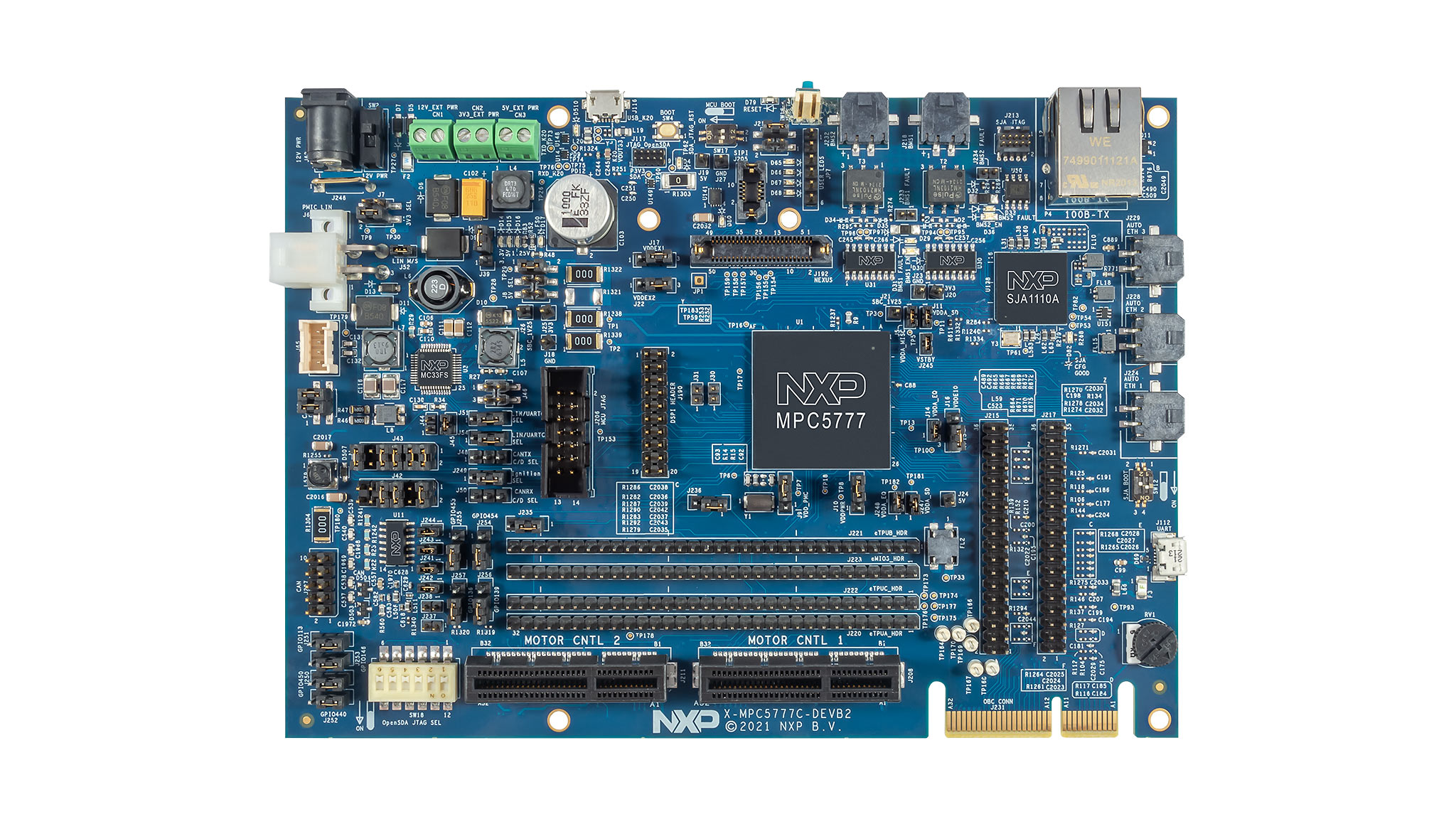

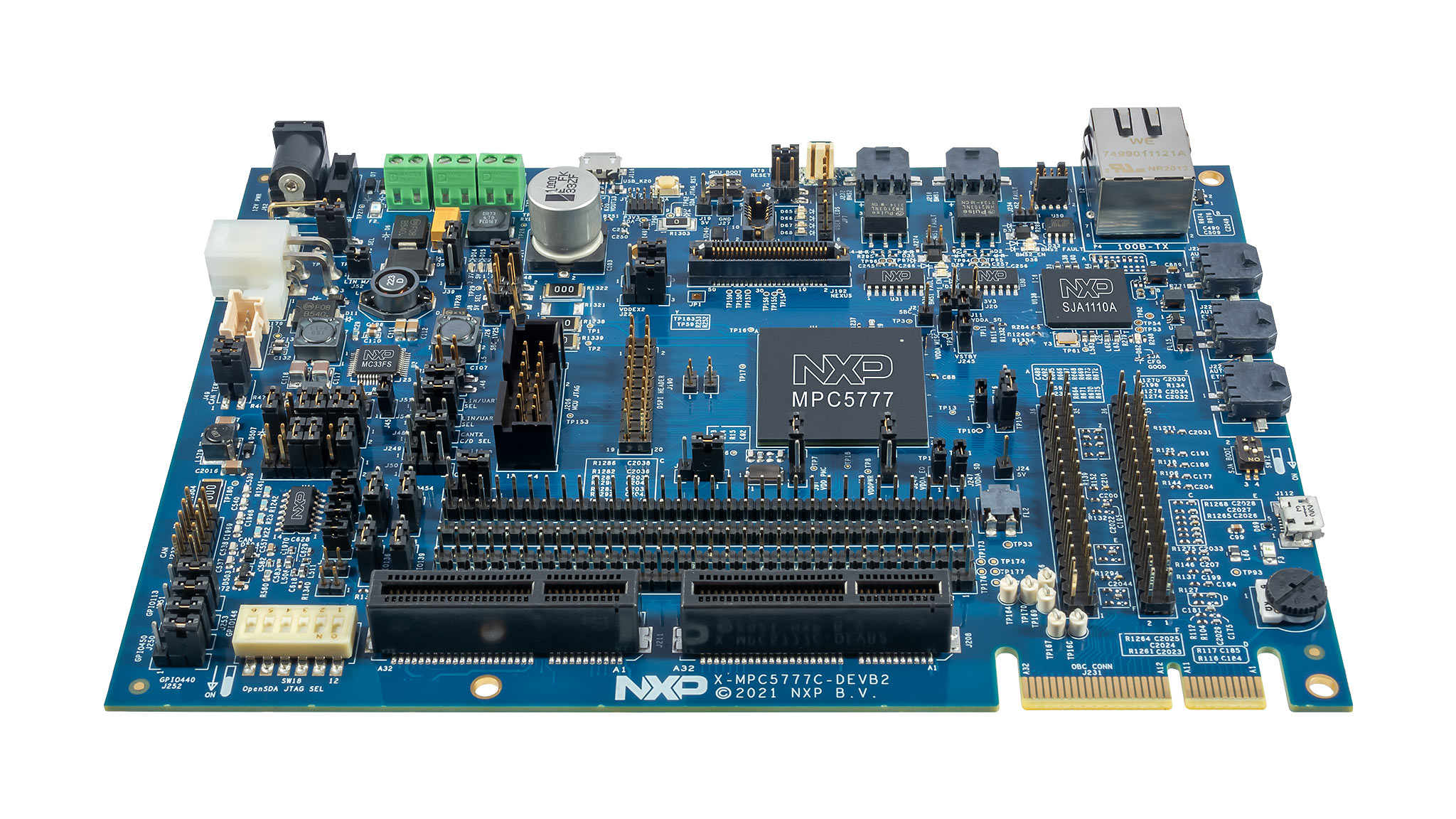

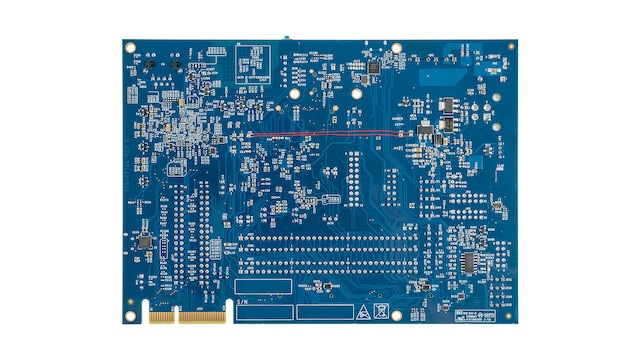

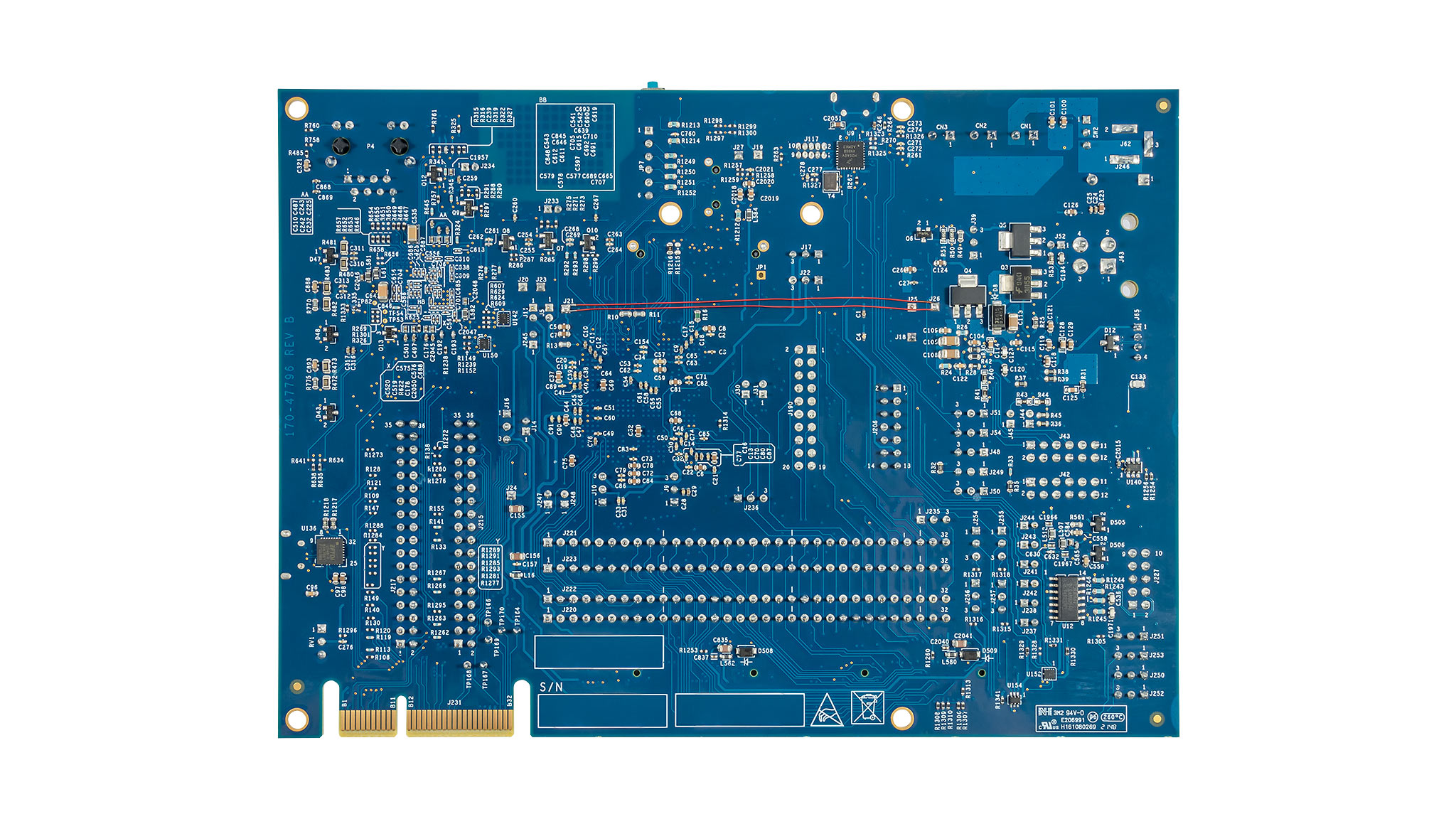

MPC5777C Battery Management Systems (BMS) and Engine Control Development Board 2

MPC5777C-DEVB2

滚动图片以放大

The MPC5777C-DEVB2 is a development board engineered for a range of applications: from traction motors and battery management systems (BMS) to internal combustion engines and transmissions.

Based on the 32-bit Power Architecture® MPC5777C ultrareliable microcontroller, together with the FS65 system basis chip (SBC), the SJA1110 and TJA1048T Ethernet and CAN transceivers, the MPC5777C-DEVB2 facilitates hardware and software development, offering system performance, safety and security.

框图

MPC5777C-DEVB2 Block Diagram

MPC5777C-DEVB2 Block Diagram
获取框图PDF

支持的器件

处理器和微控制器

超高可靠性的MPC57xx MCU

  • MPC5777C: 超高可靠的MPC5777C MCU，适用于汽车和工业发动机管理

接口

汽车以太网交换机

  • SJA1110: 内置100BASE-T1 PHY的多Gig安全TSN以太网交换机

电源管理

安全SBC

  • FS6500: 符合1级和0级安全标准的电源系统基础芯片，带有CAN灵活数据收发器

Features

Key Features

  • 6-phase PMSM motor control development solution
  • Dual 3-phase motor development solution
  • TSN capability upgrade via SJA1110
  • Dual BMS implementation for loopback control for higher-level safety
  • DC/DC control board option with DC/DC driver board

Microcontroller (MCU)

  • 32-bit Power Architecture e200z7 based MPC5777C
  • Two independent Power Architecture z7 cores with up to 300 MHz operation
  • Single z7 core in Lockstep with one of the main cores

Interfaces

  • USB to Serial Interface
  • Dual Motor Control, Ethernet, CAN, LIN, JTAG

Software

购买选项

MPC5777C-DEVB2-Image

点击展开

  • MPC5777C-DEVB2
    正常供应

  • MPC5777C Battery Management Systems (BMS) and Engine Control Development Board 2.

  • Kit Contains

    • MPC5777C BMS and Engine Control Development Board
  • CNY 11,420.18
  • 数量为 1
    • 供货情况: 现货
    • 库存: 1
    • 配送: 正常情况下 1-2个工作日内发货
