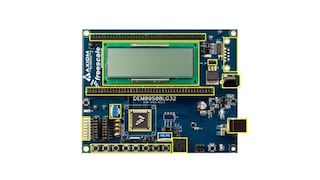

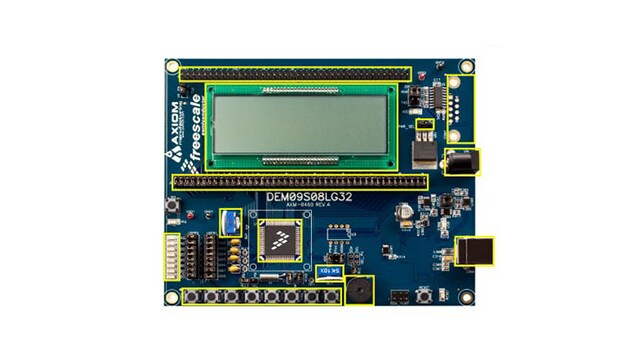

S08LG32 Demonstration Board

DEMO9S08LG32

滚动图片以放大

The DEMO9S08LG32 is a demonstration board for the MC9S08LG32 8-bit MCU.

  • Application development is quick and easy with the integrated USB-BDM, sample software tools and examples
  • 另外还提供了一个选用的BDM_PORT端口让您使用BDM_PORT线缆
  • One 80-pin connector provides access to all IO signals on the target MCU

产品详情

支持的器件

处理器和微控制器

8位S08 MCU

  • S08LG: 8位段式 LCD S08LG32和 S08LG16 MCU

特征

微控制器

  • MC9S08LG32，80 LQFP

数据连接

  • 集成式P&E USB-BDM
  • 带低通滤波器的5KΩ POT，用于模数转换器输入
  • 80针MCU I/O引脚接头
  • 2.0 mm barrel connector
  • USB连接器

电源管理

  • 板载+5V稳压器

显示器

  • 板载4x40定制LCD显示屏

组件

  • 10个按钮：8个用于用户操作，1个用于复位，1个用于IRQ
  • 12个LED指示灯：8个指示用户操作，其他分别指示VDD、IRQ、USB和复位
