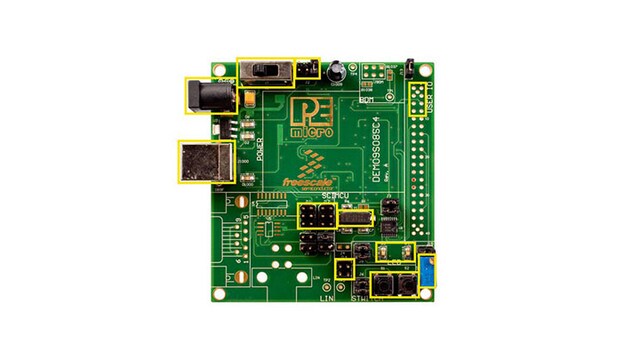

S08SC4 Evaluation and Demonstration Board

DEMO9S08SC4 正常供应

滚动图片以放大

The DEMO9S08SC4 is a low-cost development system designed for demonstrating, evaluating, and debugging the NXP® MC9S08SC4 microcontroller. P&E’s Embedded Multilink circuitry on the DEMO9S08SC4 board allows the processor on the DEMO9S08SC4 to be debugged and programmed via USB from the PC. In addition, the demo board can be powered using the USB bus.

产品详情

支持的器件

处理器和微控制器

8位S08 MCU

  • S08SC4: 8位C4小型封装SC4 MCU

Features

Memory

  • S08SC4, 16 TSSOP, 4K Bytes Flash, 256 Bytes RAM

Connectivity

  • Integrated P&E USB-BDM
  • On-board Virtual Serial Port
  • SCI signals connected to P&E’s Embedded Multilink through jumpers
  • P&E’s Embedded Multilink circuitry populated on the bottom

Power Management

  • Power Input Selection Jumpers for selecting the input voltage source
  • Power Input from Embedded Multilink to LDO regulator
  • Power Input from DC Power Jack to LDO regulator, regulated VDD output at 5.0 V
  • Power Input from MCU_PORT connector

User Components Provided

  • External Crystal Circuitry Layout
  • LIN PHY with Molex connector
  • 2 User LED’s w/ Enable
  • 2 User Push Buttons w/ Enable
  • 5K Ohm POT w/ Enable

Connectors

  • 40-Pin MCU I/O pass-through connector
  • RS-232 Serial Port w/ DB9-F Connector
  • USB Connector

购买选项

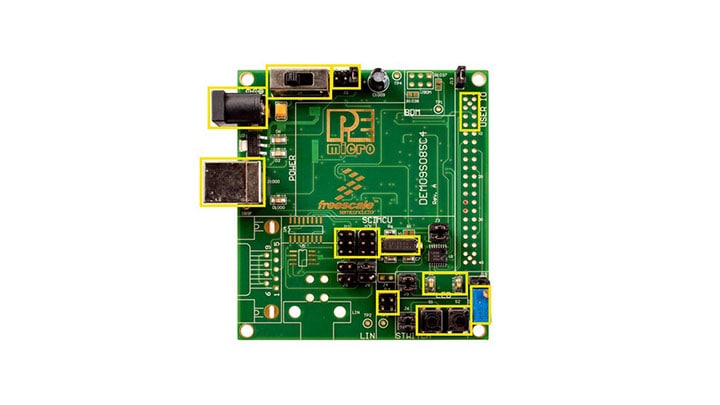

DEMO9S08SC4-Image

点击展开

  • DEMO9S08SC4
    正常供应

  • Demo board for the S08SC4, Potentiometer and port outputs.

    • DEMO9S08SC4 Board
    • DEMO9S08SC4 User Manual
    • USB cable
    • Support CD for AXIOM HC(S)08 Series
    • Resource CD
    • Quick Start Guide
    • CodeWarrior V6.3 for MCUs P&E resources CD
    • Warrant Card
    • Packing List
  • CNY 782.89
  • 数量为 1
