AW-XM458MA Evaluation Board

AW-XM458MA

滚动图片以放大

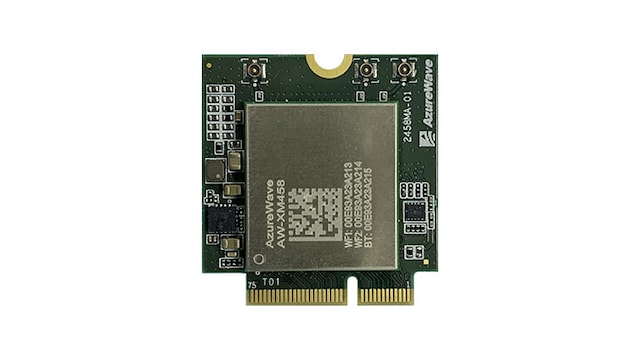

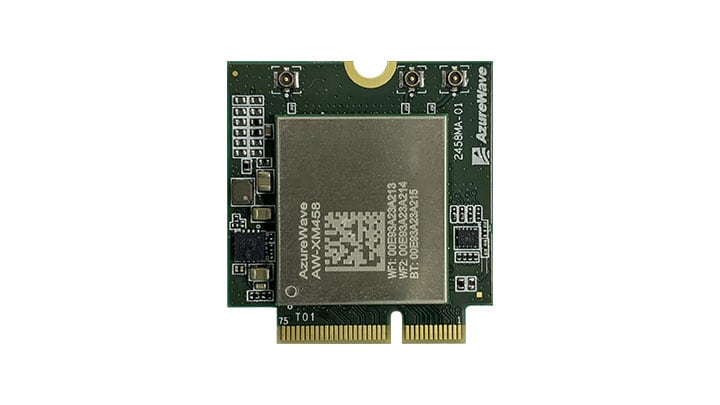

AW-XM458MA is the PCIe adaptor board of AW-XM458, which support 802.11ax 2x2 2.4 GHz/5 GHz with 18x20 LGA form-factor. The host interface supports PCI Express for Wi-Fi® and UART for Bluetooth®.

支持的器件

无线连接

Wi-Fi® +蓝牙® + 802.15.4

  • 88W9098: 2.4/5GHz双频2x2 Wi-Fi® 6 (802.11ax) + Bluetooth® 5.3

Features

Wi-Fi

  • 2x2 + 2x2 Wi-Fi 6/ Wi-Fi 5 CDW

Bluetooth

  • Bluetooth 5.1

Interface

  • Wi-Fi for PCIe and Bluetooth for UART

Antenna Pin No.

  • 2 for Wi-Fi
  • 1 for Bluetooth

Buy Options

Click to expand

  • AW-XM458MA

  • Azurewave AW-XM458MA PCIE adaptor board of the AW-XM458 802.11a/b/g/n/ac/ax 2.4 GHz/5 GHz 18x20 LGA module based on NXP's 88W9098 solution.

  • Kit Contains:

    • AW-XM458MA (with AW-XM458 module on board)
    • PIFA Antenna
