i.MX 8M Nano_ Arm Cortex A53_Cortex M7

滚动图片以放大

恩智浦的i.MX 8M Nano系列应用处理器提供了高性价比的集成和实惠的性能，适用于需要图形、视觉、语音控制、智能感应和通用处理功能的智能、互联的节能设备。

i.MX 8M Nano系列包含*i.MX 8M Nano UltraLite (*目前处于样品阶段)、i.MX 8M Nano Lite和i.MX 8M Nano。点击下面的按钮，查看该系列产品的重要功能和优异点：

重要功能和优异点

i.MX 8M Nano系列应用处理器搭载4个Arm®Cortex-A53内核和1个Arm®Cortex-M7内核，与主流i.MX 8M Mini应用处理器引脚兼容，并且可扩展。凭借商业和工业级认证以及恩智浦产品长期供货计划支持，i.MX 8M Nano系列处理器可用于任何通用工业和物联网应用。

i.MX 8应用处理器是恩智浦EdgeVerse™ 边缘计算平台的一部分。

数据手册

参考手册

产品详情

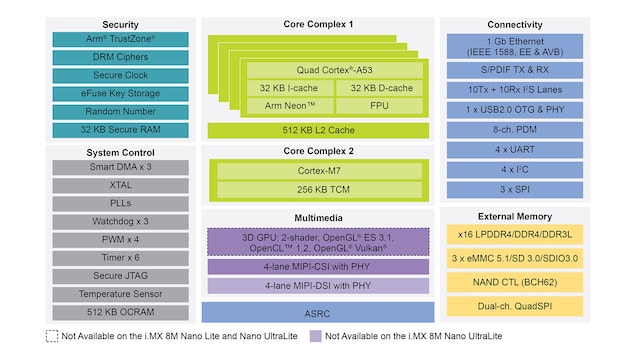

框图

i.MX 8M Nano Block Diagram

获取框图PDF

特征

多核处理

4个Cortex-A53内核平台，每核运行频率高达1.5GHz
32 kB L1-I缓存/ 32 kB L1-D缓存
512 kB L2缓存
1个Cortex-M7内核，运行频率高达750MHz
512 kB片上RAM (OCRAM)

GPU

3D GPU (2个着色器，OpenGL^{^®} ES2.0/3.0/3.1，OpenCL^™ 1.2，Vulkan^®)
- *i.MX 8M Nano UltraLite和8M Nano Lite不支持上述功能

显示屏接口

1个MIPI DSI (4通道)，带PHY

*i.MX 8M Nano UltraLite不支持上述功能

摄像头接口

1个MIPI CSI (4通道)，带PHY

音频

4个SAI (6Tx + 6Rx外部I2S通道)
8路PDM输入
硬件异步采样率转换(ASRC)

外部存储器接口

16位DRAM接口(LPDDR4-3200. DDR4-2400、DDR3L-1600)
8位NAND闪存控制器支持原始MLC/SLC (BCH62, ONFI3.2)
eMMC 5.0/5.1，SPI NOR，FlexSPI (XIP)

USB

1个USB 2.0 OTG控制器，带有集成PHY

以太网

1个千兆以太网(MAC)，带AVB和IEEE 1588、Energy Efficient Ethernet (EEE)，适用于低功耗设备

操作系统

Linux、Android、FreeRTOS

温度

消费电子(0°C至95°C Tj)
工业控制(-40°C至105°C Tj)

封装

i.MX 8M Nano和Nano Lite：FCBGA，14 x 14 0.5mm间距
i.MX 8M Nano UltraLite：FCBGA，11 x 11 0.5mm间距

重要功能和优异点

**产品处于样品阶段 **

	i.MX 8M Nano UltraLite应用处理器	i.MX 8M Nano Lite应用处理器	i.MX 8M Nano应用处理器
处理器	1个/ 2个 / 4个Cortex-A53 (1.4 GHz)	1个/ 2个/ 4个Cortex-A53 (1.4 GHz / 1.5 GHz)
处理器	Cortex-M7 (750 MHz)
显示器	无MIPI-DSI	4通道MIPI-DSI，带PHY
GPU	无GPU	无GPU	3D GPU：2个着色器， OpenGL^® ES 3.1， OpenCL 1.2， OpenGL^® Vulkan^®
软件	Linux、FreeRTOS^®	Linux、Android、FreeRTOS^®
封装大小	11 x 11	14 x 14

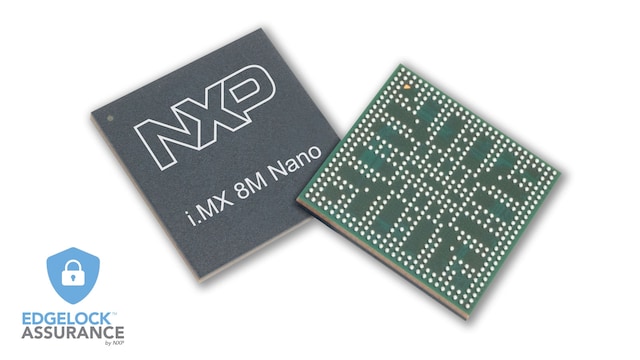

EdgeLock Assurance

i.MX 8M Nano应用处理器是EdgeLock Assurance计划的一部分，旨在满足行业标准，并采用恩智浦安全设计方法。

了解详情

购买/参数

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

设计资源

设计文件

快速参考恩智浦设计文件类型.

3 设计文件

收到完整的详细信息。 请参阅产品足迹及更多信息电子CAD文件.

模型
i.MX 8M Nano UltraLite (11X11) BSDL

ZIP版本 0Jun 4, 2021 09:37:00649.8 KBIMX8M-NANO-ULTRALITE-11X11-BSDL

请登录
下载Toggle Dropdown
- 加入列队
- 从列队中删除
- 文档较大时推荐使用。
- 查看列队
模型
IBIS Model for i.MX 8M Nano UltraLite (11x11 package)

ZIP版本 1May 3, 2021 16:40:009.2 MBIMX-8M-NANO-ULTRALITE-IBIS-ZIP
下载Toggle Dropdown
- 加入列队
- 从列队中删除
- 文档较大时推荐使用。
- 查看列队
模型
i.MX 8M Nano 14x14 IBIS Model

ZIP版本 3Jan 8, 2021 08:09:008.7 MBIMX8MN-14x14
下载Toggle Dropdown
- 加入列队
- 从列队中删除
- 文档较大时推荐使用。
- 查看列队

硬件

快速参考恩智浦板类型.

5 硬件

评估板和开发板
i.MX 8M Nano UltraLite应用处理器评估套件亮点

8MNANOD3L-EVK
评估板和开发板
i.MX 8M Nano应用处理器评估套件亮点

8MNANOD4-EVK
评估板和开发板
i.MX 8音频板

MCIMX8M-AUD
其他可用硬件. 查看我们的精选合作伙伴解决方案.
评估板和开发板
Azurewave Wi-Fi^® 5 (802.11ac) + Bluetooth^® chipset-based M.2 evaluation board: AW-CM358MA

AW-CM358
评估板和开发板
Eval kit for JODY-W263 Wi-Fi^®/Bluetooth^® module

UB-JODY-W263

1-5 / 37 硬件
