NFC Antenna Development Kit

OM29263ADK 正常供应

滚动图片以放大

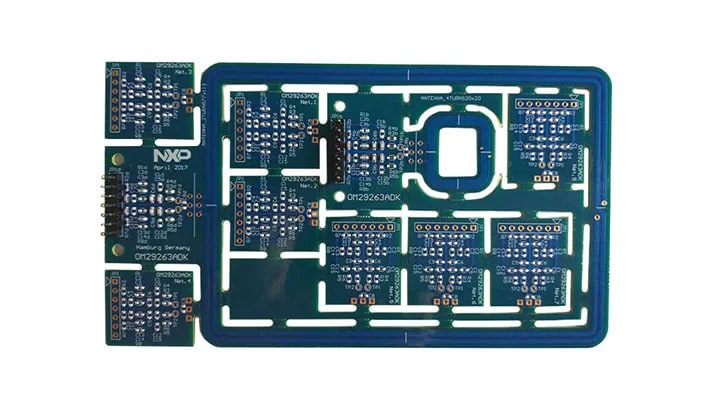

The NFC antenna development kit is a set of 2 ready-to-use pre-matched antennas for use with the CLRC663 plus development board (CLEV6630B). It consists of the popular 4 turns 20x20mm² and the 2 turns 77x113mm² antennas. It complements the standard 2 turns 65x65 mm² antenna and comes in addition of the 3 turns 30x50mm² antenna present in the CLRC663 plus development kit (OM26630FDK).

The NFC antenna development kit is also compatible with the CLRC663 development board (CLEV6630A) and can be optimized for the PN5180 (PNEV5180B/OM25180FDK) and PN7462 family (PNEV7462C/OM27462CDKP) development boards/kits using the 8 included antenna matching PCBs following the instructions in the quick start guide.

This NFC antenna development kit is an excellent tool to evaluate the performance of different antenna shapes and the quickest way to prototyping.

产品详情

支持的器件

RFID

NFC读卡器

  • CLRC66303HN: CLRC663+系列：高性能NFC前端
  • PN5180: 完全符合NFC Forum的前端IC
  • PN7462: 面向门禁、配有可选接触式接口的NFC Cortex®-M0一体化微控制器

Features

  • 20x20 mm2 antenna optimal to interact with mobile phones
  • NTAG® or ICODE® SLIX where footprint is limited
  • 77x113mm2 antenna for excellent performance with e.g. ICODE® ILT or MIFARE® including DESFIRE® family
  • Plug and play with CLRC663 plus development board
  • Plug and play with CLRC663 plus development board

购买选项

OM29263ADK-Image

点击展开

  • OM29263ADK
    正常供应

  • NFC Antenna Development Kit.

  • $26.22 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
