如果您需要NFC高性能或最低功耗，可使用这个非常高效、高度灵活的前端来进一步推动您的设计。它还能支持扩展的温度范围、与CLRC663+系列(见下表)引脚兼容，提供节省时间的软件工具。CLRC663+系列产品支持MIFARE®、ISO/IEC 14443、ISO/IEC 15693和ISO/IEC 18000-3m3，是与恩智浦NFC标签匹配的天然配套部件。
CLRC663+ 系列是门禁、支付、游戏和工业等具有高性能要求的NFC应用的绝佳选择。
产品长期供货计划承诺
CLRC66303HN通过产品长期供货计划来支持您当前、未来及长远的发展。产品长期供货计划旨在为您的嵌入式设计确保稳定的产品供货。

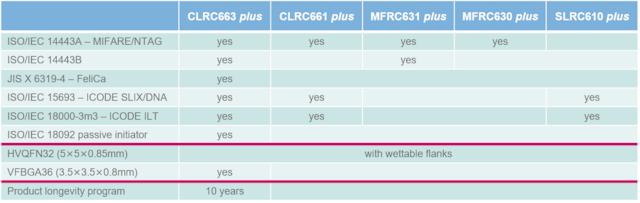

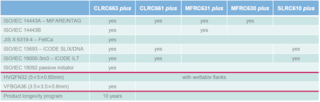

| CLRC663 + | CLRC661 + | MFRC631 + | MFRC630 + | SLRC610 + | |
|---|---|---|---|---|---|
| ISO/IEC 14443A – MIFARE/NTAG | 有 | 有 | 有 | 有 | |
| ISO/IEC 14443B | 有 | 有 | |||
| JIS X 6319-4 – FeliCa | 有 | ||||
| ISO/IEC 15693 – ICODE SLIX/DNA | 有 | 有 | 有 | ||
| ISO/IEC 18000-3m3 – ICODE ILT | 有 | 有 | 有 | ||
| ISO/IEC 18092无源启动器 | 有 | ||||

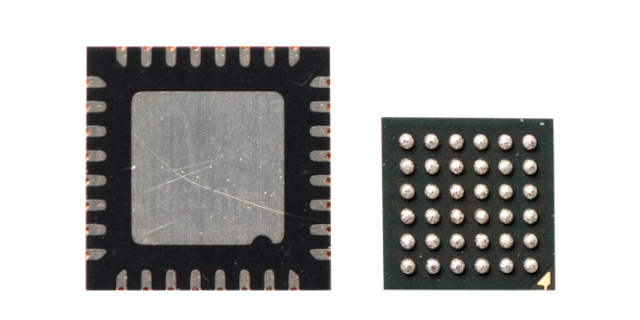

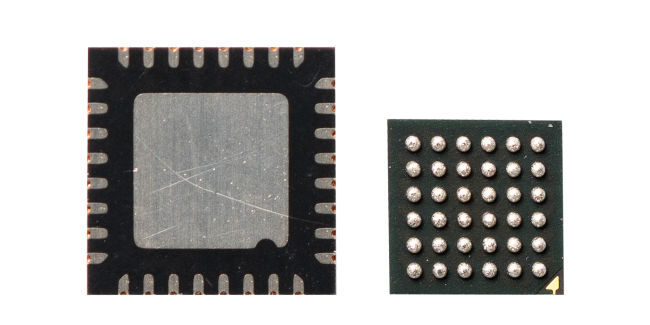

| HVQFN32 (5×5×0.85mm) | |||||
| VFBGA36 (3.5×3.5×0.8mm) | 有 | ||||
| 产品长期供货计划 | 10年 | ||||
6 结果
包含 0 不推荐用于新设计
部件 | 订购 | 计算机辅助设计模型 | 状态 | Application Segment | Read distance [TYP] (mm) | 特点 | Contactless Identification Standard | Host Interface | Host interface protocol | 输入电压[最小到最大]（V） | RF driver supply voltage [min-max] (V) | RF driver current [max](mA) | Max output power (W) | User Non volatile memory size [kB] | Ambient Operating Temperature (Min to Max) (℃) | Package Dimensions (LxWxZ (mm)) | 封装类型 | 封装端接数 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
正常供应 | Access control, Gaming, Industrial, Smart City, Smart Home | 160 | NFC reader/writer | ISO/IEC 14443 Type A, ISO/IEC 14443 Type B, ISO/IEC 15693, ISO/IEC 18000-3M3, ISO/IEC 18092 | I2C, SPI, UART | Register level command - response | 2.5 to 5.5 | 2.5 - 5.5 | 350 | 1.93 | 6 | -40 to 105 | 5 x 5 x 0.85 | HVQFN32 | 32 | |||
正常供应 | Access control, Gaming, Industrial, Smart City, Smart Home | 160 | NFC reader/writer | FeliCa, ISO/IEC 14443 Type A, ISO/IEC 14443 Type B, ISO/IEC 15693, ISO/IEC 18092 | I2C, SPI, UART | Register level command - response | 2.5 to 5.5 | 2.5 - 5.5 | 350 | 1.93 | 6 | -40 to 85 | 3.5 x 3.5 x 0.8 | VFBGA36 | 36 | |||
正常供应 | Access control, Gaming, Industrial, Smart City, Smart Home | 160 | NFC reader/writer | ISO/IEC 14443 Type A, ISO/IEC 14443 Type B, ISO/IEC 15693, ISO/IEC 18000-3M3, ISO/IEC 18092 | I2C, SPI, UART | Register level command - response | 2.5 to 5.5 | 2.5 - 5.5 | 350 | 1.93 | 6 | -40 to 105 | 5 x 5 x 0.85 | HVQFN32 | 32 | |||
正常供应 | Access control, Gaming, Industrial, Smart City, Smart Home | 160 | NFC reader/writer | ISO/IEC 14443 Type A | I2C, SPI, UART | Register level command - response | 2.5 to 5.5 | 2.5 - 5.5 | 350 | 1.93 | 6 | -40 to 105 | 5 x 5 x 0.85 | HVQFN32 | 32 | |||
正常供应 | Access control, Gaming, Industrial, Smart City, Smart Home | 160 | NFC reader/writer | ISO/IEC 14443 Type A, ISO/IEC 14443 Type B | I2C, SPI, UART | Register level command - response | 2.5 to 5.5 | 2.5 - 5.5 | 350 | 1.93 | 6 | -40 to 105 | 5 x 5 x 0.85 | HVQFN32 | 32 | |||
正常供应 | Access control, Gaming, Industrial, Smart City, Smart Home | 160 | NFC reader/writer | ISO/IEC 15693 | I2C, SPI, UART | Register level command - response | 2.5 to 5.5 | 2.5 - 5.5 | 350 | 1.93 | 6 | -25 to 85 | 5 x 5 x 0.85 | HVQFN32 | 32 |
1-10 / 21 文件
紧凑列表
4 设计文件

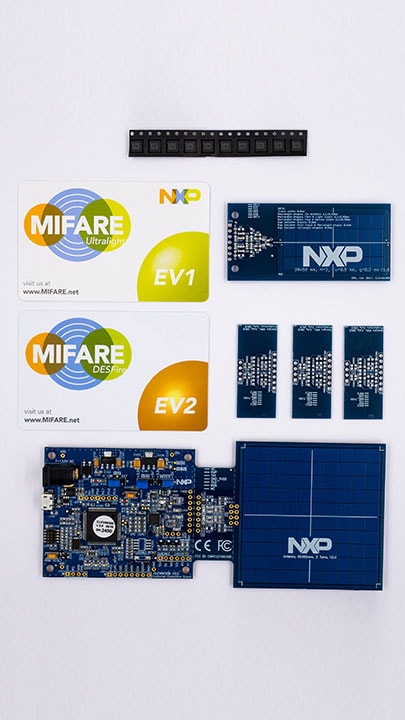

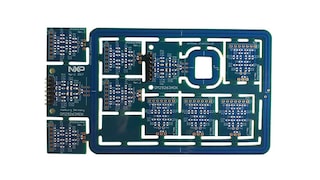

4 硬件

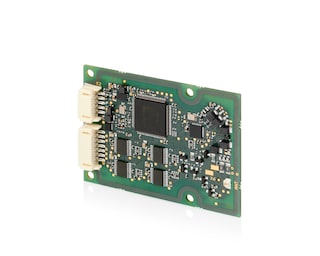

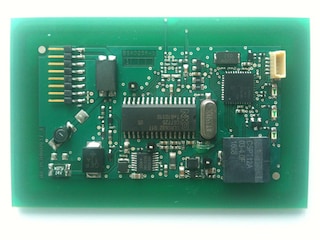

其他可用硬件. 查看我们的精选合作伙伴解决方案.
