CLRC663 + 面向访问管理应用的NFC前端开发套件

OM26630FDK

滚动图片以放大

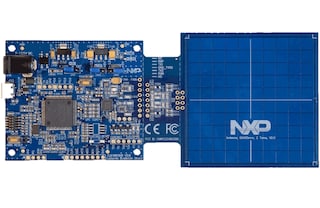

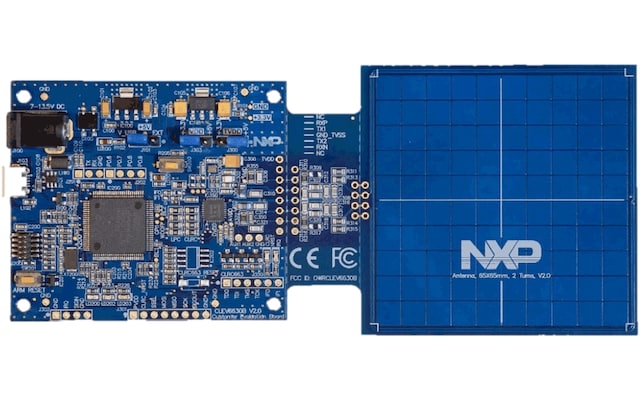

OM26630FDK是面向CLRC663 +的灵活、易于使用的前端开发套件。它包含完全由NFC Cockpit和NFC读卡器库支持的CLEV6630B电路板，其具有针对EMVCo应用的65 * 65mm² 优化天线，以及面向Access Management应用的匹配组件的30 * 50mm² 优化天线。它还包括3个符合PCB的小型天线，用于实现定制天线匹配电路，基于NTAG216F (NFC Forum 2型标签)的NFC采样卡和MIFAREDESFire® EV2，以及10个CLRC663+可湿性侧翼HVQFN封装中的样品。

产品详情

特征

Microcontroller

  • LPC1769 MCU on board, SPI interface accessible for connection of other MCU

Power Management

  • Low-power card detection

Wireless

  • Highest RF performance
  • Artificial damping of the RF field in the middle of the antenna simulating the presence of a PCB or display to demonstrate the expected performance
  • Compliance with all standards relevant to contactless NFC reader operation and EMVCo 2.6

购买选项

OM26630FDK-Image

点击展开

  • OM26630FDK
    正常供应

  • CLRC663 plus NFC Frontend Development Kit for Access Management Applications.

  • $176.64 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 29
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
CLEV6630B-Image

点击展开

  • CLEV6630B
    正常供应

  • CLRC663 plus NFC Frontend Development Board for Access Management Applications.

  • $122.82 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 21
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
