面向POS终端应用的PN5180 NFC前端开发套件

OM25180FDK
正常供应

滚动图片以放大

OM25180FDK是面向PN5180的灵活、易于使用的前端开发套件，主要用于POS机终端应用。它包含PNEV5180B电路板(带有65 mm x 65 mm天线，适用于EMVC应用)、带匹配组件的30 mm x 50 mm天线(适用于NFC应用)、三个小天线匹配PCB (尺寸约30 mm x 50 mm，可实施定制的天线匹配电路)、基于NTAG216F (NFC Forum类型2标签g)的NFC样品卡和10个HVQFN封装的PN5180样品。

产品详情

特征

无线

  • 最高的射频性能
  • 完全符合与NFC、非接触式操作和EMVCo相关的所有标准

电源管理

  • 板载动态功率控制(DPC)，可优化射频性能
  • 低功耗卡检测
  • 有源负载调制，提升卡仿真模式的小天线性能
  • 天线中间射频场的人造阻尼，模拟PCB或显示器来演示预期性能

购买选项

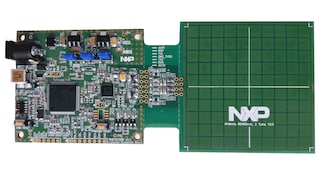

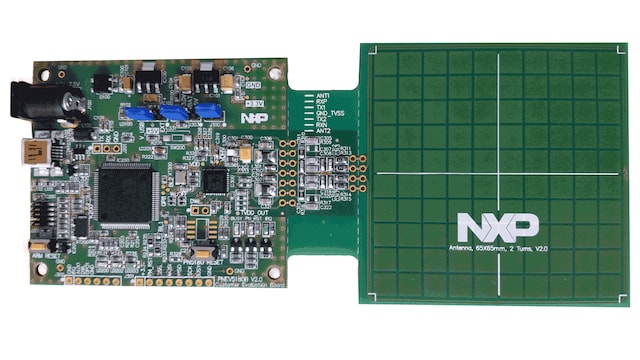

PNEV5180B-Image

点击展开

  • PNEV5180B
    正常供应

  • PN5180 NFC Frontend Development Board for POS Terminal Applications.

  • 数量为 1
从分销商处购买
OM25180FDK-Image

点击展开

  • OM25180FDK
    正常供应

  • OM25180FDK Frontend Development Kit (FDK).

  • $190.44 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 10
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
