MRFX600H_600 W CW, 1.8-400 MHz, 65 V

滚动图片以放大

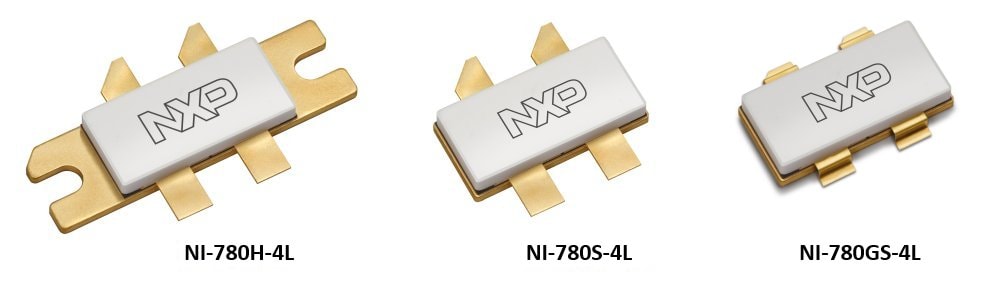

The MRFX600H, MRFX600HS and MRFX600GS high ruggedness devices are designed for use in high VSWR industrial, medical, broadcast, aerospace and mobile radio applications. Their unmatched input and output design supports frequency use from 1.8 to 400 MHz.

数据手册

应用笔记

产品详情

Features

Unmatched input and output allowing wide frequency range utilization
Output impedance fits a 4:1 transformer
Device can be used single-ended or in a push-pull configuration
Qualified up to a maximum of 65 V_DD operation
Characterized from 30 to 65 V for extended power range
High breakdown voltage for enhanced reliability
Suitable for linear application with appropriate biasing
Integrated ESD protection with greater negative gate-source voltage range for improved Class C operation
RoHS compliant

Industrial, scientific, medical (ISM)
- Laser generation
- Plasma generation
- Particle accelerators
- MRI, RF ablation and skin treatment
- Industrial heating, welding and drying systems
Radio and VHF TV broadcast
Aerospace
- HF communications
- Radar
Mobile Radio
- HF and VHF communications
- PMR base stations

RF Performance Tables

Typical Performance

Frequency (MHz)	Signal Type	V_DD (V)	P_out (W)	G_ps (dB)	η_D (%)
87.5-108^(1,2)	CW	62	680 CW	21.3	83.0
230⁽³⁾	Pulse (100 µsec, 20% Duty Cycle)	65	600 Peak	26.4	74.4

Load Mismatch/Ruggedness

Frequency (MHz)	Signal Type	VSWR	P_in (W)	Test Voltage	Result
230⁽³⁾	Pulse (100 µsec, 20% Duty Cycle)	> 65:1 at all Phase Angles	2.5 Peak (3 dB Overdrive)	65	No Device Degradation

1. Measured in 87.5-108 MHz broadband reference circuit.
2. The values shown are the center band performance numbers across the indicated frequency range.
3. Measured in 230 MHz production test fixture.
