50-4000 MHz，3位1 dB LSB数字步进衰减器

MMT20303H
正常供应
MMT20303H是一款集成3位数字步进衰减器，具有1 dB的步长。它通过一个3位并行接口进行控制，采用3至5 V电源运行。MMT20303H适用于3G/4G小型基站发射器和移动无线电应用，工作频率为50至4000 MHz。

查看产品图片

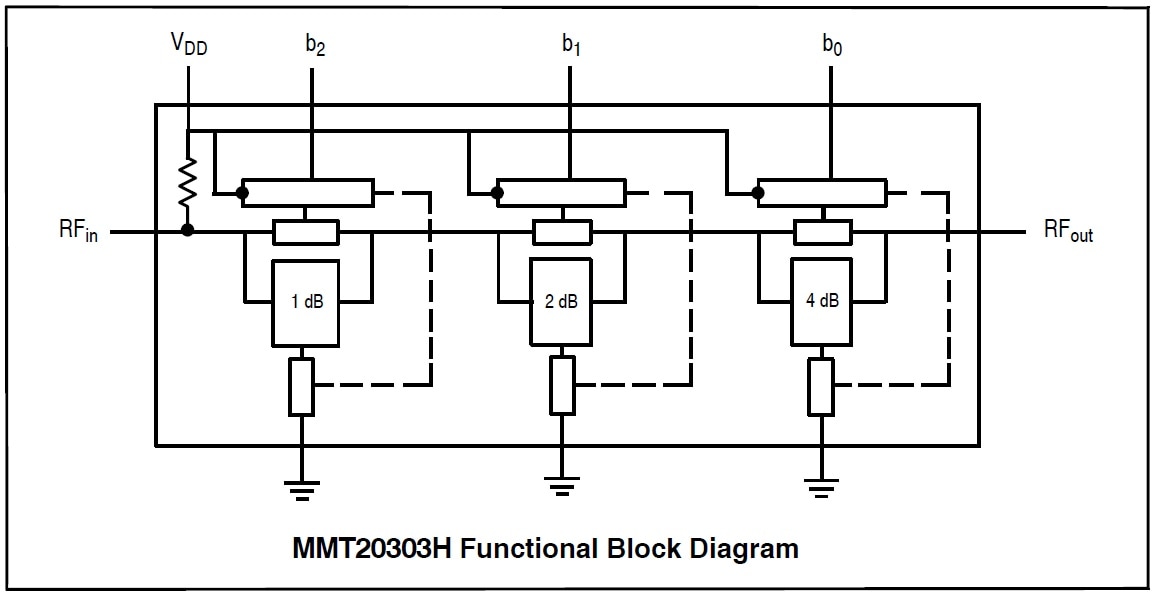

框图

MMT20303H Block Diagram

MMT20303H Block Diagram
获取框图PDF

特征

  • 频率：50-4000 MHz
  • 最大射频输入功率：30 dBm (连续波)
  • 典型IIP3 > 50 dBm
  • 可编程衰减器，7 dB最大范围，1 dB步长
  • 低插入损耗
  • ±0.1 dB典型位错
  • 在工作温度和电压范围内具备卓越的一致性
  • 3至5 V单电源
  • 50 Ohm运行电阻
  • P1dB独立于控制电压
  • 3位数字控制
  • 兼容TTL/CMOS接口
  • 高性价比16引脚3 mm QFN表面贴装塑料封装
  • 符合RoHS规范

RF Performance Table

典型性能 (1)

特征 符号 250
MHz		 900
MHz		 4000
MHz		 单位
插入损耗IL –0.6–0.7–1.3dB
衰减精度(最坏情况)— +0.1, –0.1+0.1, 0+0.1, –0.1dB
输入三阶交调点(2)IIP3 475452dBm
电压输入 @ 1 dB压缩P1dB 3035(3)35(3)dBm
1. VDD = 5 Vdc，TA = 25°C，50 ohm系统，应用电路针对特定频率调整。
2. 双频输入功率 = +13 dBm/频。
3. 在指定的最大额定值内运行。
