局部联网的CAN SIC收发器，CAN FD数据传输速率高达8Mbit/s

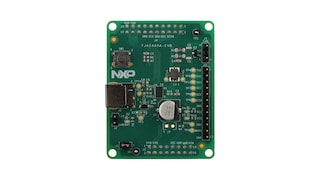

TJA1465
正常供应

滚动图片以放大

具有局部联网睡眠模式的TJA1465 CAN信号质量提升(SIC)收发器属于TJA146x收发器系列，该系列实现了ISO11898-2:2024参数集A-C中定义的CAN SIC。TJA1465可与高速经典CAN和CAN FD协议完全互操作，并经过充分开发和认证，符合ISO26262 ASIL-B标准。

CAN信号的改进大大减少了网络上的信号振铃，从而能够在更大的拓扑中以5Mbit/s的速度进行可靠的CAN FD通信，并且由于更严格的位时序对称性能，甚至可以实现8Mbit/s的CAN FD通信。

TJA1465通过ISO11898-2:2024中规定的选择性唤醒功能支持CAN局部联网，即使在CAN总线流量运行时，收发器也能保持在睡眠模式，无需处于活动状态。

TJA1465B在TJA1465A的基础上扩展了功能集，包括一个用于通过外部引脚禁用发射器的TXEN_N引脚，以及3个可配置的GPIO引脚，这些引脚可以用于一组扩展功能，例如第二个TXD/RXD通道。

TJA1465提供CAN FD/CAN XL无源功能，在睡眠模式下，该功能可防止收发器被唤醒，并在进行混合总线通信时保护CAN控制器免受CAN FD和CAN XL消息的干扰。

框图

选择框图:

TJA1465A

TJA1465A

TJA1465B

TJA1465B
获取框图PDF

特性

一般特性

  • 符合ISO11898-2:2024参数集A-C、SAE J2284-1至SAE J2284-5和SAE J1939-14标准
  • 符合ISO26262标准，达到ASIL B安全级别
  • 通过选择性唤醒功能实现局部联网功能
  • 可配置的通用I/O(GPIO)引脚(TJA1465B)
  • 直接发射器开/关控制输入(TXEN_N) (TJA1465B)
  • 实现ISO11898-2:2024参数集C定义的CAN信号质量提升功能，可大幅降低网络中的信号振铃效应
  • 自动总线偏置
  • 低电磁辐射(EME)和高抗电磁干扰(EMI)
  • 符合AEC-Q100 1级标准
  • VIO输入允许连接到1.8V、3.3V至5V微控制器

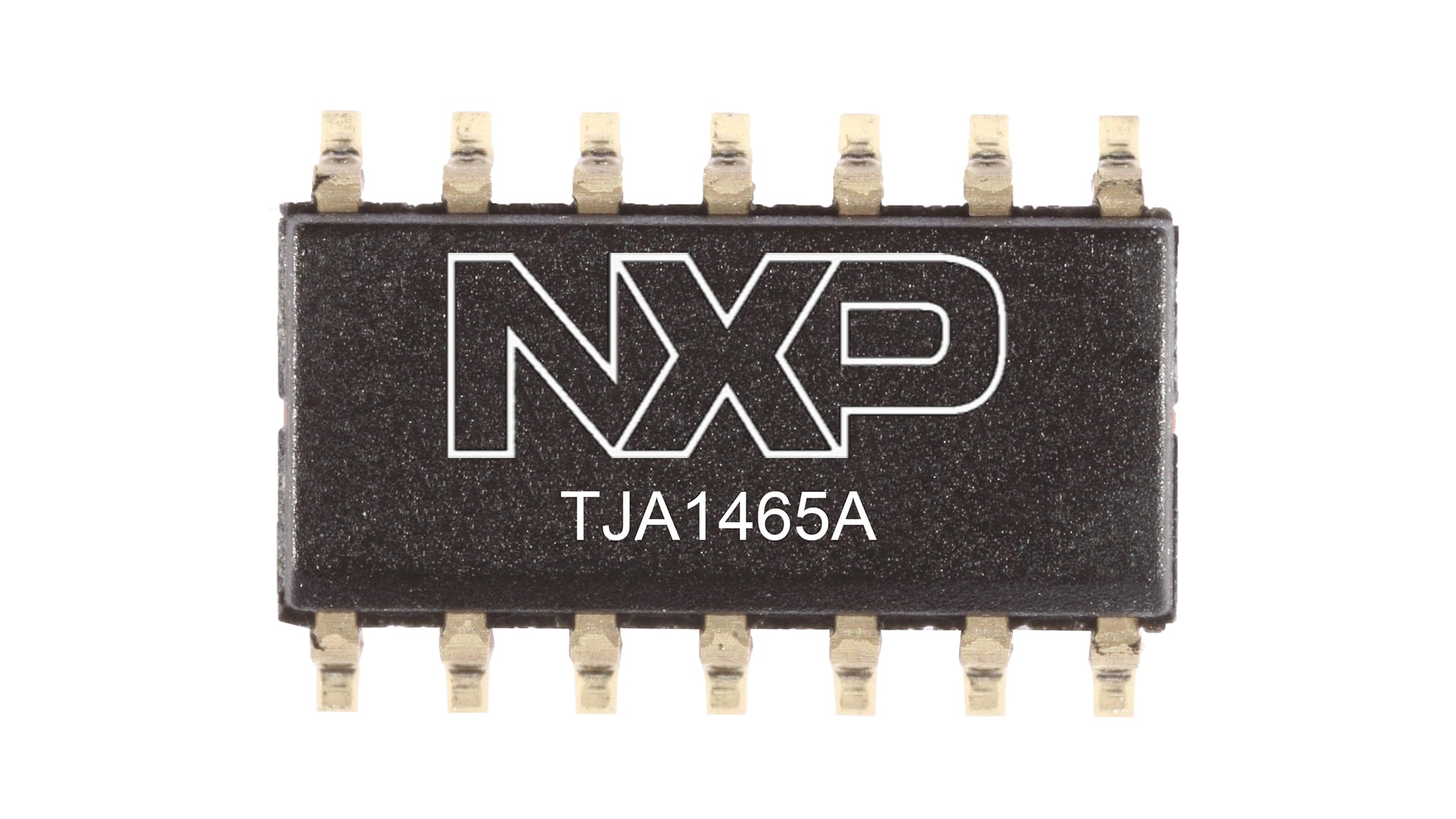

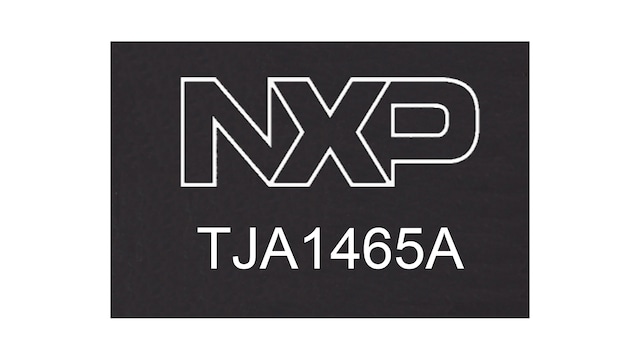

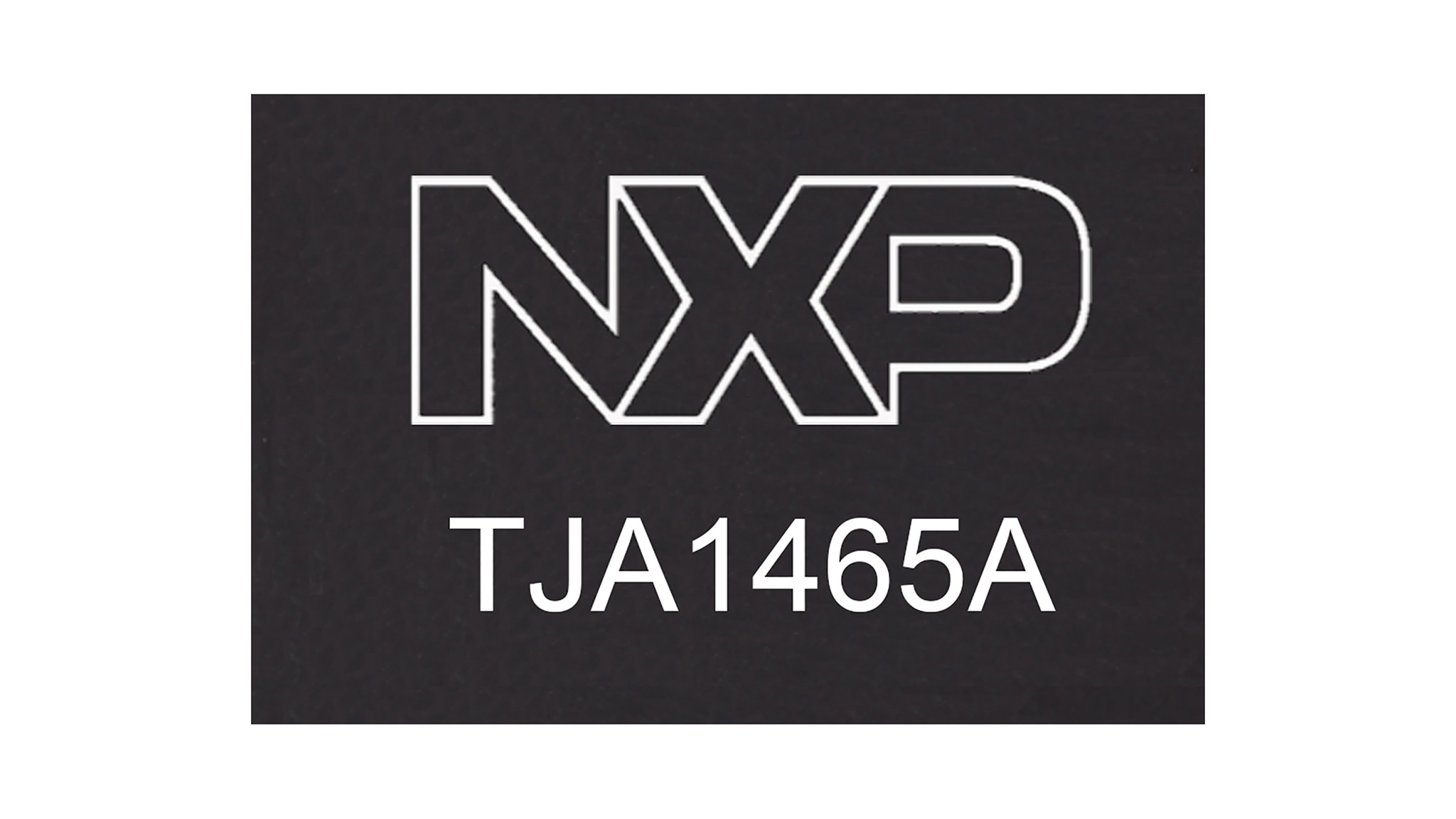

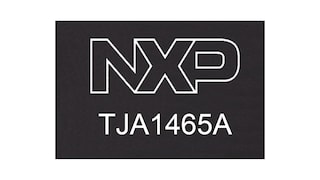

  • TJA1465A提供SO14和HVSON14封装

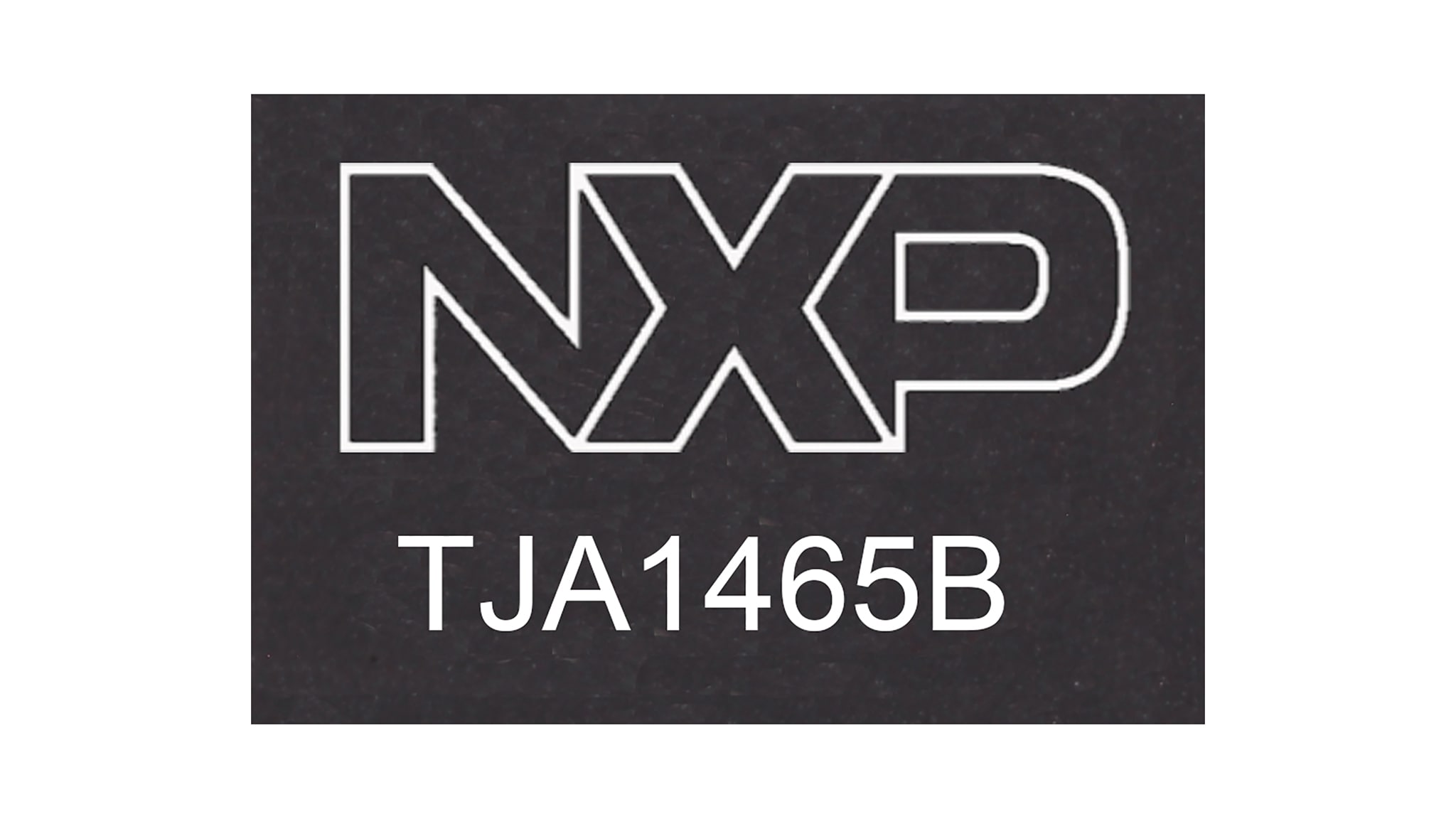

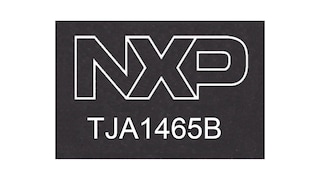

  • TJA1465B提供DHVQFN18封装

可预测故障安全操作

  • 所有电源引脚上提供欠压检测，低于欠压阈值的定义行为
  • 从欠压检测阈值到最大电压限值，可保证功能正常运行
  • 当电池电压降至关闭模式阈值以下时，收发器与总线断开(高欧姆)
  • TXD的内部偏置，可实现定义的故障安全操作

低功耗管理

  • 待机和睡眠模式的电流消耗极低，带有本地和远程唤醒
  • 可通过WAKE引脚实现本地唤醒
  • 通过唤醒模式(WUP)或唤醒帧(WUF)进行远程唤醒
  • 符合ISO11898-2:2024标准的可配置CAN唤醒模式(dom-rec-dom或dom-rec-dom-rec)
  • ISO11898-2:2024标准定义的选择性唤醒

诊断和保护

  • 过热诊断和保护
  • 发送数据(TXD)主导的超时诊断和保护
  • 总线主导的故障诊断
  • 冷启动诊断(首次电池连接)
  • 总线引脚具备较高的ESD处理能力
  • 在汽车环境中对总线引脚和VBAT引脚提供抗瞬变保护

更多

购买/参数

3 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

Recommended Orderable Part Number

MCU I/O Interface (V)

CAN Bus Robustness [Min-Max] (V)

Low Power Modes

封装类型

CAN Channels

产品类别

输入电压[最小到最大]（V）

传输速率（最小）（Kbps）

Voltage on bus pins [Min-Max] (V)

VESD IEC on bus pins (+/- kV)

Tvj [max] (℃)

保护

Wake-Up Pin

Min High Input Levels (V) [Vio]

GPIO

Supported standards

SPLIT Pin

Thermal Resistance (Spec) (℃/W)

Product Application

TJA1465AT
数据手册

正常供应

TJA1465AT/0Z

1.8, 3.3, 5.0

-36 to 40

Sleep Mode with selective wake-up, Standby Mode

SO14

1

CAN FD / CAN Signal Improvement

4.5 to 5.5

50.0

-36 to 40

-8 to 8

150

Bus dominant timeout, MCU reaction timeout, TXD dominant timeout, overtemperature, undervoltage detection

Y

0.7

—

ISO 11898-2:2024, ISO 26262, SAE J1939-14, SAE J2284-1, SAE J2284-2, SAE J2284-3, SAE J2284-4, SAE J2284-5

N

85

Automotive, Industrial

TJA1465ATK
数据手册

正常供应

TJA1465ATK/0J

1.8, 3.3, 5.0

-36 to 40

Sleep Mode with selective wake-up, Standby Mode

HVSON14

1

CAN FD / CAN Signal Improvement

4.5 to 5.5

50.0

-36 to 40

-8 to 8

150

Bus dominant timeout, MCU reaction timeout, TXD dominant timeout, overtemperature, undervoltage detection

Y

0.7

—

ISO 11898-2:2024, ISO 26262, SAE J1939-14, SAE J2284-1, SAE J2284-2, SAE J2284-3, SAE J2284-4, SAE J2284-5

N

70

Automotive, Industrial

TJA1465BHG
数据手册

正常供应

TJA1465BHG/0J

1.8, 3.3, 5.0

-36 to 40

Sleep Mode with selective wake-up, Standby Mode

DHVQFN18

1

CAN FD / CAN Signal Improvement

4.5 to 5.5

50.0

-36 to 40

-8 to 8

150

Bus dominant timeout, MCU reaction timeout, TXD dominant timeout, overtemperature, undervoltage detection

Y

0.7

3

ISO 11898-2:2024, ISO 26262, SAE J1939-14, SAE J2284-1, SAE J2284-2, SAE J2284-3, SAE J2284-4, SAE J2284-5

N

68

Automotive, Industrial
