带CAN D的8位高性价比MCU

S08D
正常供应

滚动图片以放大

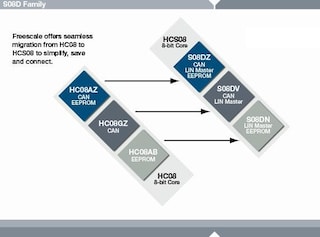

恩智浦针对汽车和工业市场，推出业界首款具备嵌入式CAN接口、EEPROM和片上仿真/调试功能的8位微控制器系列。S08D系列器件之间引脚、外设和工具兼容，为开发人员提供了扩展性和灵活性，便于移植。

这款高度集成的新一代MCU系列集成了丰富的功能，旨在提供更高的性能，节省电量，缩短开发时间，节省电路板空间和成本。

了解更多

产品详情

框图

Freescale S08D Microcontroller Block Diagram

Freescale S08D Microcontroller Block Diagram
获取框图PDF

特征

S08 CPU

  • S08 CPU内核运行频率高达40 MHz，总线频率达 20 MHz
  • 附加了后台指令(BGND)的HC08指令集

片上存储器

  • 高达128 KB闪存，在整个工作电压和温度范围内均可进行读取/编程/擦除操作
  • 高达2 KB的EEPROM在线可编程存储器;8字节单页或4字节双页擦除区块；在执行闪存时可编程和擦除；擦除中止
  • 最高 8 KB RAM (16:1闪存/RAM，比例优于同类竞争产品)

节电模式

  • 两种超低功耗的停止模式
  • 超低功耗的实时中断，在运行、等待和停止模式中使用

时钟源选项

  • 振荡器(XOSC) - 回路控制皮尔斯振荡器；晶体或陶瓷谐振器，频率范围为31.25 kHz至38.4 kHz或1 MHz至16 MHz
  • 多功能时钟发生器(MCG) - PLL和FLL模式；带调整功能的内部参考时钟；带振荡器/谐振器选项的外部参考源

系统保护

  • 计算机正常运行(COP)看门狗模块复位，可选择采用专用的1 kHz内部时钟源或总线时钟来运行
  • 带复位或中断功能的低电压检测；开始点可选择
  • 带复位功能的非法操作码检测
  • 带复位功能的非法地址检测
  • 闪存块保护
  • EEPROM块保护

外设

  • ACMPx - 模拟比较器，可选择在比较器输出的前沿、后沿或前后沿产生中断；将选项与固定的内部带隙参考电压比较
  • MSCAN — CAN协议- 版本2.0 A, B; 标准和扩展数据帧；支持远程帧；5个带FIFO存储机制的接收缓冲器；灵活的标识符接收过滤器，可编程为：2×32位，4×16位，或8×8位
  • SCIx — 符合LIN2.0协议和SAE J2602；主设备长间隔生成；从设备长间隔检测；SCI1上的LIN从设备补充；自动波特率纠正；消息超时检测
  • SPI - 全双工或单线双向；双缓冲的发送和接收；主模式或从模式；MSB优先或LSB优先切换
  • I²C - 最大总线负载时高达100 kbps；多主设备运行；可编程从设备地址；中断驱动的逐字节数据传输；支持广播模式
  • TPMx - 1个6通道(TPM1)和1个2通道(TPM2)，每个通道可选择用于捕捉输入、比较输出、缓冲边缘对齐PWM
  • RTC (实时计数器) - 带二进制或十进制预分频器的8位模数计数器；外部时钟源提供精确的时基、时间日历或任务调度功能；自由运行的片上低功耗振荡器(1 kHz)，提供循环唤醒，不需要外部组件

开发支持

  • 单线后台调试(BDM)接口
  • 具有实时总线捕捉功能的片上在线仿真(ICE)

输入/输出

  • 87个通用I/O引脚，一个纯输入引脚
  • 32个中断引脚，每个引脚极性可选
  • 所有输入引脚上有迟滞并可配置上拉电子器件
  • 所有输出引脚上的压摆率和驱动强度均可配置

封装选项

  • 100 LQFP 14 x 14 mm
  • 64引脚LQFP封装 - 10 x 10 mm
  • 48引脚LQFP - 7 x 7 mm
  • 32引脚LQFP - 7 x 7 mm

其他

  • EMC性能
  • 宽工作电压范围：2.7V–5.5V

后台调试系统

  • 片上BDM

封装

  • 引脚与SH、QG系列兼容

产品长期供货计划
