面向电磁控制的可编程栅极驱动器

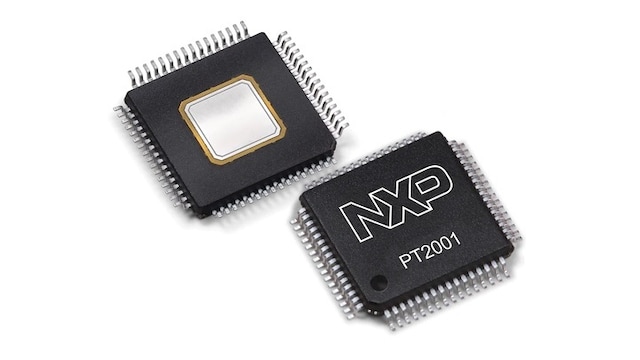

PT2001
正常供应

滚动图片以放大

PT2001是一种面向精密电磁控制应用的可编程栅极驱动器IC，该组件非常灵活，将主微控制器从执行器控制的繁重任务中解放出来。

该芯片集成了4个用于控制的微内核、5个外部MOSFET高边预驱动器、7个外部MOSFET低边预驱动器、1个DC-DC转换器、集成的喷射结束检测、电流测量和诊断。

框图

PT2001：面向电磁控制的可编程栅极驱动器

PT2001: Programmable Gate Driver for Solenoid Control Block Diagram
获取框图PDF

特性

主要特性

  • 电池电压范围：5V
  • 预驱动器工作电压最高为72V
  • 环境工作温度范围：–40°C(最低)至125°C(最高)
  • 5个高边预驱动PWM可高达100KHz
  • 7个低边预驱动PWM可高达100KHz
  • 所有预驱动器都有4个可选的压摆率
  • 12个可选择的预定义VDS监测阈值
  • 符合ISO26262标准的开发
  • 用于保护微代码的加密功能
  • 集成的喷射结束检测功能
  • 动力控制和预驱动器设备功能
  • 4通道
