单缸小型发动机控制IC

MC33813 正常供应

恩智浦MC33813是发动机控制电源IC，可提供成本优化的解决方案，以管理单缸发动机。

  • 此IC包括5个驱动器，两个预驱动器，一个MCU 5.0V稳压器，一个受保护的外置传感器电源以及高度集成功能，满足了现代市场的需求。
  • 创新式VRS系统优化了起动条件下的抗噪性。
  • 所有输出都具有诊断和保护功能，使应用更安全地运行。

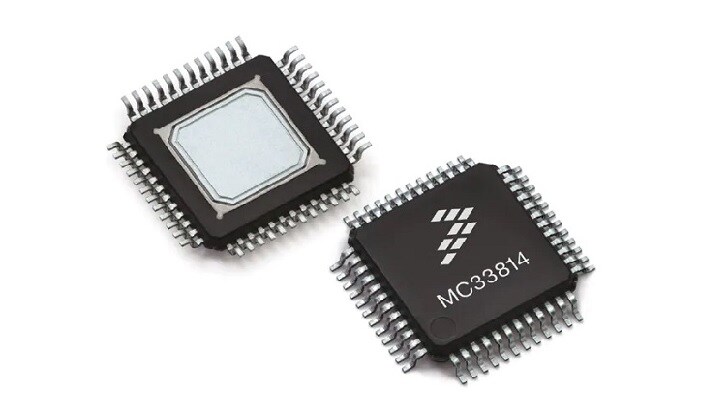

  • 该器件采用48引脚LQFP封装，带裸焊盘，占地空间最小。

查看产品图片

框图

One Cylinder Small Engine Control IC

One Cylinder Small Engine Control IC
获取框图PDF

功能

主要特性

  • 工作电压范围为4.5V < VPWR < 36V
  • 启动/关闭控制和上电时序逻辑，具有KEYSW输入
  • MCU电源：VCC是5.0V (±2.0%, 200 mA)的稳压电源
  • 传感器电源：VPROT (100 mA)是受VCC跟踪保护的传感器电源
  • 面向IGBT和通用栅极MOSFET的两个可配置的预驱动器，适用于点火和O2传感器(HEGO)加热器
  • PWM
  • 过流关断
  • 电池短路关断
  • 5个低边驱动器，具有全诊断、自我保护和PWM控制功能
  • 一个喷油器驱动器，导通电阻 = 0.6 Ω，ILIMIT = 1.8 A，可驱动典型的12 Ω高电阻喷油器
  • 继电器1驱动器，导通电阻 = 0.4 Ω，ILIMIT = 3.0 A，可驱动燃油泵
  • 继电器2驱动器，导通电阻 = 1.5 Ω，ILIMIT = 1.2 A，可驱动功率继电器
  • 灯泡驱动器，导通电阻 = 1.5 Ω，ILIMIT = 1.2 A，可驱动警示灯或LED
  • 可编程转速表驱动器，导通电阻 = 20 Ω, I中断电流 = 60 mA，可驱动转速器显示
  • 创新的可配置VRS调适电路，具有两种不同参数设置，分别用于发动机起动和运行模式以及可选自动模式，以改善起动条件下的抗噪性
  • 符合K-line (ISO9141)
  • MCU复位生成器和可编程看门狗
  • MCU接口：16位SPI和并行接口，具有5.0V IO功能

购买/参数

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
N true 0 PSPMC33813zh 5 应用笔记 Application Note t789 2 数据手册 Data Sheet t520 1 简介 Fact Sheet t523 1 选型指南 Selector Guide t528 1 zh 1 1 12.0 English The 33813 is an engine control analog power IC intended for one cylinder motorcycle and other small engine control applications. The IC consists of five integrated low side drivers, two pre-drivers, a Variable Reluctance Sensor (VRS) input circuit, a voltage pre-regulator using an external pass transistor, and two 5 volt internal regulators, one for the MCU VCC supply and the other for use as a protected sensor supply. 1345133749962709600373 PSP 3.3 MB None None documents None 1345133749962709600373 /docs/en/data-sheet/MC33813.pdf 3307425 /docs/en/data-sheet/MC33813.pdf MC33813 N N 2017-07-11 MC33813, One cylinder small engine control IC - Data Sheet /docs/en/data-sheet/MC33813.pdf /docs/en/data-sheet/MC33813.pdf Data Sheet N Y 980000996212993340 2023-08-18 pdf N en Dec 6, 2019 Data Sheet t520 数据手册 Data Sheet Y N MC33813, One cylinder small engine control IC - Data Sheet false zh zh 应用笔记 Application Note 2 2 2 English This document details the different diagnosis available on MC33813; MC33814 low-side drivers and pre-drivers, their conditions and actions taken when a fault occurs. 1539363632890720014046 PSP 245.2 KB None None documents None 1539363632890720014046 /docs/en/application-note/AN12226.pdf 245231 /docs/en/application-note/AN12226.pdf AN12226 documents N N 2018-10-12 AN12226, Diagnostic application note for MC33813; MC33814 - Application note /docs/en/application-note/AN12226.pdf /docs/en/application-note/AN12226.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jun 11, 2020 645036621402383989 Application Note Y N AN12226, Diagnostic application note for MC33813; MC33814 - Application note 3 1.0 English This application note addresses some the theory of variable reluctance sensor (VRS) systems, as well as how to correctly determine the VRS automatic mode parameters through a single bench measurement. 1457722525593725195039 PSP 519.3 KB None None documents None 1457722525593725195039 /docs/en/application-note/AN5253.pdf 519300 /docs/en/application-note/AN5253.pdf AN5253 documents N N 2016-03-14 AN5253, VRS Automatic Mode Setting - Application Note /docs/en/application-note/AN5253.pdf /docs/en/application-note/AN5253.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Mar 11, 2016 645036621402383989 Application Note Y N AN5253, VRS Automatic Mode Setting - Application Note 简介 Fact Sheet 1 4 1 English The small-engine portfolio offers 3 easy-to-use engine control devices to deliver a cost-optimized IC solution for managing one- and two-cylinder engines. 1475854249408730124078 PSP 521.6 KB None None documents None 1475854249408730124078 /docs/en/fact-sheet/SMALLENGINELF.pdf 521575 /docs/en/fact-sheet/SMALLENGINELF.pdf SMALLENGINELF documents N N 2016-11-09 SMALLENGINELF, Small engine leaflet - Fact sheet /docs/en/fact-sheet/SMALLENGINELF.pdf /docs/en/fact-sheet/SMALLENGINELF.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf N en Oct 3, 2016 736675474163315314 Fact Sheet Y N SMALLENGINELF, Small engine leaflet - Fact sheet 选型指南 Selector Guide 1 5 12 English For system designers who want more efficient motor operation with variable speed and sensorless control, NXP offers H-bridge, brushed and brushless DC motor drivers required to complete system design. 1404924651029729642615 PSP 1.2 MB None None documents None 1404924651029729642615 /docs/en/product-selector-guide/INDCONTANLPRDFL.pdf 1202686 /docs/en/product-selector-guide/INDCONTANLPRDFL.pdf INDCONTANLPRDFL documents N N 2016-10-31 Analog Automotive and Industrial Selector Guide /docs/en/product-selector-guide/INDCONTANLPRDFL.pdf /docs/en/product-selector-guide/INDCONTANLPRDFL.pdf Selector Guide N 553557935274807777 2025-01-05 en Jan 29, 2021 553557935274807777 Selector Guide Y N Analog Automotive and Industrial Selector Guide 3 Chinese 1404924651029729642615zh PSP 1.2 MB None None documents None 1404924651029729642615 /docs/zh/product-selector-guide/INDCONTANLPRDFL.pdf 1202686 /docs/zh/product-selector-guide/INDCONTANLPRDFL.pdf INDCONTANLPRDFL documents N N 2016-10-31 Analog Automotive and Industrial Selector Guide /docs/zh/product-selector-guide/INDCONTANLPRDFL.pdf /docs/zh/product-selector-guide/INDCONTANLPRDFL.pdf Selector Guide N 553557935274807777 2025-01-05 pdf N zh Sep 18, 2014 553557935274807777 Selector Guide Y N 面向工业市场的模拟产品 - 简介 false 0 MC33813 downloads zh-Hans true 1 Y PSP 应用笔记 2 /docs/en/application-note/AN12226.pdf 2018-10-12 1539363632890720014046 PSP 2 Jun 11, 2020 Application Note This document details the different diagnosis available on MC33813; MC33814 low-side drivers and pre-drivers, their conditions and actions taken when a fault occurs. None /docs/en/application-note/AN12226.pdf English documents 245231 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN12226.pdf AN12226, Diagnostic application note for MC33813; MC33814 - Application note /docs/en/application-note/AN12226.pdf documents 645036621402383989 Application Note N en None Y pdf 2 N N AN12226, Diagnostic application note for MC33813; MC33814 - Application note 245.2 KB AN12226 N 1539363632890720014046 /docs/en/application-note/AN5253.pdf 2016-03-14 1457722525593725195039 PSP 3 Mar 11, 2016 Application Note This application note addresses some the theory of variable reluctance sensor (VRS) systems, as well as how to correctly determine the VRS automatic mode parameters through a single bench measurement. None /docs/en/application-note/AN5253.pdf English documents 519300 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN5253.pdf AN5253, VRS Automatic Mode Setting - Application Note /docs/en/application-note/AN5253.pdf documents 645036621402383989 Application Note N en None Y pdf 1.0 N N AN5253, VRS Automatic Mode Setting - Application Note 519.3 KB AN5253 N 1457722525593725195039 数据手册 1 /docs/en/data-sheet/MC33813.pdf 2017-07-11 1345133749962709600373 PSP 1 Dec 6, 2019 Data Sheet 数据手册 The 33813 is an engine control analog power IC intended for one cylinder motorcycle and other small engine control applications. The IC consists of five integrated low side drivers, two pre-drivers, a Variable Reluctance Sensor (VRS) input circuit, a voltage pre-regulator using an external pass transistor, and two 5 volt internal regulators, one for the MCU VCC supply and the other for use as a protected sensor supply. None /docs/en/data-sheet/MC33813.pdf English 3307425 None Data Sheet 2023-08-18 N /docs/en/data-sheet/MC33813.pdf MC33813, One cylinder small engine control IC - Data Sheet /docs/en/data-sheet/MC33813.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 12.0 N N MC33813, One cylinder small engine control IC - Data Sheet 3.3 MB MC33813 N 1345133749962709600373 简介 1 /docs/en/fact-sheet/SMALLENGINELF.pdf 2016-11-09 1475854249408730124078 PSP 4 Oct 3, 2016 Fact Sheet The small-engine portfolio offers 3 easy-to-use engine control devices to deliver a cost-optimized IC solution for managing one- and two-cylinder engines. None /docs/en/fact-sheet/SMALLENGINELF.pdf English documents 521575 None 736675474163315314 2022-12-07 N /docs/en/fact-sheet/SMALLENGINELF.pdf SMALLENGINELF, Small engine leaflet - Fact sheet /docs/en/fact-sheet/SMALLENGINELF.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 1 N N SMALLENGINELF, Small engine leaflet - Fact sheet 521.6 KB SMALLENGINELF N 1475854249408730124078 选型指南 1 /docs/zh/product-selector-guide/INDCONTANLPRDFL.pdf 2016-10-31 1404924651029729642615zh PSP 5 Sep 18, 2014 Selector Guide None /docs/zh/product-selector-guide/INDCONTANLPRDFL.pdf Chinese documents 1202686 None 553557935274807777 2025-01-05 N /docs/zh/product-selector-guide/INDCONTANLPRDFL.pdf 面向工业市场的模拟产品 - 简介 /docs/zh/product-selector-guide/INDCONTANLPRDFL.pdf documents 553557935274807777 Selector Guide N zh None Y pdf 3 N N Analog Automotive and Industrial Selector Guide 1.2 MB INDCONTANLPRDFL N 1404924651029729642615 true Y Products

文档

快速参考恩智浦 文档类别.

筛选条件

5 文件

紧凑列表

应用笔记 (2)
数据手册 (1)
简介 (1)
选型指南 (1)
