汽车发动机控制IC

MC33810
正常供应

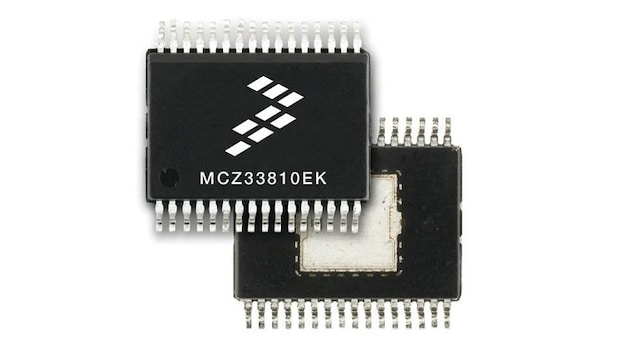

滚动图片以放大

恩智浦®MC33810是8通道输出驱动器IC，专门用于汽车发动机控制应用。

  • 该IC包含4个集成的低边驱动器，以及4个低边栅极预驱动器。
  • 低边驱动器适用于驱动喷油器、电磁阀、车灯和继电器等
  • 4个栅极预驱动器既可以作为点火IGBT栅极预驱动器，也可作为通用MOSFET栅极预驱动器
  • 当作为通用栅极预驱动器时，MC33810向外部MOSFET提供短路保护、电感式反激保护和诊断。
  • 封装方式为32引脚(0.65mm 间距)裸焊盘SOIC。

产品详情

框图

恩智浦MC33810低边开关

NXP MC33810 Low Side Switch Block Diagram
获取框图PDF

功能

主要特性

  • 设计的工作电压范围为4.5V≤VPWR≤ 36V
  • 4通道点火IGBT或MOSFET栅极预驱动器，带并行/SPI和/或PWM控制
  • 4通道喷油器驱动器，带并行/SPI控制
  • 使用3.3V/5.0V SPI协议可直接与MCU连接
  • 喷油器驱动器电流限制——4.5A典型值
  • 独立的故障保护和诊断功能
  • VPWR待机电流典型值为10µA
  • 负载电流(IL)1 A(典型值)
  • 4通道
  • 漏源导通电阻：100000 mOhm RDS(ON)(典型值)

产品长期供货计划
