超可靠的双核32位MCU，适用于汽车和工业控制应用

MPC564xL
正常供应

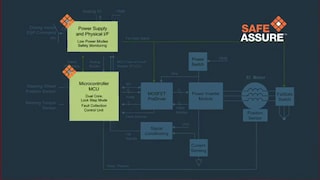

SafeAssure<sup>®</sup>功能安全解决方案计划

点击播放视频

ISO 26262功能安全标准认证

MPC5643L 32位MCU基于Power Architecture®技术，将关键的功能安全特性集成在一个芯片上，降低了设计的复杂性和组件数量。它专为满足ISO 26262安全标准最严苛的ASIL D等级要求而设计。

  • 双核、双指令执行架构支持更高性能，同时采用更低功率
  • 锁步模式为冗余处理和计算提供软件环境
  • 去耦的并行模式支持需要最大性能或软件多样性的应用
  • 面向电机控制等实时应用的精确和确定性的控制定时
  • SafeAssure®功能安全解决方案

框图

MPC564XL Microcontroller Block Diagram

MPC564XL Microcontroller Block Diagram
获取框图PDF

特征

  • 双e200 Z4 CPU架构
  • 两套处理设备，包括CPU、DMA、中断控制器、交叉开关和MPU，支持逻辑层面的故障检测
  • 两个静态可配置的运行模式：锁步运行(冗余处理和计算)和双并行模式(独立内核运算)
  • 监测和管理故障事件的故障采集单元
  • RAM和闪存上的纠错编码功能可以检测/纠正存储器错误。
  • 首款通过ISO 26262功能安全标准认证的MCU。
  • 与FlexRay™和CAN/安全端口进行可靠的通信，进行高速低时延的消息传送
  • 交叉触发单元协调ADC、定时器和PWM生成，最大限度地减少CPU中断负荷
  • 3个eTimer
  • 两个ADC
  • 本产品包含在恩智浦产品长期供货计划中，自推出后至少保证15年供货

购买/参数

1-10 / 12 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

封装类型

封装端接数

预算报价（不含税）

Flash (kB)

RAM (kB)

内核类型

内核：内核数量(规范值)

运行频率[最高]（MHz）

SafeAssure 功能安全

CAN

SCI

DSPI

Ambient Operating Temperature (Min to Max) (℃)

电源电压[最小]（V）

电源电压[最大]（V）

GPC5643LF2MLQ1
数据手册

正常供应

LQFP144

144

10K @ CNY82.43 - 10K @ CNY84.22

—

—

e200

2

120

ISO 26262

—

—

—

-40 to 125

3

3.6

SPC5643LAMLQ1
数据手册

正常供应

LQFP144

144

10K @ CNY82.43

1024

128

e200

2

120

ISO 26262

2

2

3

-40 to 125

3

3.6

SPC5643LF2MLQ8
数据手册

正常供应

LQFP144

144

10K @ CNY76.83 - 10K @ CNY74.82

1024

128

e200

2

80

ISO 26262

2

2

3

-40 to 125

3

3.6

SPC5643LF2MMM1
数据手册

正常供应

LFBGA257

257

10K @ CNY89.32 - 10K @ CNY91.40

1024

128

e200

2

120

ISO 26262

2

2

3

-40 to 125

3

3.6

SPC5643LFF2MLL6
数据手册

正常供应

LQFP100

100

10K @ CNY79.34

1024

128

e200

2

64

ISO 26262

2

2

3

-40 to 125

3

3.6

SPC5643LFF2MLQ1
数据手册

正常供应

LQFP144

144

10K @ CNY88.74 - 10K @ CNY90.68

1024

128

e200

2

120

ISO 26262

2

2

3

-40 to 125

3

3.6

SPC5643LFF2MMM1
数据手册

正常供应

LFBGA257

257

10K @ CNY96.07 - 10K @ CNY98.01

1024

128

e200

2

120

ISO 26262

2

2

3

-40 to 125

3

3.6

SPC5643LFK0MLL6
数据手册

正常供应

LQFP100

100

10K @ CNY79.34 - 10K @ CNY81.35

1024

128

e200

2

120

ISO 26262

2

2

3

-40 to 125

3

3.6

SPC5643LFK0MLQ1
数据手册

正常供应

LQFP144

144

10K @ CNY88.74 - 10K @ CNY90.68

1024

128

e200

2

120

ISO 26262

2

2

3

-40 to 125

3

3.6

SPC5643LFK0MMM1
数据手册

正常供应

LFBGA257

257

10K @ CNY96.07 - 10K @ CNY98.01

1024

128

e200

2

120

ISO 26262

2

2

3

-40 to 125

3

3.6
