产品详情

支持的器件

处理器和微控制器

超高可靠性的MPC56xx MCU

MPC564xL: 超可靠的双核32位MCU，适用于汽车和工业控制应用

电源管理

集成开关稳压器

MC33730: 带多个线性稳压器的电源

特征

MKT564L套件特性

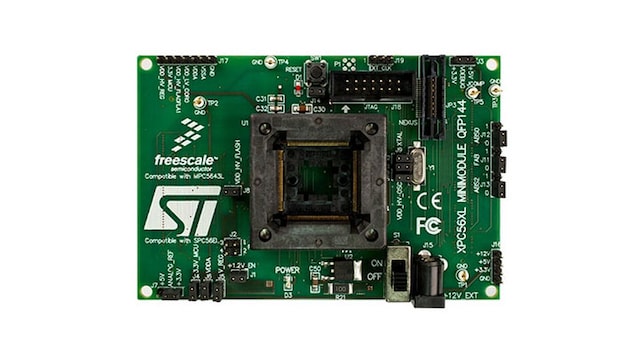

XKT564L144S1M (套件)包含一个XDC564L144S1M (迷你模块电路板)，有一个插槽，用于采用144 LQFP封装的MPC5643L/XKT564L257S1M (套件)包含一个XDC564L257S1M (迷你模块电路板) ，有一个插槽，用于采用257MAPBGA封装的MPC5643L。
The Mini-Module Boards can be used as a standalone board by providing external 12V power supply input
XPC56xxMB2主板
带LED指示灯的电源开关
带滤波器和LED指示灯的复位按钮
XPC56xx资源CD-ROM
P&E USB-ML-PPCNEXUS硬件接口线
USB A-B线缆

XPC56xxMB2电路板特性

12 V直流电源输入圆柱形接头
两个CAN通道，支持跳线
- 一个通道带高速收发器
- 另一个通道带低速容错和高速收发器(可通过跳线进行选择)
两个LIN通道，支持跳线
- 一个通道带收发器并填充了引脚接头
- 一个通道为空通道
一个SCI通道，支持跳线
两个FlexRay通道，支持跳线
- 一个通道，带收发器和DB9公接头
- 一个通道为空通道
4个用户自定义按钮，支持跳线和极性选择
4个用户自定义LED，支持跳线
1个针对模拟电压输入的电位计

购买选项

点击展开

XKT564L100S1M
Eval Kit for Qorivva MPC5643L, Includes XPC56xxMB2 Motherboard and XDC564L100S1M daughter card.
- XPC56xxMB2主板
- XDC564L144S1M或XDC564L257S1M迷你模块
- XPC56xx资源CD-ROM
- P&E USB-ML-PPCNEXUS硬件接口线
- USB A-B线缆
- 恩智浦保修卡

CNY 5,164.22
数量为 1

发行人	地区	库存	库存日期	订购

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

点击展开

XDC564L100S1M
Daughter Card for Qorivva MPC5643L LQFP 100, with socket adapter.

CNY 861.90
数量为 1

发行人	地区	库存	库存日期	订购

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

点击展开

MDC564L257S1M
Daughter Card for Qorivva MPC5643L MAPBGA 257.

CNY 861.90
数量为 1

发行人	地区	库存	库存日期	订购

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

点击展开

MDC564L144S1M
Daughter Card for Qorivva MPC5643L LQFP 144.

CNY 861.90
数量为 1
- 供货情况: 待定库存

加入购物车

发行人	地区	库存	库存日期	订购

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

点击展开

MDC564L100S1M
Daughter Card for Qorivva MPC5643L LQFP 100.

CNY 861.90
数量为 1

发行人	地区	库存	库存日期	订购

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

点击展开

MKT564L257S1M
Eval Kit for Qorivva MPC5643L, Includes MPC56xxMB2 Motherboard and MDC564L257S1M daughter card.

CNY 7,390.79
数量为 1
- 供货情况: 待定库存

加入购物车

发行人	地区	库存	库存日期	订购

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

点击展开

MKT564L144S1M
Eval Kit for Qorivva MPC5643L, Includes MPC56xxMB2 Motherboard and MDC564L144S1M daughter card.

CNY 3,569.70
数量为 1
- 供货情况: 待定库存

加入购物车

发行人	地区	库存	库存日期	订购

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

点击展开

MKT564L100S1M
Eval Kit for Qorivva MPC5643L, Includes MPC56xxMB2 Motherboard and MDC564L100S1M daughter card.

CNY 3,569.70
数量为 1

发行人	地区	库存	库存日期	订购

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

文档

快速参考恩智浦文档类别.

3 文件

^支持信息
Component list for xPC56XXMB亮点

PDF版本 AJun 12, 200814.8 KBXPC56XXMBCLEnglish
^用户指南
XPC56xxMEVB User Manual亮点

PDF版本 1Jun 12, 20082.8 MBXPC56XXMEVBUMEnglish
^用户指南
MPC564xL EVB Freescale User Manual亮点

PDF版本 1.02Aug 21, 20125.0 MBXPC564XLEVB_UMEnglish

设计资源

设计文件

快速参考恩智浦设计文件类型.

3 设计文件

^{印刷电路板与电路图}
XPC56XLADPT144S Schematic and Component Placement

PDF版本 BAug 21, 2012 00:00:00188.9 KBXPC56XLADPT144S_SCH
请登录
下载Toggle Dropdown
- 加入列队
- 从列队中删除
- 文档较大时推荐使用。
- 查看列队
^{印刷电路板与电路图}
XPC56XLADPT100S Schematic

PDF版本 AAug 21, 2012 00:00:0068.4 KBXPC56XLADPT100S_SCH
请登录
下载Toggle Dropdown
- 加入列队
- 从列队中删除
- 文档较大时推荐使用。
- 查看列队
^{印刷电路板与电路图}
XPC56XLADPT257BS Schematic and Component Placement

PDF版本 BAug 21, 2012 00:00:00225.0 KBXPC56XLADPT257BS_SCH
请登录
下载Toggle Dropdown
- 加入列队
- 从列队中删除
- 文档较大时推荐使用。
- 查看列队
