面向MPC5643L和MC33908 SBC的评估系统

KIT908-5643EVM
正常供应

滚动图片以放大

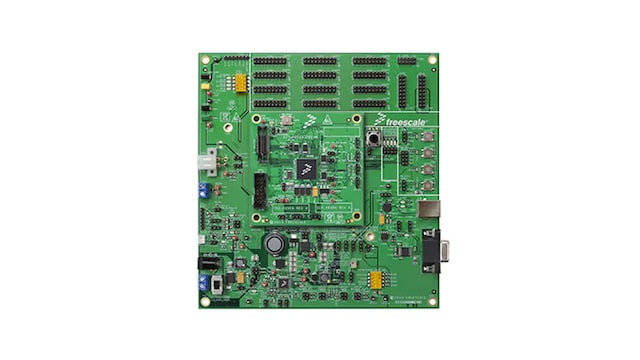

该评估系统包含两个电路板：KIT33908MBEVBE主板(装配有MC33908系统基础芯片)和KITMPC5643DBEVM子板。这两种套件共同构成一个安全生态体系的基础。该生态体系能够达到ISO26262规定的最高功能安全级别。

子板附带演示软件。该软件已预装到MPC5643L的闪存中。此代码提供了正确初始化和操作MC33908所需的算法和程序。

产品详情

支持的器件

电源管理

安全SBC

  • MC33908: Safe System Basis Chip with Buck and Boost DC/DC up to 1.5 A on Vcore

处理器和微控制器

超高可靠性的MPC56xx MCU

  • MPC564xL: 超可靠的双核32位MCU，适用于汽车和工业控制应用

特征

主要特性

  • 启动时启用或禁用
  • 点火钥匙开关
  • LIN总线
  • CAN总线

数据连接

  • IO接头(IO_0至IO_5)

调试

  • 调试接头(SPI总线，CAN数字，LIN数字，RSTB，FSOB，INTB，调试，MUX_OUT)

组件

  • 向LED发送信号，以表明信号或稳压器的状态

电源管理

  • VBAT电源可以通过电源插头(2.0 mm)或Phoenix接头供电
  • VCORE配置：1.23 V或3.3 V
  • VCCA配置：5.0 V/3.3 V
  • VAUX配置：3.3 V或5.0 V

购买选项

KIT908-5643EVM-Image

点击展开

  • KIT908-5643EVM
    正常供应

  • MC33908MB and MPC5643 daughter board system kit.

    • PWA，KITMPC5643DBEVM组装和测试好的评估板/模块，放在防静电袋中
    • PWA，KIT33908MBEVBE组装和测试好的评估板/模块，放在防静电袋中
    • 线缆，6英尺长USB2.0 A-M至B-M 1
    • 12VDC 4.2A电源，带美国线缆和适配器CE、FCC。PSE认证1
    • WARRANTY CARD, NXP 1
    • 快速入门指南，模拟工具1
  • $910.80 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
N true 0 TSPKIT908-5643EVMzh 6 参考手册 Reference Manual t877 1 数据手册 Data Sheet t520 2 用户指南 User Guide t792 3 zh 5 1 MC33908AE 3.0 English The 33907_8 devices are multi-output, power supply, integrated circuit, including HSCAN transceiver, dedicated to the automotive market. Archived content is no longer updated and is made available for historical reference only 1383346521290695995882 TSP 1.3 MB None None documents None 1383346521290695995882 /docs/en/data-sheet/MC33907_8.pdf 1346790 /docs/en/data-sheet/MC33907_8.pdf MC33907_8 N N 2017-08-29 MC33907_8, Power System Basis Chip with High Speed CAN Transceiver - Data Sheet /docs/en/data-sheet/MC33907_8.pdf /docs/en/data-sheet/MC33907_8.pdf Data Sheet N Y 980000996212993340 2024-09-09 pdf N en Feb 14, 2014 Data Sheet t520 数据手册 Data Sheet Y N MC33907_8, Power System Basis Chip with High Speed CAN Transceiver - Data Sheet 2 10 English The MPC5643L family of 32-bit microcontrollers is the latest achievement in integrated automotive application controllers. It belongs to an expanding range of automotive-focused products designed to address electrical hydraulic power steering (EHPS), electric power steering (EPS) and airbag applications. This Qorivva MPC5643L has the following features: High-performance e200z4d dual core, Core frequency as high as 120 MHz, 128 KB on-chip SRAM. 1254494782176717645750 TSP 1.2 MB None None documents None 1254494782176717645750 /docs/en/data-sheet/MPC5643L.pdf 1203994 /docs/en/data-sheet/MPC5643L.pdf MPC5643L N N 2016-10-31 MPC5643L Microcontroller - Data Sheet /docs/en/data-sheet/MPC5643L.pdf /docs/en/data-sheet/MPC5643L.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf N en Feb 8, 2022 Data Sheet t520 数据手册 Data Sheet Y N MPC5643L Microcontroller - Data Sheet 3 1.0 English The KITMPC5643DBEVM evaluation board is populated with a MPC5643L safety oriented microcontroller from the Qorivva family. The KITMPC5643DBEVM is a daughter board that extends the KIT33908MBEVBE kit (populated with MC33908 System Basis chip). Together, these two kits create a platform that forms a base for a Safety Ecosystem, which can reach the highest level in functional safety as defined by the ISO26262. 1395442917129720684663 TSP 5.0 MB Registration without Disclaimer None documents Y Extended 1395442917129720684663 /secured/assets/documents/en/user-guide/KTMPC5643DBUG.pdf 4995056 /secured/assets/documents/en/user-guide/KTMPC5643DBUG.pdf KTMPC5643DBUG Y N 2016-10-31 KITMPC5643DBEVM, Evaluation Daughter Board - User Guide /webapp/Download?colCode=KTMPC5643DBUG&docLang=en /secured/assets/documents/en/user-guide/KTMPC5643DBUG.pdf User Guide N Y 132339537837198660 2023-06-18 pdf Y en Mar 21, 2014 User Guide t792 用户指南 User Guide Y N KITMPC5643DBEVM, Evaluation Daughter Board - User Guide 4 10 English The Qorivva MPC5643L microcontroller is based on the Power Architecture &#174; and targets the electric power steering, chassis, and safety applications that require a high safety integrity level. The MPC5643L is a SafeAssure<sup>&#174;</sup> solution. All MPC5643L devices are built around a dual core safety platform with an innovative safety concept targeting ISO26262 ASILD. The device&#8217;s host processor core is a member of the e200z4 Power Architecture &#174; compatible core family. 1254927550137690445517 TSP 22.6 MB Registration without Disclaimer None documents Extended 1254927550137690445517 /secured/assets/documents/en/reference-manual/MPC5643LRM.pdf 22641584 /secured/assets/documents/en/reference-manual/MPC5643LRM.pdf MPC5643LRM Y N 2016-10-31 Freescale MPC5643L Microcontroller - Reference Manual /webapp/Download?colCode=MPC5643LRM&docLang=en /secured/assets/documents/en/reference-manual/MPC5643LRM.pdf Reference Manual N Y 500633505221135046 2022-12-07 pdf Y en Aug 10, 2013 Reference Manual t877 参考手册 Reference Manual Y N Freescale MPC5643L Microcontroller - Reference Manual 5 1.0 English The KIT33908MBEVBE evaluation mother board demonstrates the functionality of the MC33908 power system basis chip. This IC is equipped with an Intelligent Power Management System including safety features meeting the latest ISO26262 automotive functional safety standard. 1395360891749724798500 TSP 8.0 MB None None documents Y None 1395360891749724798500 /docs/en/user-guide/KT33908MBUG.pdf 8047668 /docs/en/user-guide/KT33908MBUG.pdf KT33908MBUG N N 2016-10-31 KIT33908MBEVBE, Evaluation Mother Board - User Guide /docs/en/user-guide/KT33908MBUG.pdf /docs/en/user-guide/KT33908MBUG.pdf User Guide N Y 132339537837198660 2024-01-19 pdf N en Mar 20, 2014 User Guide t792 用户指南 User Guide Y N KIT33908MBEVBE, Evaluation Mother Board - User Guide false zh 1 6 1.0 English A library consisting of drivers for basic modules included in the Qorivva MPC5643L 1395450326576690084151 TSP 1.3 MB Registration without Disclaimer None documents Y Extended 1395450326576690084151 /secured/assets/documents/en/user-guide/KTMPC5643DBSWUG.pdf 1260232 /secured/assets/documents/en/user-guide/KTMPC5643DBSWUG.pdf KTMPC5643DBSWUG Y N 2016-10-31 Freescale MCP5643L Basic Drivers - User Guide /webapp/Download?colCode=KTMPC5643DBSWUG&docLang=en /secured/assets/documents/en/user-guide/KTMPC5643DBSWUG.pdf User Guide N 132339537837198660 2024-01-19 pdf Y en Apr 22, 2014 User Guide t792 用户指南 User Guide Y N Freescale MCP5643L Basic Drivers - User Guide false zh false 0 KIT908-5643EVM downloads zh-Hans true 0 Y TSP 参考手册 1 /secured/assets/documents/en/reference-manual/MPC5643LRM.pdf 2016-10-31 1254927550137690445517 TSP 4 Aug 10, 2013 Reference Manual 参考手册 The Qorivva MPC5643L microcontroller is based on the Power Architecture &#174; and targets the electric power steering, chassis, and safety applications that require a high safety integrity level. The MPC5643L is a SafeAssure<sup>&#174;</sup> solution. All MPC5643L devices are built around a dual core safety platform with an innovative safety concept targeting ISO26262 ASILD. The device&#8217;s host processor core is a member of the e200z4 Power Architecture &#174; compatible core family. Registration without Disclaimer /secured/assets/documents/en/reference-manual/MPC5643LRM.pdf English 22641584 None Reference Manual 2022-12-07 Y /webapp/Download?colCode=MPC5643LRM&docLang=en Freescale MPC5643L Microcontroller - Reference Manual /secured/assets/documents/en/reference-manual/MPC5643LRM.pdf documents 500633505221135046 Reference Manual N Y en Extended Y t877 pdf 10 Y N Freescale MPC5643L Microcontroller - Reference Manual 22.6 MB MPC5643LRM N 1254927550137690445517 数据手册 2 /docs/en/data-sheet/MC33907_8.pdf 2017-08-29 1383346521290695995882 TSP 1 Feb 14, 2014 Data Sheet 数据手册 The 33907_8 devices are multi-output, power supply, integrated circuit, including HSCAN transceiver, dedicated to the automotive market. Archived content is no longer updated and is made available for historical reference only None /docs/en/data-sheet/MC33907_8.pdf English 1346790 None Data Sheet 2024-09-09 N /docs/en/data-sheet/MC33907_8.pdf MC33907_8, Power System Basis Chip with High Speed CAN Transceiver - Data Sheet /docs/en/data-sheet/MC33907_8.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 3.0 N N MC33907_8, Power System Basis Chip with High Speed CAN Transceiver - Data Sheet MC33908AE 1.3 MB MC33907_8 N 1383346521290695995882 /docs/en/data-sheet/MPC5643L.pdf 2016-10-31 1254494782176717645750 TSP 2 Feb 8, 2022 Data Sheet 数据手册 The MPC5643L family of 32-bit microcontrollers is the latest achievement in integrated automotive application controllers. It belongs to an expanding range of automotive-focused products designed to address electrical hydraulic power steering (EHPS), electric power steering (EPS) and airbag applications. This Qorivva MPC5643L has the following features: High-performance e200z4d dual core, Core frequency as high as 120 MHz, 128 KB on-chip SRAM. None /docs/en/data-sheet/MPC5643L.pdf English 1203994 None Data Sheet 2022-12-07 N /docs/en/data-sheet/MPC5643L.pdf MPC5643L Microcontroller - Data Sheet /docs/en/data-sheet/MPC5643L.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 10 N N MPC5643L Microcontroller - Data Sheet 1.2 MB MPC5643L N 1254494782176717645750 用户指南 3 /secured/assets/documents/en/user-guide/KTMPC5643DBUG.pdf 2016-10-31 1395442917129720684663 TSP 3 Mar 21, 2014 User Guide 用户指南 The KITMPC5643DBEVM evaluation board is populated with a MPC5643L safety oriented microcontroller from the Qorivva family. The KITMPC5643DBEVM is a daughter board that extends the KIT33908MBEVBE kit (populated with MC33908 System Basis chip). Together, these two kits create a platform that forms a base for a Safety Ecosystem, which can reach the highest level in functional safety as defined by the ISO26262. Y Registration without Disclaimer /secured/assets/documents/en/user-guide/KTMPC5643DBUG.pdf English 4995056 None User Guide 2023-06-18 Y /webapp/Download?colCode=KTMPC5643DBUG&docLang=en KITMPC5643DBEVM, Evaluation Daughter Board - User Guide /secured/assets/documents/en/user-guide/KTMPC5643DBUG.pdf documents 132339537837198660 User Guide N Y en Extended Y t792 pdf 1.0 Y N KITMPC5643DBEVM, Evaluation Daughter Board - User Guide 5.0 MB KTMPC5643DBUG N 1395442917129720684663 /docs/en/user-guide/KT33908MBUG.pdf 2016-10-31 1395360891749724798500 TSP 5 Mar 20, 2014 User Guide 用户指南 The KIT33908MBEVBE evaluation mother board demonstrates the functionality of the MC33908 power system basis chip. This IC is equipped with an Intelligent Power Management System including safety features meeting the latest ISO26262 automotive functional safety standard. Y None /docs/en/user-guide/KT33908MBUG.pdf English 8047668 None User Guide 2024-01-19 N /docs/en/user-guide/KT33908MBUG.pdf KIT33908MBEVBE, Evaluation Mother Board - User Guide /docs/en/user-guide/KT33908MBUG.pdf documents 132339537837198660 User Guide N Y en None Y t792 pdf 1.0 N N KIT33908MBEVBE, Evaluation Mother Board - User Guide 8.0 MB KT33908MBUG N 1395360891749724798500 /secured/assets/documents/en/user-guide/KTMPC5643DBSWUG.pdf 2016-10-31 1395450326576690084151 TSP 6 Apr 22, 2014 User Guide 用户指南 A library consisting of drivers for basic modules included in the Qorivva MPC5643L Y Registration without Disclaimer /secured/assets/documents/en/user-guide/KTMPC5643DBSWUG.pdf English 1260232 None User Guide 2024-01-19 Y /webapp/Download?colCode=KTMPC5643DBSWUG&docLang=en Freescale MCP5643L Basic Drivers - User Guide /secured/assets/documents/en/user-guide/KTMPC5643DBSWUG.pdf documents 132339537837198660 User Guide N en Extended Y t792 pdf 1.0 Y N Freescale MCP5643L Basic Drivers - User Guide 1.3 MB KTMPC5643DBSWUG N 1395450326576690084151 true Y Tools
