K32W041AM/A：高性能、低功耗的安全MCU，适用于Zigbee®、Thread和低功耗蓝牙®5.0，具有高发射功率选项

K32W041AM-A
正常供应

滚动图片以放大

样品阶段

K32W0x系列旨在搭载新一代低电流的多协议无线物联网设备，支持Zigbee、Thread和低功耗蓝牙。K32W041AM和K32W041A系列设备支持更大范围和扩展的内存优化，以促进家庭和楼宇自动化、智能照明、智能锁、网关和路由器。

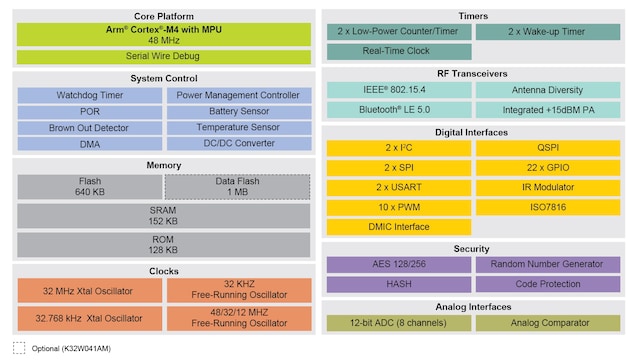

K32W041A/K32W041AM包括一个兼容2.4 GHz低功耗蓝牙5（同时支持八个连接）的收发器，一个兼容2.4 GHz IEEE 802.15.4的收发器以及模拟和数字外设的全面组合。凭借640 KB嵌入式闪存、152 KB RAM内存、带有K32W041AM的额外1 MB数据闪存以及对无线（OTA）更新的支持，K32W0x系列提供了可扩展性，可满足各种内存需求。此外，K32W041AM/A将无线电输出功率扩展到+15dBm。

这些设备包括一个10通道PWM、两个定时器、一个RTC/告警定时器、一个窗口化看门狗定时器（WWDT）、两个USART、两个SPI接口、两个I2C接口、一个DMIC子系统，包括一个双通道PDM麦克风接口和语音活动检测器、一个12位ADC、温度传感器和一个比较器。Arm Cortex-M4是一款32位内核，运行频率为48MHz，具有低功耗、易调试、支持模块高度集成等多种系统增强优势。

K32W0x、JN18x和QN90x0系列的设备均支持通用软件堆栈：Zigbee、OpenThread和低功耗蓝牙。

本页介绍的产品处于样品阶段。此处的产品技术规格和信息如有变更，恕不另行通知。

如需了解更多信息和样品供货情况，请联系当地的销售机构。
