ZigBee和IEEE802.15.4无线微控制器，具有512 kB闪存，32 kB RAM

JN5179
正常供应

滚动图片以放大

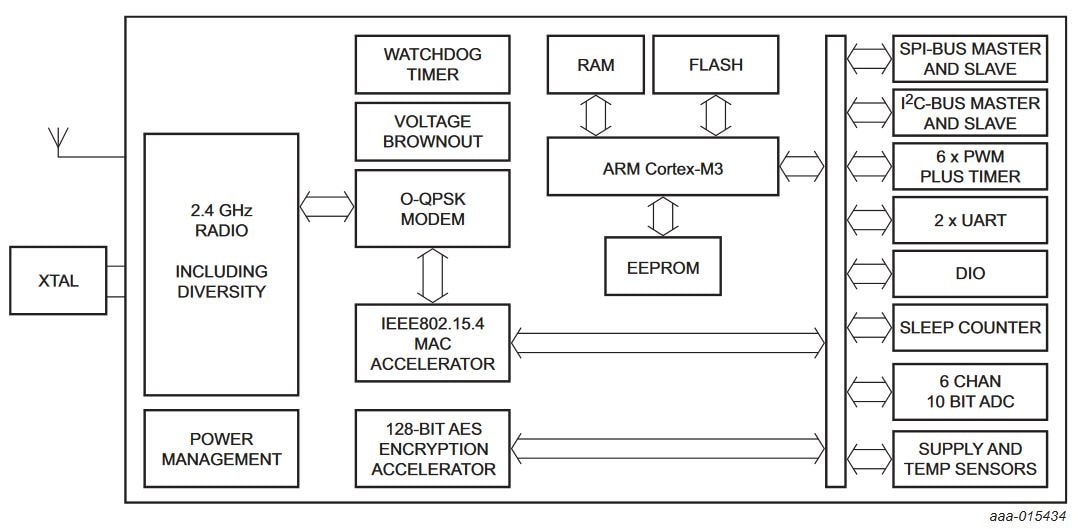

JN5179器件是超低功耗、高性能无线微控制器，可优化为智能家居和智能照明网络中ZigBee 3.0应用的平台。它具有ARM Cortex-M3处理器，提供调试功能和可编程时钟速度。JN5179器件具有512 kB的嵌入式Flash存储器以及32 kB的RAM和4 kB的EEPROM。嵌入式Flash存储器可以支持“无线”固件更新。此器件还包括符合IEEE802.15.4标准的2.4 GHz收发器以及丰富的片上模拟和数字外设。

无线发射功率可配置为高达+10 dBm输出功率。极低的接收工作电流(正常工作模式低至12.7 mA以及睡眠模式低至0.6 μA)实现了更长的电池寿命，可直接使用钮扣电池操作。借助其节能模式，该器件是电池供电节点的理想选择。片上外设包括故障安全型I²C总线、SPI总线端口(主端口和从端口)和6路模数转换器，可直接支持广泛的应用，而无需额外硬件。

如需了解支持文档，请单击此处。

产品详情

特征

  • 可实现较长电池寿命(10年以上)的极低电流解决方案
  • 极低接收电流，为接收器始终在线的节点提供低待机功率
  • 集成式功率放大器，适合远程和耐用通信
  • 大型嵌入式Flash存储器，支持无线(OTA)固件更新，无需外部Flash存储器
  • 运行通信协议栈和应用的单芯片器件
  • 支持多个网络协议栈
  • 专为照明应用定制的外设
  • 系统BOM中元器件数量少、成本低
  • 灵活的传感器接口选项
  • 封装
    • 6 x 6 mm HVQFN40, 0.5 mm间距
    • 无铅，符合RoHS标准
  • 温度范围：-40 °C至+125 °C
  • 符合2.4 GHz IEEE802.15.4标准
  • 接收电流为14.8 mA，低功耗接收模式为12.7 mA
  • 接收器灵敏度为-96 dBm
  • 可配置的发射功率，可降低电流消耗，例如：
    • 10 dBm, 22.5 mA
    • 8.5 dBm, 19.6 mA
    • 3 dBm, 14 mA
  • 无线链路预算 106 dB
  • 最大输入电平+10 dBm
  • 晶体振荡器频率的温度漂移补偿
  • 2.0 V至3.6 V的电池工作电压
  • 天线分集(Auto RX)
  • 集成式超低功耗睡眠振荡器(0.6 μA)
  • 100 nA深度睡眠电流，具有从外部事件中唤醒的功能
  • 128位AES安全处理器
  • 具有数据包格式的MAC加速器、CRC、地址检查、自动确认、定时器
  • ARM Cortex-M3 CPU，支持调试
  • 512 kB闪存、32 kB RAM和4 kB EEPROM
  • OTA固件升级功能
  • 32 MHz时钟频率，可选地降至1 MHz，适合低功耗运行
  • 支持双PAN ID
  • 故障安全型I²C总线接口，可作为主接口或从接口
  • 8个定时器 (6个PWM和两个定时器/计数器)
  • 两个低功率睡眠计数器
  • 两个UART，一个带流量控制
  • SPI总线主从端口，两个可同时选择
  • 可实现高效编码的可变指令宽度
  • 多级指令管线
  • 保证有100k写操作的数据EEPROM
  • 具有8个可编程阈值的电源电压监控器
  • 电池电压和温度传感器
  • 6输入10位ADC
  • 模拟比较器
  • ADC数字监控器
  • 看门狗定时器和POR
  • 低功耗模式控制器
  • 最多18个数字IO (DIO)和两个数字输出引脚

更多

购买/参数

1 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

JN5179
数据手册

替换部件: JN5189HN

正常供应
