AP13192USLK ZigBee-ready RF Transceiver Student Learning Kit

ZIGBEESLK

滚动图片以放大

Easily add RF capability to course or projects

Can be used for Simple MAC or Zigbee communications



Common Course Applications

  • Wireless sensing and control
  • Introduction to communication protocols
  • Wireless home automation

Use for courses/projects that…

  • require low-power, medium data rate wireless communication
  • want to show a variety of network deployment configuration
  • are targeted for intermediate to advanced level

This application module can be...

  • connected directly to a Application Module
    • plug the RF Transceiver directly into the application module (*connector gender changers may be required)
  • connected with the NXP® project board (PBMCUSLK)
    • increased I/O features
    • more hand-on approach
    • accepts multiple microcontrollers
    • integrated BDM interface
    • large bread-board area
  • Purchase AP13192USLK to receive TWO RF-Transceivers
更多

购买选项

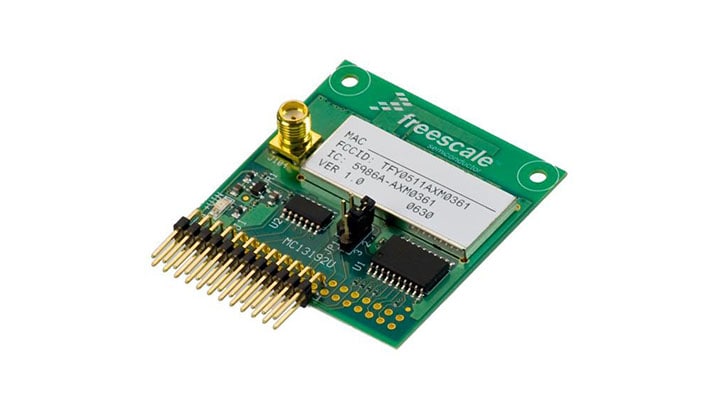

AP13192USLK-Image

点击展开

  • AP13192USLK
    正常供应

  • ZIGBEE MODULE FOR UNIVERSITY PROJECT BRD.

  • 数量为 1
从分销商处购买
