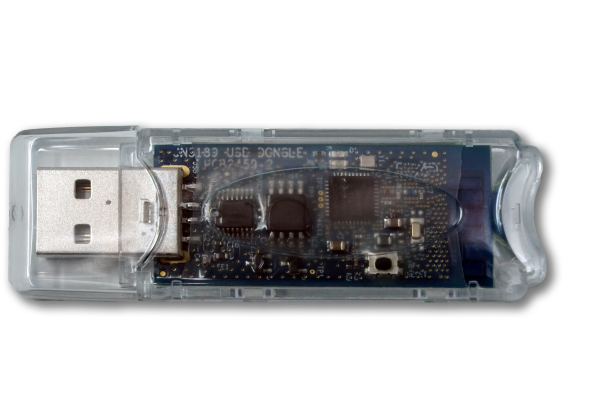

OM15080-K32W：K32W USB Dongle，适用于低功耗蓝牙、Zigbee和Thread网络

OM15080-K32W

滚动图片以放大

OM15080-K32W可用作Zigbee网络中的节点，通常为Zigbee控制桥、Zigbee协调器或数据包嗅探器。它也可用于Thread无线网络，通常作为边界路由器或网络/无线协处理器(NCP/RCP)。此外，USB Dongle可用作低功耗蓝牙无线网络节点，提供与PC或其他支持USB设备的简单连接。

产品详情

支持的器件

无线连接

Zigbee

  • JN5189_88_T: JN5189/88 (T)：高性能、超低功耗MCU，适用于Zigbee®和Thread，内置NFC选件

低功耗蓝牙

  • QN9090-30: QN9090/30(T): Bluetooth LE MCU带有Arm®Cortex®-M4 CPU, 高能效的模数外设以及NFC标签选项

多协议MCU

  • K32W061_41: K32W061/41：适用于Zigbee®、Thread和低功耗蓝牙®5.0的高性能、超低功耗的安全微控制器，内置NFC选件

特征

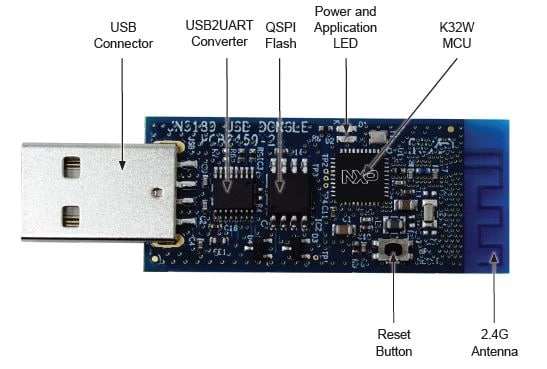

K32W061

  • 高达48MHz Cortex-M4
  • 640 KB闪存
  • 152 KB RAM
  • 128 KB ROM
  • 带有EEPROM的NFC NTAG选件
  • 符合2.4 GHz IEEE 802.15.4和低功耗蓝牙标准

连接

  • 集成PCB天线
  • USB连接器

能源管理

  • USB端口

能源管理

  • 兼容IEEE 802.15.4和低功耗蓝牙的PCB天线

购买选项

OM15080-K32W-Image

点击展开

  • OM15080-K32W
    正常供应

  • K32W USB Dongle for Bluetooth LE, Zigbee and Thread networks.

    • 1个 USB加密狗
  • $33.35 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 30
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
