带抑制唤醒功能的MSDI

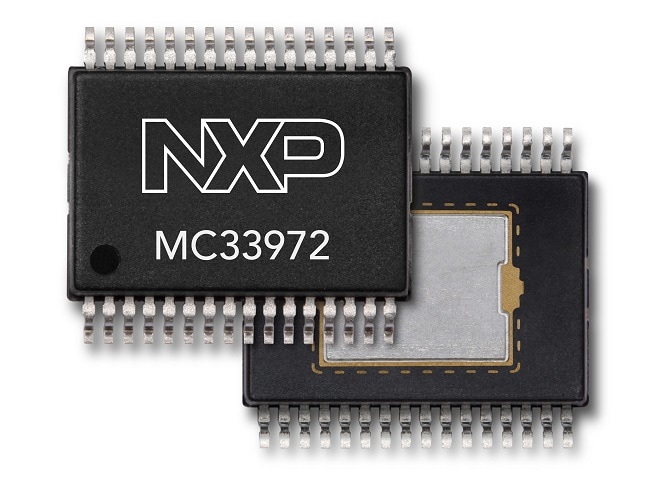

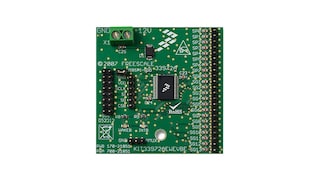

MC33972
正常供应

滚动图片以放大

恩智浦MC33972多开关检测接口具有抑制唤醒功能，可检测多达22个开关触点的关闭和开启。

  • 开关状态(开启或关闭)会传输至MCU
  • 该器件还具备一个22对1模拟复用器，可将输入读取为模拟值。模拟输入信号经过缓冲，并且在AMUX输出引脚上提供以供MCU读取
  • 两种工作模式：
    • 正常模式：允许对器件进行编程，在监测开关状态变化时，为开关触点提供上拉或下拉电流。
    • 睡眠模式：提供低静态电流，使MC33972适用于需要低睡眠状态电流的汽车和工业控制产品

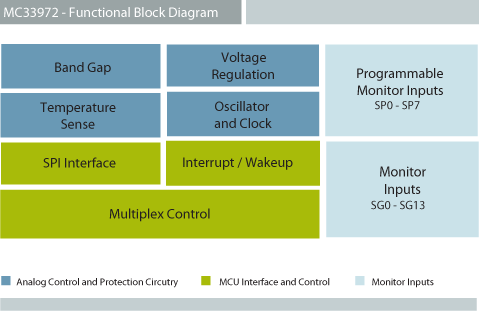

框图

恩智浦MC33972电源启动

NXP MC33972 Power Actuation Block Diagram
获取框图PDF

特性

主要特性

  • 使用3.3V/5.0V SPI协议可直接与微处理器连接
  • 可选择状态更改的唤醒功能
  • 8个可编程输入(电池开关或接地开关)
  • 14个开关接地输入
  • 开关状态更改时主动中断(INT)
  • 开关电压范围-14–VPWR
  • 工作电压5.5V–26V(VPWR)
  • 动力控制、信号调适和开关监测器件功能
  • 32封装焊端数
  • 封装类型：SSOP32
  • 工作环境温度：–40至125°C

购买/参数

3 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

器件功能

封装端接数

负载电源电压（最小）（V）

负载电源电压（最大）（V）

电源电压[最小]（V）

电源电压[最大]（V）

接口和输入控制

Ambient Operating Temperature (Min to Max) (℃)

MC33972ATEK
数据手册

powertrain control, signal conditioning, switch monitoring

32

5.5

26

3.1

5.25

SPI

-40 to 125

MC33972ATEW
数据手册

signal conditioning, switch monitoring

32

5.5

26

3.1

5.25

SPI

-40 to 125

MC33972TEW
数据手册

signal conditioning, switch monitoring

32

5.5

26

3.1

5.25

SPI

-40 to 125
