FRDM-33926ESEVM: Freedom Kit - MC33926, 5.0 A Throttle H-B QFN

FRDM-33926ESEVM 正常供应

滚动图片以放大

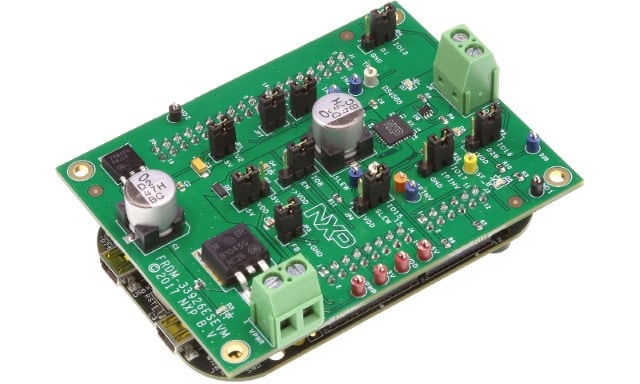

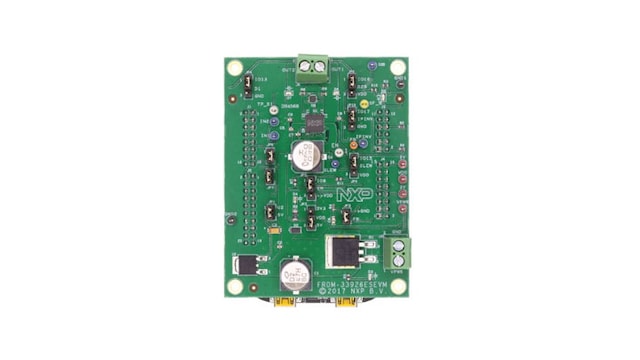

The Evaluation Kit features the 33926, which is a monolithic H-Bridge Power IC designed primarily for automotive electronic throttle control, but is applicable to any low-voltage DC servo motor control application within the current and voltage limits stated in this specification.

The 33926 is able to control inductive loads with currents up to 5.0 A peak. RMS current capability is subject to the degree of heatsinking provided to the device package. Internal peak-current limiting (regulation) is activated at load currents above 6.5 A ± 1.5 A output loads can be pulse width modulated (PWM’ed) at frequencies up to 20 kHz supported with FRDM-KL25Z

产品详情

支持的器件

电源管理

动力和发动机控制

  • MC33926: H桥，有刷直流电机驱动器，5-28 V，5 A，20 kHz

购买选项

FRDM-33926ESEVM-Image

点击展开

  • FRDM-33926ESEVM
    正常供应

  • Freedom Kit for MC33926 H-Bridge, Brushed DC Motor Driver.

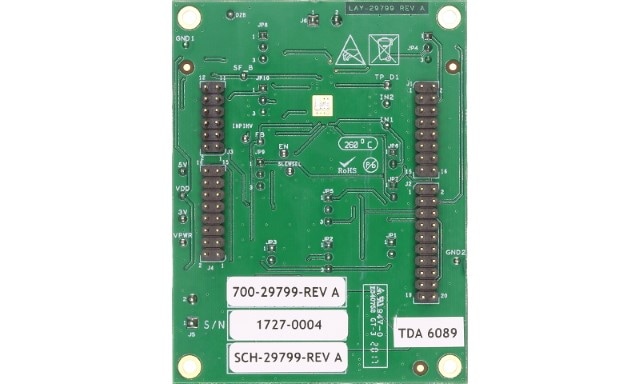

    • MC33926ES evaluation board

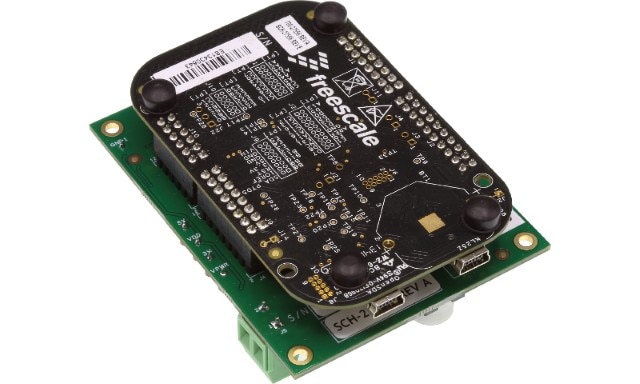

    • FRDM-KL25Z evaluation board
    • USB A_B cable
  • CNY 129.29
  • 数量为 1
    • 供货情况: 待定库存
