MPC5748G安全以太网网关参考设计

MPC5748G-GW-RDB
正常供应

滚动图片以放大

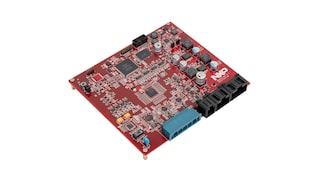

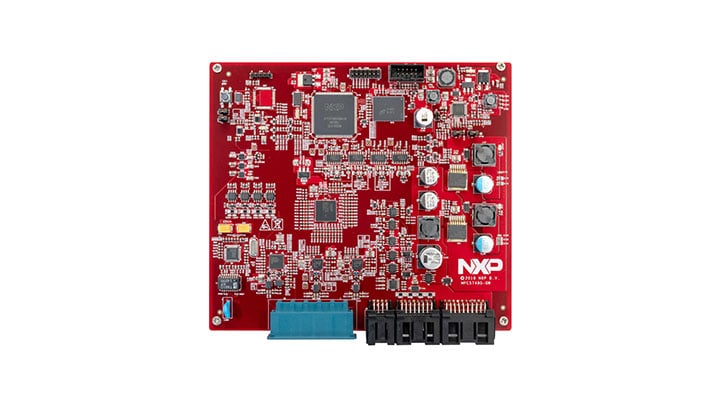

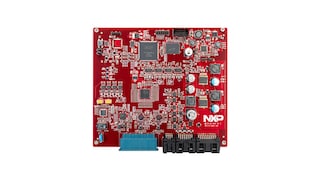

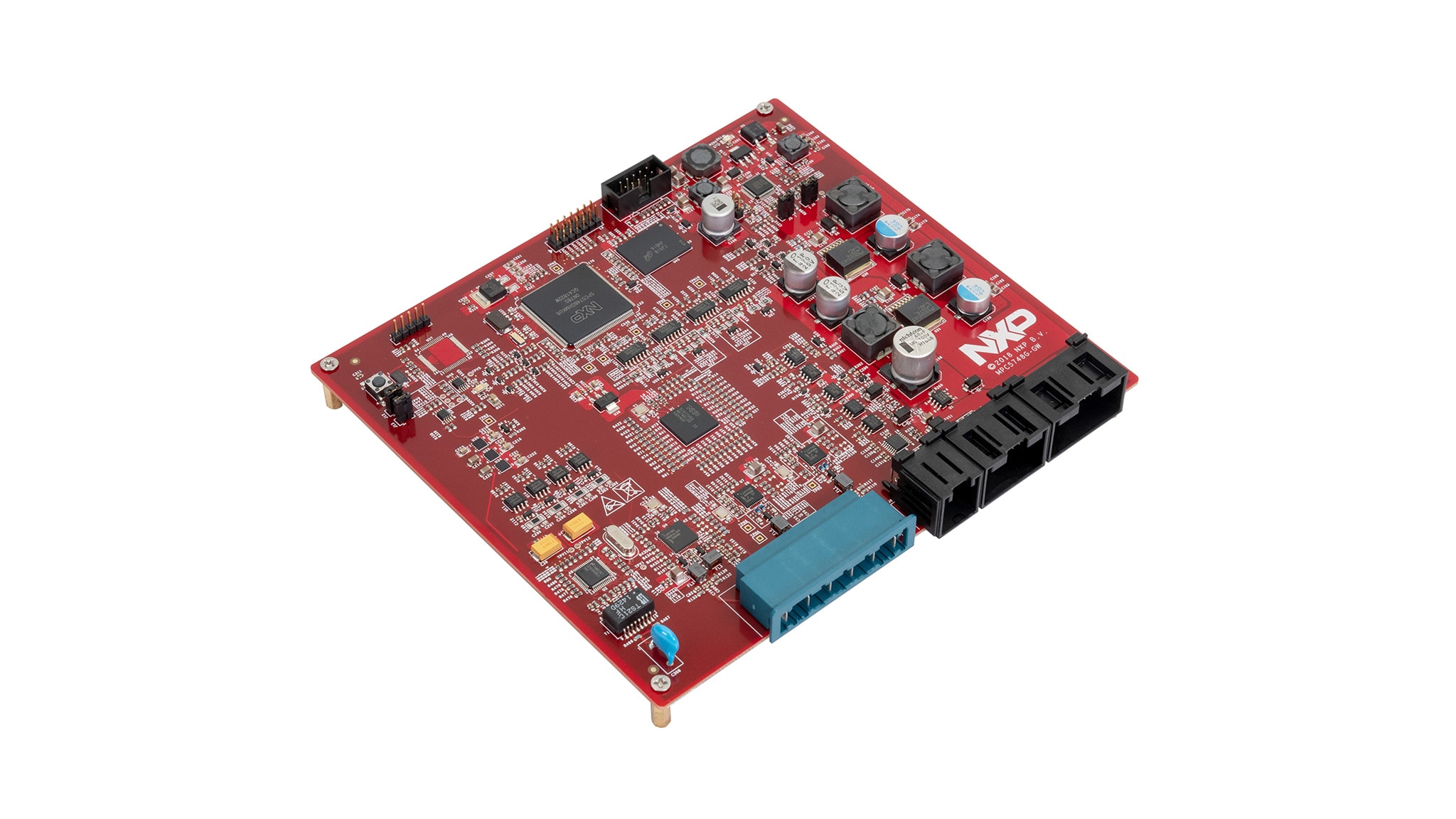

MPC5748G-GW-RDB是提供A样本(如以太网网关ECU)的参考设计板，支持安全的无线(OTA)管理和功能安全，以帮助加快网关产品的开发和生产。

基于32位Power Architecture®MPC5748G超可靠微控制器，MPC5748G-GW-RDB提供最多3个e200内核、硬件安全模块(HSM)、多个通信接口和灵活的存储器选项。

安全的汽车以太网网关参考设计-简介

框图

安全以太网网关

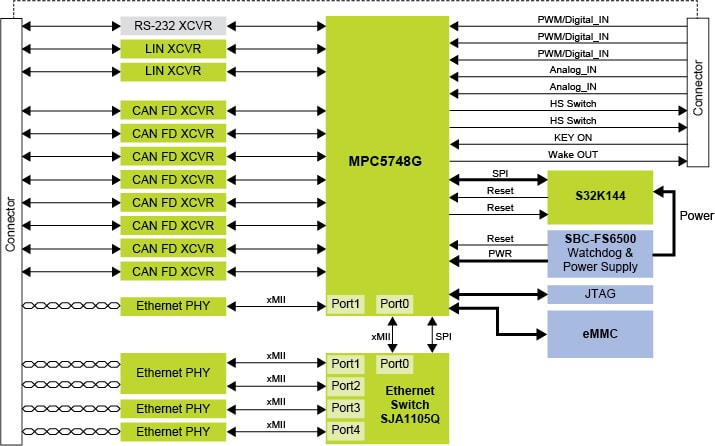

MPC5748G-GW-RDB Block Diagram
获取框图PDF

支持的器件

处理器和微控制器

超高可靠性的MPC57xx MCU

  • MPC574xB-C-G: 面向汽车电子、工业控制和网关应用的超高可靠性MCU

S32K汽车通用MCU

  • S32K1: S32K1汽车通用微控制器

电源管理

安全SBC

  • FS6500: 符合1级和0级安全标准的电源系统基础芯片，带有CAN灵活数据收发器

接口

汽车以太网交换机

  • SJA1105PQRS: SJA1105PEL/QEL/REL/SEL系列以太网交换机

汽车以太网PHY

  • TJA1102A: TJA1102A/TJA1102AS：双端口/单端口汽车以太网100BASE-T1 PHY收发器
  • TJA1100: 符合IEEE 100BASE-T1标准的汽车以太网PHY收发器

特征

设计特性

    • 作为A样本，如中央网关ECU，带有板载MPC5748G(176 LQFP)
    • 板载4 GB eMMC，支持安全OTA管理

微控制器(MCU)

  • 采用双Power Architecture®e200z4内核@ 160 MHz和单Power Architecture e200z2内核@ 80 MHz的32位MCU
  • 6 MB嵌入式闪存, 768 KB SRAM
  • 8个CAN FD(12个带SPI的扩展)，2个FlexRay，7个LIN
  • 2个AVB以太网(带交换机)

接口

  • 4个100Base-T1以太网
  • 1个100Base-TX以太网，适用于诊断(DoIP)/软件更新
  • 8个CAN/CAN FD (最高5 Mbps)
  • 2个FlexLIN / 1个RS232
  • 3个PWM / 2个模拟输入/ 2个高边开关关闭
  • JTAG调试

软件

  • AUTOSAR® OS和MCAL
  • S32 SDK裸机

功能安全

  • ISO 26262最高 ASIL B和AEC-Q100 2级MPC5748G MCU
  • ISO 26262 ASIL B S32K144，作为子MCU（提高此RDB的ASIL级别）
  • ISO 26262最高ASIL D安全电源SBC，具有可配置和可编程的输出，为内核处理器和各种外设提供电源
  • ISO 26262最高ASIL A和AEC-Q100 2级SJA1105Q 5端口第2层存储和转发以太网交换机，每个都可配置为MII、RMII、RGMII。支持AVB、TSN和确定性以太网。还支持端口镜像和VLAN
  • 完全符合汽车标准的TJA1100和TJA1102以太网PHY，带汽车级EMC/ESD的100 Mbps OABR PHY
  • TJA1043和TJA1044GT CAN PHY支持高达5 Mbps的CAN FD，具有睡眠/唤醒功能
  • 嵌入式硬件安全模块(HSM)，支持SHE和EVITA标准
  • 故障管理和复位逻辑电路

汽车电子

更多

购买选项

MPC5748G-GW-RDB-Image

点击展开

  • MPC5748G-GW-RDB
    正常供应

  • MPC5748G Secure Ethernet Gateway Reference Design.

  • $549.00 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
MPC5748G-GW-CBL-Image

点击展开

  • MPC5748G-GW-CBL
    正常供应

  • MPC5748G-GW-RDB functional cable, linking all pins out with MATEnet, UTP, and common single line wires.

  • 数量为 1
从分销商处购买
