AW-CM276MA-PUR Evaluation Board

AW-CM276MA-PUR

滚动图片以放大

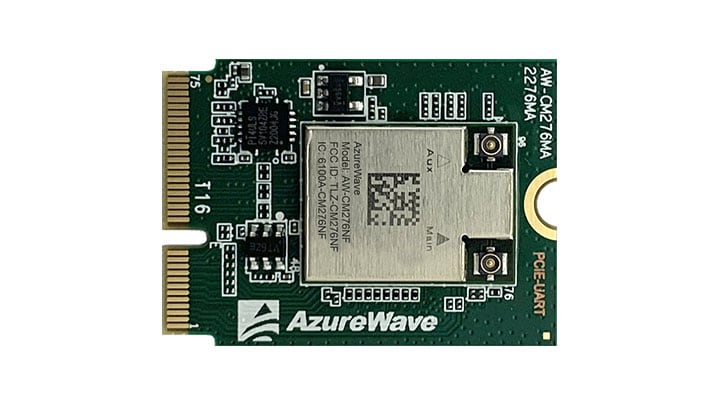

AW-CM276MA-PUR is M.2 2230 adapter board of AW-CM276NF, which supports 802.11ac 2x2 2.4 GHz/5 GHz with M.2 1216 form-factor. It has two antennas to support 2 (Transmit) x 2 (Receive) communications. The host interface supports PCIe, SDIO, Wi-Fi® and UART, SDIO and Bluetooth®.

支持的器件

无线连接

Wi-Fi® +蓝牙® + 802.15.4

  • 88W8997: 2.4/5GHz双频2x2 Wi-Fi® 5 (802.11ac) +Bluetooth® 5.3解决方案

Features

Wi-Fi

  • Wi-Fi 5 802.11a/b/g/n/ac 2x2

Bluetooth

  • Bluetooth 5

Interface

  • Wi-Fi for PCIe, SDIO and Bluetooth for UART, SDIO

Antenna Pin No.

  • 2 (Wi-Fi + Bluetooth)

Buy Options

Click to expand

  • AW-CM276MA-PUR

  • Azurewave AW-CM276MA-PUR enables evaluation and development of the AW-CM276NF 802.11a/b/g/n/ac 2.4GHz/5GHz M.2 module based on NXP's 88W8997 solution.

  • Kit Contains:

    • AW-CM276MA-PUR (with AW-CM276NF module on board)
    • PIFA Antenna

文档

快速参考恩智浦 文档类别.

筛选条件

1 文件

  • 数据手册

    AW-CM276MA-PUR Data Sheet

    /DOCS/EN/DATA-SHEET/AW-CM276MA-PUR_DS_DF_D_STD版本 DMar 29, 2021AW-CM276MA-PUR_DS_DF_D_STDEnglish
