AW-AM281SM Evaluation Board

AW-AM281-uSD

滚动图片以放大

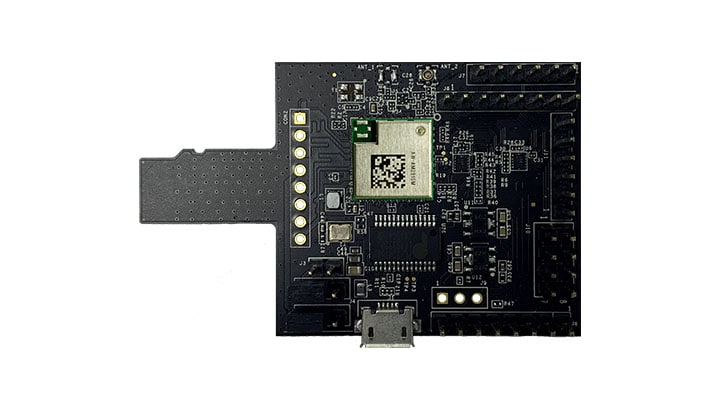

AW-AM281-uSD is the evaluation board of AW-AM281SM, which support 802.11a/b/g/n 1x1 2.4 GHz/5 GHz with 12x12 Stamp form-factor. It has one antenna to support 1 (Transmit) x 1 (Receive) communications. The host interface supports SDIO for Wi-Fi® and SDIO for Bluetooth®.

支持的器件

无线连接

Wi-Fi® +蓝牙® + 802.15.4

  • 88W8977: 2.4/5GHz双频1x1 Wi-Fi® 4 (802.11n) + Bluetooth® 5.2解决方案

Features

Wi-Fi

  • Wi-Fi 4 802.11a/b/g/n 1x1

Bluetooth

  • Bluetooth 5

Interface

  • Wi-Fi for SDIO and Bluetooth for SDIO

Antenna Pin No.

  • 1 (Wi-Fi + Bluetooth)

Buy Options

Click to expand

  • AW-AM281-uSD

  • Azurewave AW-AM281-uSD evaluation board enables evaluation and development of the AW-AM281SM 802.11a/b/g/n 2.4 GHz/5 GHz 12x12 LGA module based on NXP's 88W8977 solution.

  • Kit Contains:

    • AW-AM281-uSD (with AW-AM281SM module on board)
    • 75 mm, 20 contacts, 0.5 mm pitch FFC Cable
    • PIFA Antenna
