5G mMIMO预驱动放大器

BTS6305U
正常供应

  • 本页介绍的产品处于样品阶段。此处的产品技术规格和信息如有变更，恕不另行通知。如需了解更多信息和样品供货情况，请联系当地的销售代表或恩智浦授权代理商。

滚动图片以放大

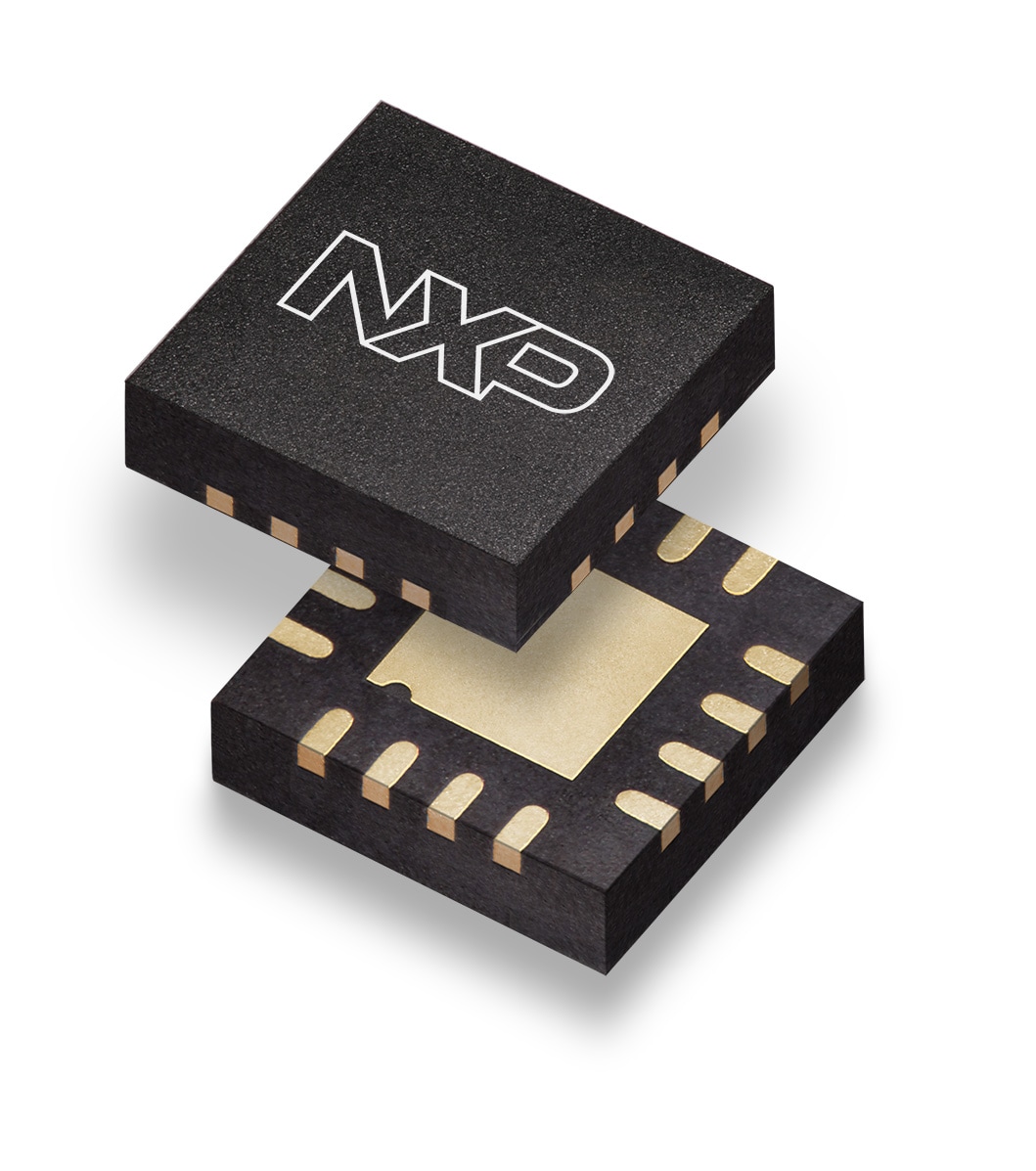

BTS6305U是一款宽带、高线性度的预驱动放大器，适用于5G mMIMO基础设施应用，具有快速开关功能以支持TDD系统。该放大器的设计工作频率为2.4 GHz至4.2 GHz。采用3 mm × 3 mm × 0.85 mm 16端子HVQFN封装。

该放大器在所有端子上均受ESD保护。

产品详情

功能

  • 高饱和输出功率Po(sat) = 29 dBm
  • 高功率增益Gp = 38 dB
  • 高线性性能ACLR = -44 dBc
  • 无条件稳定
  • 支持TDD系统的快速切换
  • 5 V单电源，静态电流80 mA
  • 小型16焊端无引脚封装3 mm x 3 mm x 0.85 mm
  • 所有引脚均提供ESD保护
  • 湿度灵敏度等级1
N true 0 PSPBTS6305Uzh 3 应用笔记 Application Note t789 1 数据手册 Data Sheet t520 1 用户手册 User Manual t1009 1 zh zh zh 数据手册 Data Sheet 1 1 9 English BTS6305U 2.3 GHz-4.2 GHz wideband high linearity pre-driver for 5G massive MIMO infrastructure applications and TDD systems. 1681334791286717890268 PSP 362.6 KB None None documents None 1681334791286717890268 /docs/en/data-sheet/BTS6305U.pdf 362552 /docs/en/data-sheet/BTS6305U.pdf BTS6305U documents N N 2023-04-12 BTS6305U Wideband High Linearity Pre-driver Amplifier Data Sheet /docs/en/data-sheet/BTS6305U.pdf /docs/en/data-sheet/BTS6305U.pdf Data Sheet N 980000996212993340 2023-08-09 pdf N en Jun 15, 2023 980000996212993340 Data Sheet Y N BTS6305U Wideband High Linearity Pre-driver Amplifier Data Sheet 应用笔记 Application Note 1 2 1.1 English Describes the design considerations of the evaluation board (EVB) for the BTS6305U and gives an overview of the typical performance as measured on the EVB. 1720125686332722318047 PSP 1.8 MB None None documents None 1720125686332722318047 /docs/en/application-note/AN13899.pdf 1816745 /docs/en/application-note/AN13899.pdf AN13899 documents N N 2024-07-04 BTS6305U Evaluation Board Application Note /docs/en/application-note/AN13899.pdf /docs/en/application-note/AN13899.pdf Application Note N 645036621402383989 2024-07-25 pdf N en Apr 15, 2024 645036621402383989 Application Note Y N BTS6305U Evaluation Board Application Note 用户手册 User Manual 1 3 1.1 English Describes the design considerations of the evaluation board (EVB) for the BTS6305U and gives an overview of the typical performance as measured on the EVB. 1720213662717701400433 PSP 1.5 MB None None documents None 1720213662717701400433 /docs/en/user-manual/UM11918.pdf 1457178 /docs/en/user-manual/UM11918.pdf UM11918 documents N N 2024-07-05 BTS6305U Evaluation Board Quick Start Guide /docs/en/user-manual/UM11918.pdf /docs/en/user-manual/UM11918.pdf User Manual N 309919593431037931 2024-07-05 pdf N en Apr 15, 2024 309919593431037931 User Manual Y N BTS6305U Evaluation Board Quick Start Guide false 0 BTS6305U downloads zh-Hans true 1 Y PSP Y Y 应用笔记 1 /docs/en/application-note/AN13899.pdf 2024-07-04 1720125686332722318047 PSP 2 Apr 15, 2024 Application Note Describes the design considerations of the evaluation board (EVB) for the BTS6305U and gives an overview of the typical performance as measured on the EVB. None /docs/en/application-note/AN13899.pdf English documents 1816745 None 645036621402383989 2024-07-25 N /docs/en/application-note/AN13899.pdf BTS6305U Evaluation Board Application Note /docs/en/application-note/AN13899.pdf documents 645036621402383989 Application Note N en None Y pdf 1.1 N N BTS6305U Evaluation Board Application Note 1.8 MB AN13899 N 1720125686332722318047 数据手册 1 /docs/en/data-sheet/BTS6305U.pdf 2023-04-12 1681334791286717890268 PSP 1 Jun 15, 2023 Data Sheet BTS6305U 2.3 GHz-4.2 GHz wideband high linearity pre-driver for 5G massive MIMO infrastructure applications and TDD systems. None /docs/en/data-sheet/BTS6305U.pdf English documents 362552 None 980000996212993340 2023-08-09 N /docs/en/data-sheet/BTS6305U.pdf BTS6305U Wideband High Linearity Pre-driver Amplifier Data Sheet /docs/en/data-sheet/BTS6305U.pdf documents 980000996212993340 Data Sheet N en None Y pdf 9 N N BTS6305U Wideband High Linearity Pre-driver Amplifier Data Sheet 362.6 KB BTS6305U N 1681334791286717890268 用户手册 1 /docs/en/user-manual/UM11918.pdf 2024-07-05 1720213662717701400433 PSP 3 Apr 15, 2024 User Manual Describes the design considerations of the evaluation board (EVB) for the BTS6305U and gives an overview of the typical performance as measured on the EVB. None /docs/en/user-manual/UM11918.pdf English documents 1457178 None 309919593431037931 2024-07-05 N /docs/en/user-manual/UM11918.pdf BTS6305U Evaluation Board Quick Start Guide /docs/en/user-manual/UM11918.pdf documents 309919593431037931 User Manual N en None Y pdf 1.1 N N BTS6305U Evaluation Board Quick Start Guide 1.5 MB UM11918 N 1720213662717701400433 true Y Products
