3400-3600MHz, 30dB, 10.5W平均值Airfast®功放模块

A5M35TG040-TC
正常供应

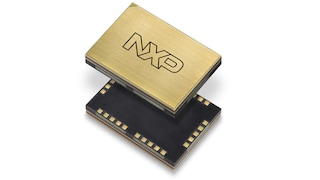

滚动图片以放大

A5M35TG040−TC是完全集成的Doherty功率放大器模块，适用于要求小规格、高性能的无线基础设施应用。它适用于mMIMO系统、室外小型小区和低功耗射频拉远应用。该成熟的LDMOS和GaN功率放大器专为TDD LTE和5G系统而设计。

产品详情

特性

  • 2级模块解决方案，包括作为驱动器的LDMOS集成电路和GaN末级放大器
  • 先进的高性能内部封装Doherty
  • 热通路与电气/焊接连接通路分离，以增强散热效果
  • 完全匹配（50欧姆输入/输出，直流阻塞）
  • 适用于复杂度较低的数字线性化系统
  • 减少存储效应，提高线性化误差向量幅度
  • 符合RoHS规范

射频性能表

3400–3600MHz

典型LTE性能：Pout=10.5W（平均值），VDC1=VDP1=5Vdc，VDC2=VDP2=48Vdc，1×20MHz LTE，输入信号PAR=8dB @ 0.01% CCDF。(1)

载波中心频率 增益(dB) ACPR(dBc) PAE(%)
3410MHz 30.5 –27.6 46.7
3500MHz 30.5 –30.2 –47.5
3590MHz 30.4 –32.8 47.9

1. 所有数据均使用焊接在恩智浦参考电路中的设备测量得出。

购买/参数

1 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

Frequency (Min) (MHz)

Frequency (Max) (MHz)

Supply Voltage (Typ) (V)

Peak Power (Typ) (dBm)

Peak Power (Typ) (W)

模具技术

A5M35TG040-TC
数据手册

正常供应

3400

3600

5, 48

49.4

87.1

GaN, LDMOS
