Mixed-Signal MCU for Automotive and Industrial Motor Control Applications
产品详情

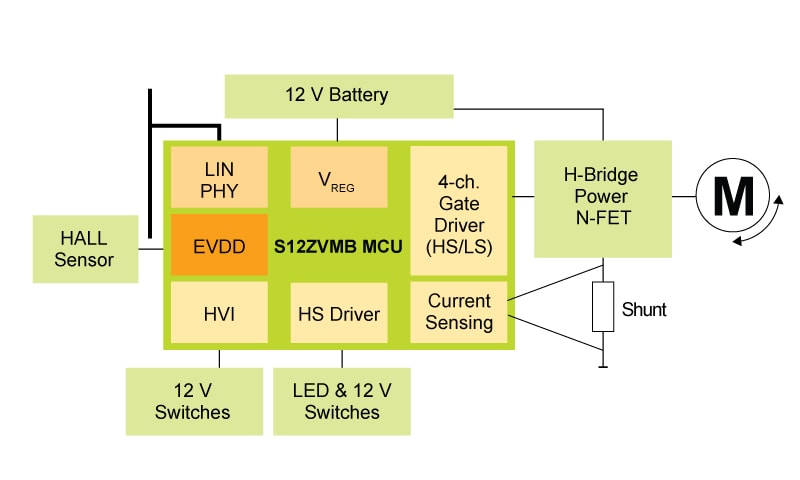

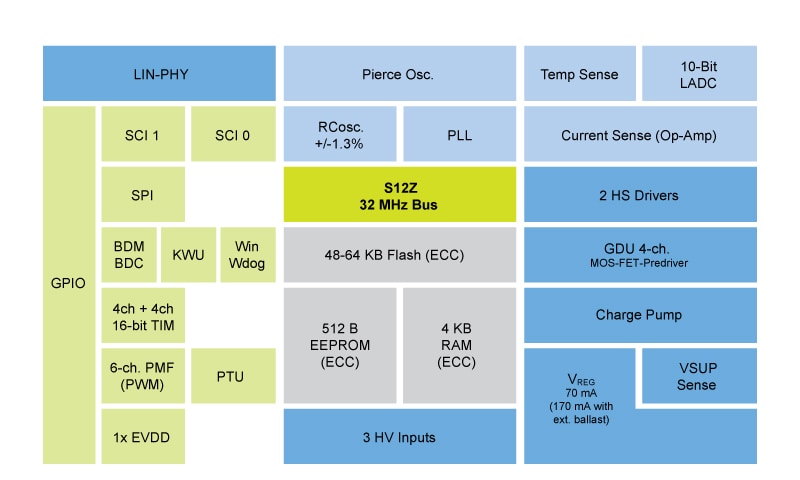

框图
Features
- S12Z core at 32 MHz bus speed
- Up to 64KB flash
- 512B EEPROM
- Up to 4 KB RAM
- LIN physical layer
- 12V voltage regulator
- H-Bridge MOSFET gate driver (4ch)
- 2 high-side drivers
- 3 high voltage inputs
- Op-Amp for current sensing
- Included in longevity program (15 years)
- Ultra-Reliable MCUs
SafeAssure Program
S12ZVMB Comparison Table
| Product Name | S12ZVMBA | S12ZVMB | ||
|---|---|---|---|---|
| Package | 64-LQFP | 48-LQFP | 64-LQFP | 48-LQFP |
| Flash memory (ECC) | 64/48kB | |||
| EEPROM (ECC) | 512B | |||
| RAM (ECC) | 4 KB | |||
| SCI / SPI | 2/1 | |||
| LIN-PHY | 1 | |||
| FET-predrive (GDU) | 2xHS, 2xLS; PWM-capable; 50nC total gate charge | 2xHS, 2xLS; not PWM-capable | ||
| HS-drivers | 2 | |||
| HVI | 3 | |||
| 10Bit ADC (ext) | 9ch (+HVI) | 5ch (+HVI) | 9ch (+HVI) | 5ch (+HVI) |
| 16Bit Timer | 4+4ch | |||
| PWM | 6ch PMF (PWM with Fault handling); 4ch routed to GDU; 2ch to GPIOs | |||
| Trigger | 1ch PTU (Programmable Triggering Unit; trigger between ADC & PWM) | |||
| EVDD (20mA source) | 1 | |||
| NGPIO (25mA sink) | 1 | |||
| GPIO | 23 | 15 | 23 | 15 |
| Temperature options (Ta) | up to 125°C | up to 150°C | up to 125°C | up to 150°C |
购买/参数
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
设计资源
硬件
快速参考恩智浦
板类型.
1-5 / 8 硬件
-

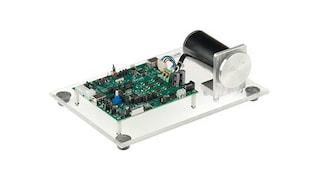

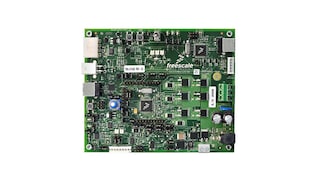

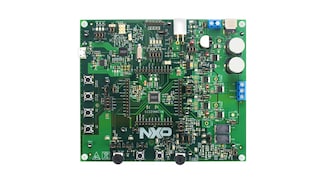

评估板和开发板S12ZVMB评估板亮点
-
