8位高性价比FL16/8 MCU
设计文件
收到完整的详细信息。 请参阅 eCad 文件中的产品足迹等。
紧凑列表
8-Bit General Purpose Enhanced Performance SV MCUs
The 8-bit MC9S08SV16/8 (SV16/8) family of microcontrollers (MCUs) with enhanced performance, system reliability and design flexibility to meet the tough design requirements of industrial applications. The S08SV family increases design flexibility with 30 GPIO pins and simplifies software design through an interrupt priority controller with nested interrupt capability.
产品详情

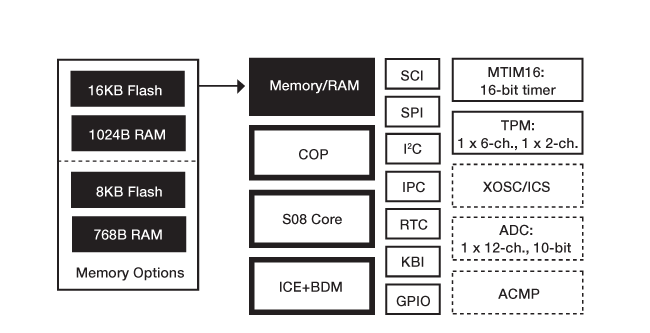

Features
8-bit HCS08 Central Processing Unit (CPU)
- Up to 20 MHz internal bus (40 MHz HCS08 core) frequency with 2.7V to 5.5V operation across temperature range of -40°C to +85°C
On-Chip Memory
- Up to 16K flash read/program/erase across entire operating voltage and temperature ranges
- Up to 1024 bytes random access memory (RAM)
- Security circuitry
Power-Saving Modes
- Two-low power stop modes, reduced-power wait mode
Clock Source Options
- Oscillator (XOSC) clock source options include oscillator, crystal or ceramic resonator
- Up to 20 MHz internal clock source (ICS) module
Peripherals
- Interrupt priority controller (IPC
- Analog-to-digital converter (ADC)
- 12-channel
- 10-bit resolution
- Timer/pulse-width modulator module (TPM)
- 1 x 6-channel
- 1 x 2-channel
- MTIM16—One 16-bit modulo timer with optional prescaler
- SCI module with optional 13-bit break, LIN extensions
- SPI module in 8-bit data length modes with a receive data buffer hardware match function
- I²C module capable of up to 100 kbps operation with maximum bus loading
- Analog comparator (ACMP) with option to compare to internal reference
- Real time counter (RTC)
Input/Output
- Up to 30 general purpose input/output (GPIO) pins
- one input-only pin
- one outputonly pin
- KBI—8-pin keyboard interrupt module
System Protection
- Watchdog computer operating properly (COP) module can be reset with option to run from dedicated 1 kHz internal clock source or bus clock
- Low-voltage detection with reset or interrupt, selectable trip points
- Illegal opcode detection with reset
- Illegal address detection with reset
- Flash block protection
Development Support
- Single-wire background debug interface
- Breakpoint setting capability
- On-chip in-circuit emulator (ICE) debug module
- two comparators
- nine trigger points
相关产品
购买/参数
1 结果
不包含 1 不推荐用于新设计
部件 | 订购 | 计算机辅助设计模型 | 状态 | 封装类型 | 封装端接数 | Flash (kB) | RAM (kB) | 内核类型 | 运行频率[最高]（MHz） | Bus Frequency (typ) (MHz) | I2C | SPI | 电源电压[最小]（V） | 电源电压[最大]（V） | GPIO | Ambient Operating Temperature (Min to Max) (℃) | SCI |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
使用寿命终止 | LQFP32 | 32 | 16 | 1 | S08 | 20 | 20 | 1 | 1 | 2.7 | 5.5 | 30 | -40 to 85 | 1 |
