8 位带LCD驱动器的 LE 微控制器

RS08LE
停产

带LCD驱动器的恩智浦RS08微控制器(MCU)是高度集成的产品，成本效益极高。MC9RS08LA8 和 MC9RS08LE4 微控制器面向小型设备、医疗设备及其他工业和多市场应用。LA 和 LE系列包含一个大型分段(8x 模式) 驱动器和一个集成电荷泵，具有高度的设计灵活性，提供真正的片上系统 (SoC)功能。

框图

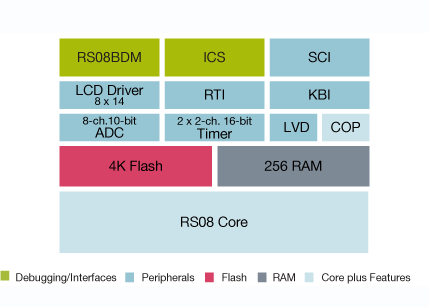

Freescale RS08LE Microcontroller Block Diagram

Freescale RS08LE Microcontroller Block Diagram
获取框图PDF

特征

8位RS08中央处理器单元(CPU)

  • 2.7V条件下 RS08 CPU 频率高达10 MHz (总线频率)，最小指令执行时间100 ns
  • 附加了 BGND 指令的 HCS08指令集子集

LCD驱动器和内部电荷泵

  • 集成LCD驱动支持标准3V和5V LCD显示器
  • 可配置 8 x 14 或 4 x 18 段式显示器
  • 能够在停止模式时运行
  • 前板(FP)和背板(BP)重新分配
  • LCD驱动器引脚可与通用IO和其他功能复用

片上存储器

  • 在整个工作电压和温度范围内闪存为 4 KB
  • 2.7V 至 5.5V RAM

外设

  • 模数转换器(ADC)
    • 2.5 µs转换时间
    • 自动比较功能
    • 内置温度传感器
    • 内部带隙参考通道
    • 停止模式可运行
    • 8 通道，10 位分辨率
  • 定时器
    • 两个 2 通道可选输入捕捉
    • 输出比较
    • 每个通道上缓冲沿对齐或中心对齐PWM
  • 串行通信接口(SCI)—模块提供异步通信、13 位中断选项、灵活的比特率发生器、双缓冲的接受和发送以及可选的 H/W 奇偶检验和生成
  • 模拟比较器可选择在比较器输出的前沿、后沿或前后沿产生中断；将选项与固定的内部带隙参考电压比较；可以选择将输出发送到 TPM 模块（只限 LA8）
  • 串行外设接口（SPI ）— 一个模块全双工或单线双向；双缓冲的发送和接收；主模式或从模式；MSB优先或LSB优先切换

输入/输出

  • 26个通用输入/输出(GPIO)引脚，其中一个引脚只输入，一个引脚只输出。
  • 多达 8 个键盘中断引脚(KBI)，极性可选

系统保护

  • 计算机正常运行(COP)看门狗模块复位，可选择采用专用的1 kHz内部时钟源来运行
  • 带复位或中断功能的低电压检测
  • 带复位功能非法操作码和非法地址检测
  • 闪存保护

开发支持

  • 单线后台调试接口
  • 断点功能

更多
