8位MCU，带集成Vreg、步进电机、LIN Phy

MM908E626 正常供应

恩智浦MM908E626是一个集成型单封装解决方案，包括一个带有SMARTMOS®模拟控制IC的高性能HC08 MCU。

  • HC08包括闪存、定时器、增强串行通信接口、ADC、SPI和一个内部时钟发生器模块
  • 模拟控制芯片提供完全受保护的H桥输出、稳压器、自治看门狗和本地互连网(LIN)物理层
  • 该单封装解决方案和LIN一起提供优化的应用性能调节和节省空间的PCB设计
  • 非常适合温度控制和灯光亮度调节等汽车步进电机应用

产品详情

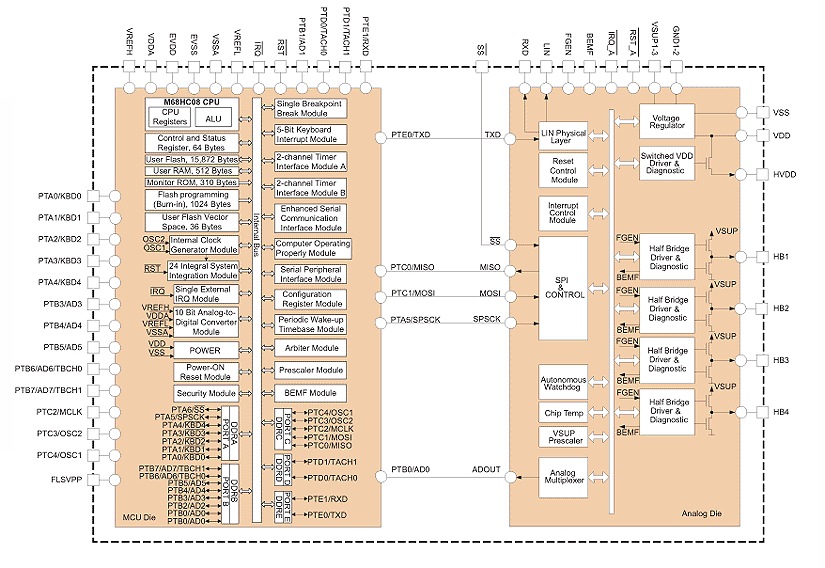

框图

MM908E626 Block Diagram

MM908E626 Block Diagram
获取框图PDF

特征

  • 高性能M68HC08EY16内核
  • 16 KB片上闪存
  • 512字节RAM
  • 内部时钟生成模块
  • 两个两通道16位定时器
  • 10位模数转换器
  • 4个低导通电阻半桥输出
  • 13微控制器I/O
  • 本产品包含在恩智浦产品长期供货计划中，自推出后至少保证15年供货
