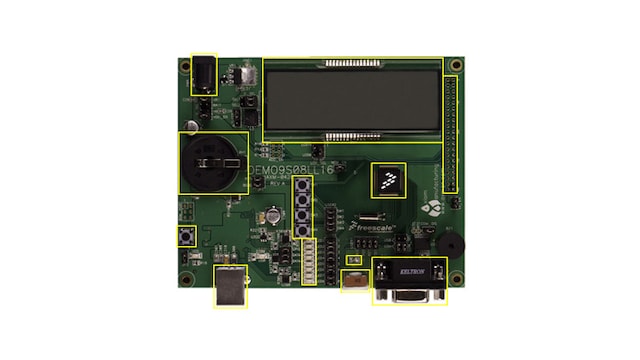

S08LL Demonstration Board
The cost-effective DEMO9S08LL16 demonstration kit contains everything you need to develop and evaluate application code. The integrated USB multilink allows you to communicate with the board and target device with only a USB cable.
产品详情
特征
Microcontroller
- MC9S08LL16, 64 LQFP
Connectivity
- Integrated P&E USB-BDM
- 40-pin MCU I/O connector
- 2.0 mm barrel connector
- BDM_PORT (not installed)
- USB connector
- DB9 connector
Power Management
- On-board +5 V regulator
- Battery holder for Li-ion battery
- Power input selection jumpers
User Components
- Five push switches; four Users, one Reset
- 10 LED Indicators; eight Users, VDD, USB
- 5 K ohm POTs w /LP filter
- Light sensor w/ LP filter and Op Amp
- User option jumpers to disconnect peripherals
