8位MCU，带集成Vreg、HSS、中继驱动器，LIN

MM908E624
正常供应

恩智浦MM908E624是一款高度集成的单封装解决方案，包括一个带有SMARTMOS®模拟控制IC的高性能HC08 MCU。

  • HC08包括闪存、定时器、增强串行通信接口、ADC、SPI和一个内部时钟发生器模块
  • 模拟控制芯片提供带有诊断功能的3个高边输出、稳压器、看门狗、运算放大器和本地互连网(LIN)物理层
  • 高性价比的解决方案，在LIN架构中通过继电器驱动负载
  • 特别适合使用继电器的汽车高电流电机应用控制(例如车窗升降器、风扇和天窗等)

产品详情

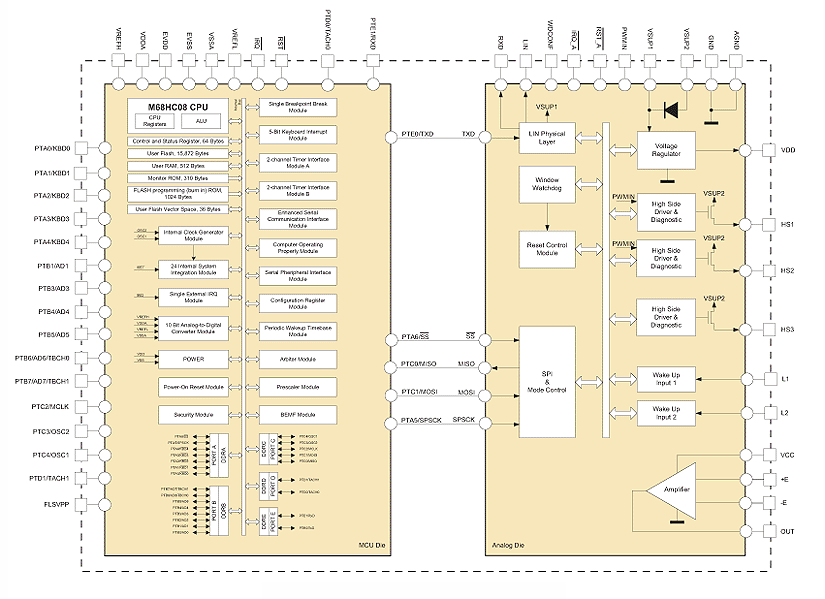

框图

MM908E624 Block Diagram

MM908E624 Block Diagram
获取框图PDF

特征

  • 高性能M68HC08内核
  • 16 KB片上闪存
  • 512字节RAM
  • 两个双通道16位定时器
  • 10位模数转换器(ADC)
  • LIN物理层接口
  • 低压降稳压器
  • 3个高边输出(继电器驱动器和灯泡)
  • 两个任意键唤醒输入
  • 16个微控制器I/O
  • 本产品包含在恩智浦产品长期供货计划中，自推出后至少保证15年供货

购买/参数

2 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

预算报价（不含税）

封装类型

封装端接数

MM908E624ACPEW
数据手册

正常供应

1K @ CNY37.34

SSOP54

54

MM908E624AYPEW
数据手册

正常供应

1K @ CNY39.99

SSOP54

54
